Key Features
Cordless Router PowerThe brushless 2-1/4 peak HP motor gives this plunge router the muscle for edge profiles, grooves, and deeper cuts without dragging a cord around the bench or jobsite. Control the CutVariable speed from 11,000 to 23,000 RPM plus constant speed under load helps you match bit speed to the work so the cut stays cleaner and easier to manage. Cleaner, Safer RoutingIntegrated dust collection with AIRLOCK compatibility helps keep the cut line visible, and the anti-rotation system adds a layer of protection if the tool twists excessively.
Overview

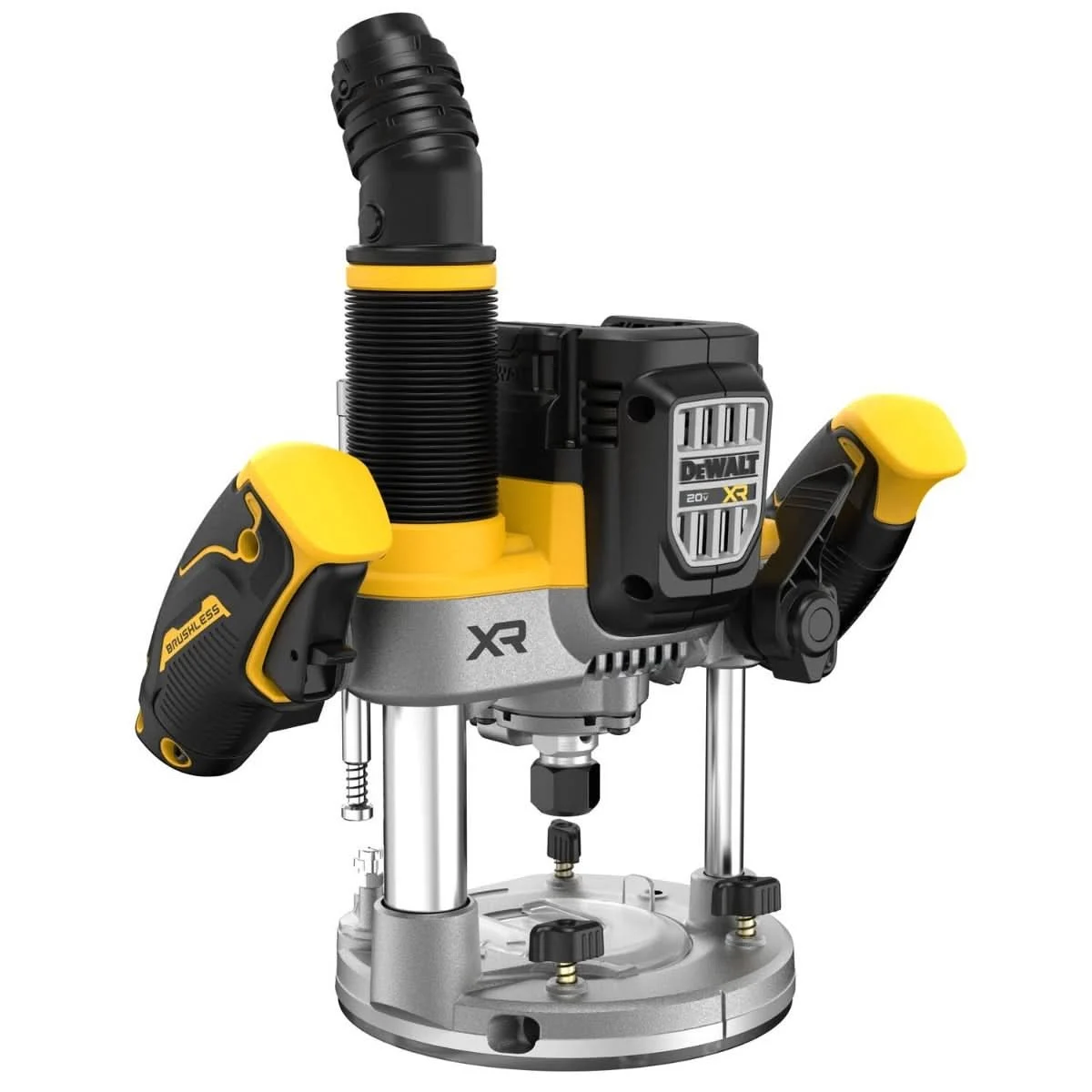

The DeWALT DCW620B 20V MAX XR 2-1/4 Peak HP Plunge Router is a cordless plunge router built for serious routing work without the drag of a power cord. This is a plunge router designed for edge profiling, groove cutting, mortising, and template routing. Model Number: DCW620B. If you want a jobsite-friendly router that can move from bench work to installed material without hunting for an outlet, this is the kind of tool that makes sense.
What matters here is not just that it is cordless, but that it is a dedicated plunge router with enough output to handle router bits up to 2-1/2 in. in diameter. That gives it real range for trim work, joinery, dados, grooves, and larger profile bits that smaller cordless routers can struggle with. DeWALT backs that up with a 2-1/4 peak horsepower brushless motor and a variable speed range of 11,000 to 23,000 RPM, so you can slow it down for larger bits and keep better control when the cut gets demanding.
The depth adjustment setup is built for actual use, not showroom talk. You get a 3-position adjustable turret stop, a tool-free depth adjustment system, a depth stop, micro-fine depth stop adjuster, and micro-fine height adjuster. In plain terms, that means faster setup when you are sneaking up on a finished depth and less messing around when you need repeatable plunge cuts. The tool-free plunge lock lever also helps because you can engage or release it without changing your grip.
On a real bench or in the field, visibility and cleanup matter almost as much as power. The dual LED lights help you see the bit and layout line, and the integrated dust collection is more than an afterthought. This router is AIRLOCK compatible, and DeWALT states it can collect up to 97% of dust when cutting grooves in particleboard with the specified battery and extractor setup. For anyone routing indoors, in a finished space, or in a shop where cleanup time costs money, that is a practical feature.
DeWALT also built in its PERFORM & PROTECT anti-rotation system. If the router senses excessive rotational motion, it shuts down the tool, and a red LED indicates the system has engaged. That is a useful feature on a router this capable, especially when you are making heavier plunge cuts or working with larger bits where tool reaction can get your attention fast.
As part of the DeWALT 20V MAX platform, the DCW620B fits shops and crews already running DeWALT cordless tools and batteries. It is sold as a tool only, so batteries and charger are separate, but the upside is simple: if you already own 20V MAX packs, this router drops right into the system. DeWALT also calls out runtime of up to 256 linear ft. routing 5/8 in. roundovers in pine on a single charge when used with the DCBP520 battery.
The included hardware also makes this a more complete bare tool than some routers in the category. You get both 1/4 in. and 1/2 in. collets, a wrench, dust accessories, guide bushing, centering cone, and two sub-bases. That matters because it gives you flexibility right away for common router bit shanks and common setup tasks without ordering extra pieces first.
Who should buy it? This router makes the most sense for trim carpenters, cabinet installers, finish carpenters, remodelers, shop woodworkers, and serious DIY users who want plunge-router capability in a cordless format. If your work involves cutouts, hinge mortises, edge details, dados, grooves, or template routing and you are already on DeWALT batteries, the DeWALT DCW620B 20V MAX XR 2-1/4 Peak HP Plunge Router is a strong fit.
Built to Move Without the Cord
This DeWALT plunge router is built for users who want full plunge-router capability with cleaner mobility around a bench, shop, or punch-list site. It stays compact enough to handle, but it is not a trimmed-down light-duty unit.
- Brushless motor rated at 2-1/4 peak HP
- Balanced design at 11.5 in. high and 8 lbs. tool only
- Accepts both 1/4 in. and 1/2 in. shank router bits
What’s in the Box
- (1) DeWALT DCW620B 20V MAX XR 2-1/4 Peak HP Plunge Router
- (1) 1/4 in. Collet with nut
- (1) 1/2 in. Collet with nut
- (1) Wrench
- (1) Dust cap
- (2) Dust shields
- (1) Dust port with AIRLOCK compatibility
- (1) Chip collector
- (1) Centering cone
- (2) Sub-bases
- (1) 30 mm guide bushing
Battery and charger are sold separately.
At a Glance
2-1/4Peak HP 11,000-23,000No-Load RPM 256 ft.Routing Runtime Claim 2-1/2 in.Max Bit Diameter
Key Specifications
| Voltage (V) | 20 V |
|---|---|
| Power Source | Battery |
| Motor Type | Brushless |
| No-Load Speed (RPM) | 11,000-23,000 RPM |
| Max Bit Diameter | 2-1/2 in. |
| Collet Sizes | 1/4 in. and 1/2 in. |
| Height | 11.5 in. |
| Weight (lbs) | 8 lbs. tool only |
Compatibility
Battery PlatformWorks on the DeWALT 20V MAX battery platform. DeWALT cites runtime using the DCBP520 battery, sold separately. Dust ExtractionIntegrated dust collection is AIRLOCK compatible. DeWALT cites dust collection performance with the DWV015 dust extractor, sold separately. Bit Shank FitIncludes 1/4 in. and 1/2 in. collets, so it accepts common router bits in both standard shank sizes.
Built For
Finish Carpentry Cabinet Installation Woodworking Remodeling Template Routing Edge Profiling Groove Cutting Mortising
Pro Tip
When you step up to larger profile bits, drop the speed with the variable speed dial before you start the cut. That is the right way to take advantage of the router’s 2-1/2 in. bit capacity and keep the tool smoother and easier to control.
Warranty & Support
3 Year Limited Warranty, 1 Year Free Service, and 90 Day Satisfaction Guarantee.
Tool Nut’s Take
Tool Nut’s Take
DeWALT DCW620B 20V MAX XR 2-1/4 Peak HP Plunge Router Means Real Router Capability, Not a Compromise
If you want plunge-router performance on the DeWALT cordless platform, this is the one that finally feels built for serious routing instead of light trim-only work.
- Who it’s for: Woodworkers, finish carpenters, cabinet installers, and remodelers who want a cordless plunge router that can handle both detail work and bigger profile cuts.
- Why it stands out: The big win is the mix of 2-1/4 peak HP, support for 1/4 in. and 1/2 in. bits, strong dust collection options, and the anti-rotation system. That is a solid package for a cordless router.
- Worth knowing: It is sold as a bare tool, so plan on bringing your own battery and charger. If you are already on DeWALT 20V MAX, that is no big deal. If not, factor that into the buy.
Common Questions
- Is this a fixed-base router or a plunge router? It is a dedicated plunge router.
- What size router bits does it accept? It includes 1/4 in. and 1/2 in. collets and can handle bits up to 2-1/2 in. in diameter.
- Does it have variable speed? Yes. The no-load speed range is 11,000 to 23,000 RPM, with constant speed under load.
- Does it support dust extraction? Yes. It has integrated dust collection and AIRLOCK compatibility.
- Does the battery come with the tool? No. This is a tool-only version, so the battery and charger are sold separately.
