Key Features
Two Ways to ClampUse the trigger for fast setup and up to 300 lbs of holding force, then turn the screw handle when the job needs more pressure up to 825 lbs. That gives you speed first, then extra force when fit-up really matters. Clamp or SpreaderThe rapid switch function lets this hybrid clamp change from clamping to spreading without wasting time hunting for another tool. Handy when you are fitting cabinets, trim, fixtures, or rough assemblies. Extra Reach OptionThe DEWALT ToughSeries 12-in. Hybrid Clamp can be coupled to another matching hybrid clamp at the threaded bar locations for added length. That gives you more flexibility for larger glue-ups and awkward workpieces.
Overview

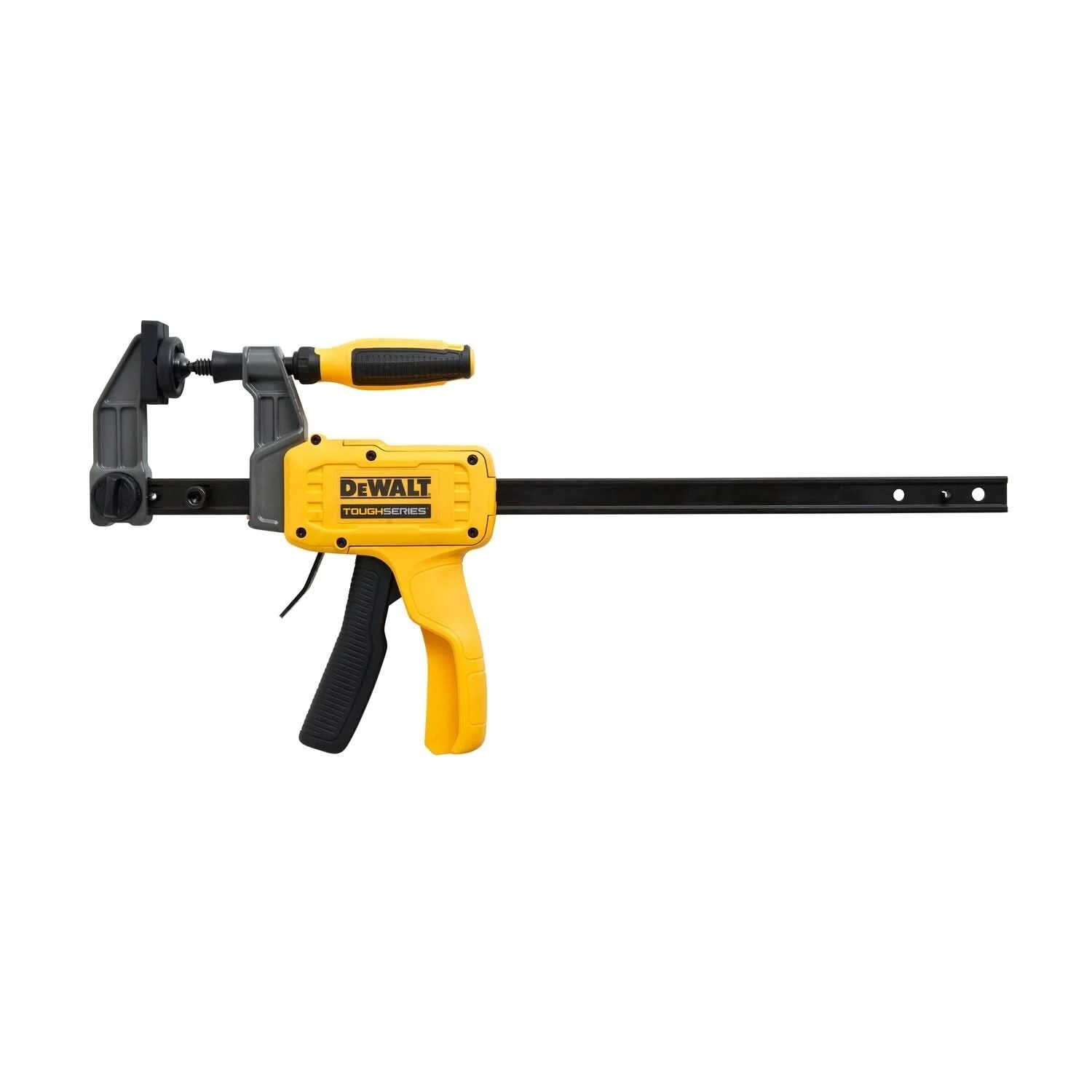

The DEWALT ToughSeries 12-in. Hybrid Clamp, model DWHT83600, is built for users who want the speed of a trigger clamp with the added force of a screw clamp in one tool. This is a hybrid clamp designed for workholding, assembly, glue-ups, and spreading tasks where fast positioning matters but extra pressure can make the difference. If you bounce between woodworking, jobsite fit-up, and general fastening and assembly work, this clamp covers more ground than a basic one-mode trigger clamp.
The big story here is the two-stage clamping approach. The trigger handle gives you quick one-handed positioning and up to 300 lbs of holding force, which is useful when you are lining up parts, holding trim in place, or pulling pieces together before final adjustment. When you need more squeeze, the screw handle can raise holding force up to 825 lbs. That means you are not giving up convenience to get more pressure on the workpiece.
DEWALT also made this clamp more versatile than a standard bar clamp by letting it switch rapidly between clamp and spreader modes. That matters when you are installing material inside a cabinet opening, pushing components apart during fit-up, or handling jobs where the direction of force changes from one step to the next. Instead of reaching for a second tool, you can reconfigure this one and keep moving.
For awkward material, the jaw design matters just as much as the force rating. Product imagery shows grooved jaws intended to hold pipe and irregular-shaped surfaces more securely. In real use, that helps when a flat pad alone would want to walk off the material. It makes this clamp more useful for mixed work than a basic clamp meant only for flat stock.
The bar also includes two threaded coupling locations so two matching hybrid clamps can be joined together with the provided fasteners for additional length. That is a practical feature for larger panels, wider assemblies, or any setup where a 12-inch opening is not enough. DEWALT is clear that both provided fasteners must be used when coupling clamps, which tells you this feature is meant to be used as a real extension option, not a workaround.
At about 2.48 to 2.5 lbs, the DWHT83600 has enough mass to feel solid without becoming annoying to reposition all day. It is sold as an individual clamp with a 12-inch maximum opening and a trigger-style main handle. The through-hole in the screw handle, noted in supplementary product data, gives you the option to use a screwdriver for added torque when the job needs a little more tightening leverage.
Who should buy it? This clamp makes the most sense for carpenters, woodworkers, remodelers, cabinet installers, and serious DIY users who want one clamp that can handle quick holding, stronger clamping, and spreading work without filling the bench with specialty versions. If you mainly do light-duty craft work, it may be more clamp than you need. If you regularly need fast setup with the option for serious pressure, this one earns its keep.
More Force When the Joint Fights Back
Some jobs need fast positioning. Others need more pressure after everything is lined up. This hybrid clamp handles both without making you switch tools halfway through the setup.
- Trigger handle delivers up to 300 lbs of holding force for quick setup
- Screw handle increases force up to 825 lbs when more pressure is needed
- 12-inch maximum opening covers a wide range of everyday clamping tasks
Built to Do More Than Flat Stock
This is not just a basic trigger clamp for holding two flat boards together. The design gives you more ways to work, especially when the material is awkward or the opening needs to be changed into a spreading setup.
- Rapid switch changes the tool from clamp to spreader
- Grooved jaw design is intended to hold pipe and irregular surfaces more securely
- Two threaded bar locations allow coupling to another matching hybrid clamp for added length
What’s in the Box
- (1) Clamp
Key Specifications
| Product Type | Trigger Clamp |
|---|---|
| Maximum Opening | 12 in |
| Trigger Holding Force | 300 lbs |
| Screw Handle Holding Force | 825 lbs |
| Handle Type | Trigger |
| Weight | 2.48 lbs |
| Piece Count | 1 |
| Warranty | Limited Lifetime Warranty |
Built For
Woodworking Carpentry Remodeling Cabinet Installation Glue-Ups Assembly Work Pipe Holding DIY / Hobbyist
Pro Tip
Use the trigger to bring the workpieces together fast, then finish with the screw handle instead of over-squeezing the trigger. You will get better control over final pressure, especially on glue-ups and parts that want to shift at the last second.
Warranty & Support
Limited Lifetime Warranty.
Tool Nut’s Take
Tool Nut’s Take
DEWALT ToughSeries 12-in. Hybrid Clamp is the smart pick when one clamp needs to do more
This is the kind of clamp that makes sense for guys who are tired of choosing between fast setup and real clamping pressure.
- Who it’s for: Carpenters, woodworkers, remodelers, installers, and serious DIY users who need a clamp for assembly, glue-ups, and occasional spreading work.
- Why it stands out: The trigger gets you moving quickly, the screw handle brings the force up to 825 lbs, and the clamp-to-spreader conversion adds versatility you will actually use.
- Worth knowing: This is sold as a single clamp, and the coupling feature only pays off if you have another matching hybrid clamp and use both provided fasteners when joining them.
Common Questions
- Is this a clamp or a spreader? It can do both. The DWHT83600 has a rapid switch that lets it change between clamp and spreader modes.
- How much holding force does it have? The trigger handle is rated for up to 300 lbs of holding force, and the screw handle can increase that up to 825 lbs.
- What is the maximum opening? This clamp has a 12-inch maximum opening.
- Can it be extended for longer reach? Yes. Two matching hybrid clamps can be coupled together at the threaded bar locations using the provided fasteners for additional length.
