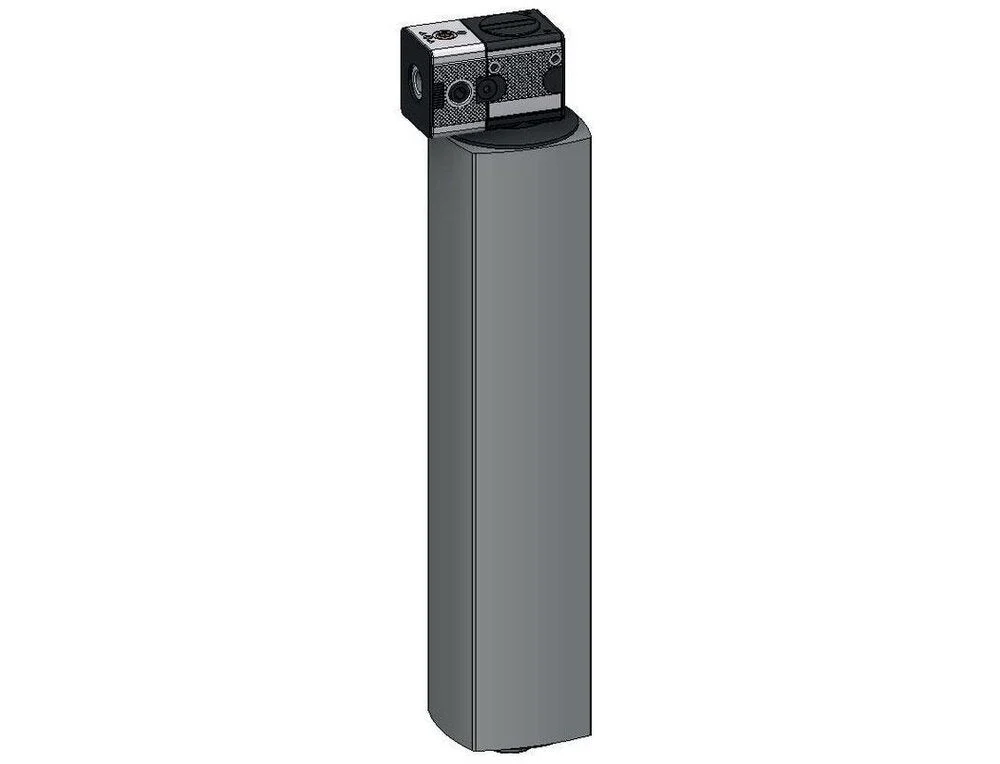

Diaphragm Dryer 1/4” 350 l/min Mutifix

This is a diaphragm air dryer with a G 1/4 inch connection port. The maximum flow rate is 350 l/min. It is used to remove water in compressed air directly at the application. Before reaching the diaphragm dryer, air must pass through a fine filter. Depending on the size and pressure of the diaphragm dryer, it has its own air flow rate. The input pressure range is 4 – 12 bar (58 – 174 psi).

Specifications

Connection size : 1/4 inch
Max flow rate (l/min) : 350
Max. pressure difference at 20 °C (bar) : 12
Material : Zinc die-cast
Min pressure (bar) : 4
Connection type : Inner thread cylindrical BSPP-G
Model : Multifix 1
Min temperature (°C) : -10
Max temperature (°C) : 60
Length (mm) : 48
