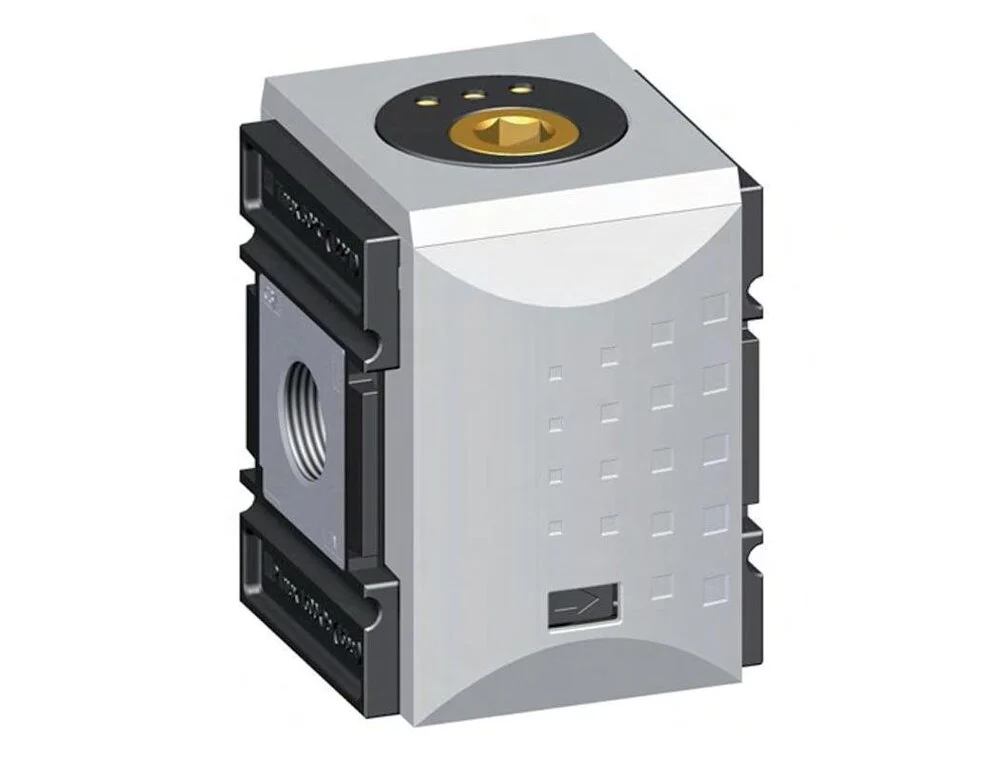

This is a compressed air distributor. It has 1 inlet and 2 outlet connections of G 3/4 inch. It can be used as an intermediate distributor for varying compressed air qualities. The maximum flow rate is 18000 l/min.
Specifications
Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : PA 66
Number of branches : 2
Max flow rate (l/min) : 18000
Max temperature (°C) : 50
Model : Futura 4
Article compression class : PN 16
Connection 3 Type : Inner thread cylindrical BSPP-G
