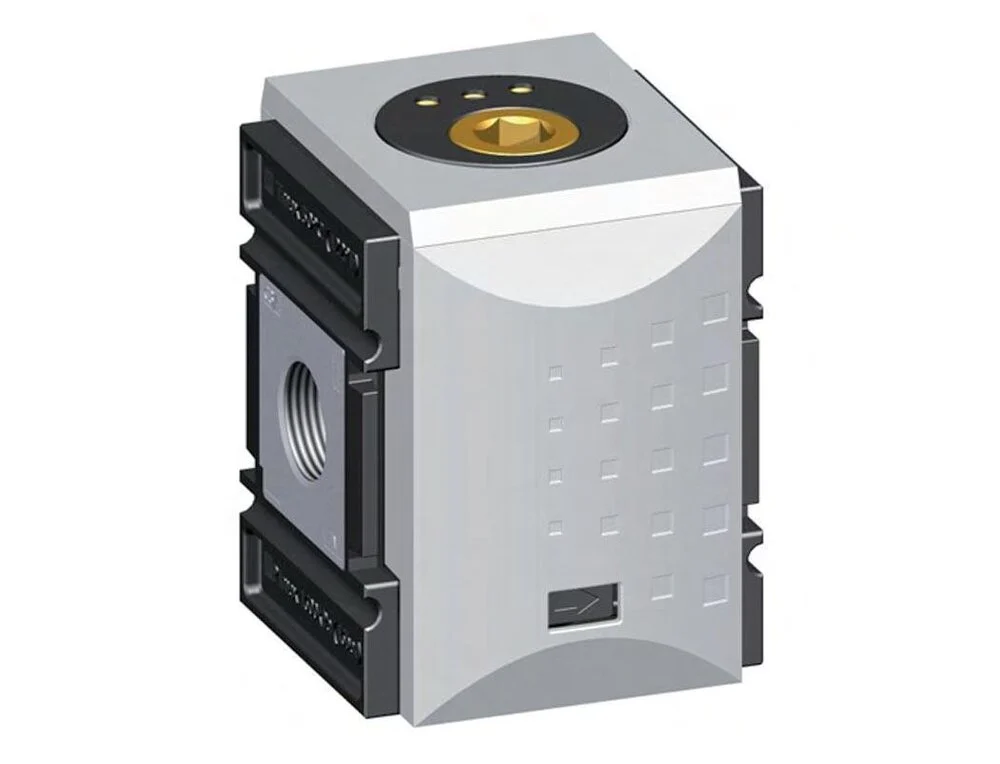

Distributor G3/4 18000 l/min with Pressure Switch Futura 4

This is a compressed air distributor with pressure switch. It has 1 inlet and 2 outlet connections of G 3/4 inch. It can be used as an intermediate distributor for varying compressed air qualities. The maximum flow rate is 18000 l/min. The pressure switch installed at connection B. Pressure switch has settings range: 0.2 – 16 bar, voltage DC: 12 – 30 V, max. 3 A/90 W, voltage AC: 12 – 250 V, max. 5 A/750 VA, degree of protection: IP 65 and plug DIN-A (4-pin).

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : PA 66
Distributor feature : With pressure switch
Number of branches : 2
Max flow rate (l/min) : 18000
Max temperature (°C) : 50
Model : Futura 4
Article compression class : PN 16
Connection 3 Type : Inner thread cylindrical BSPP-G
