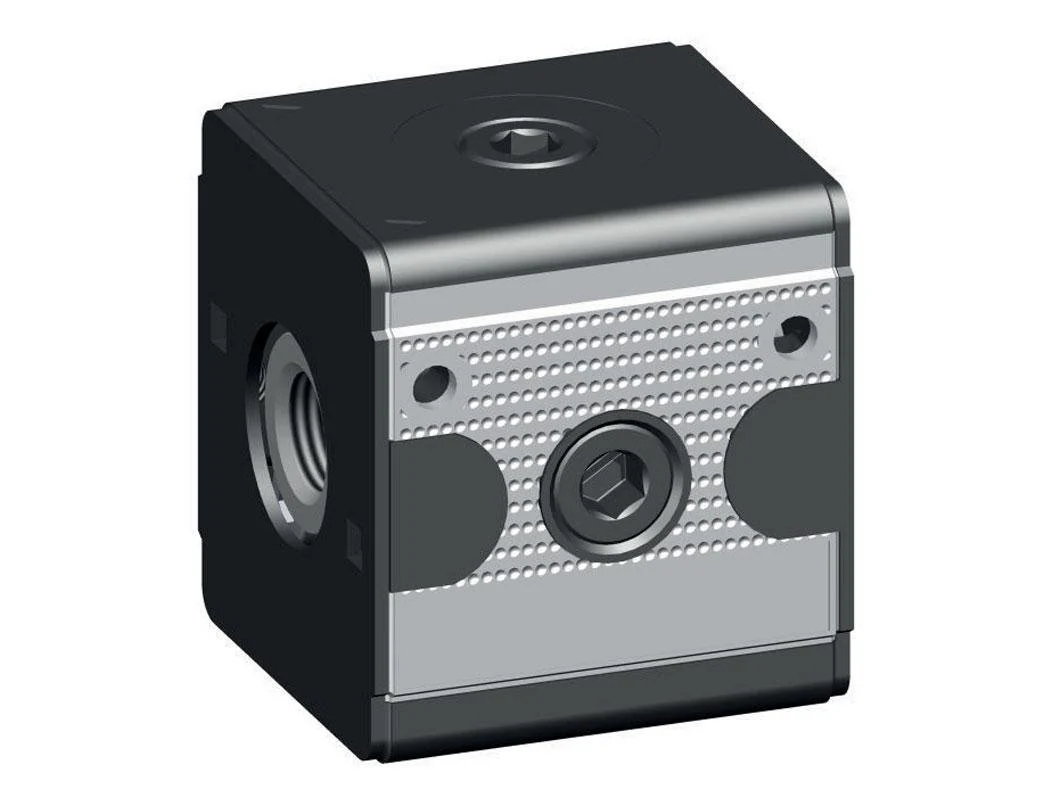

Distributor G3/8 700 l/min with Check Valve Multifix 1

This is a compressed air distributor with integrated check valve. It has 1 inlet and 4 outlet connections of G 3/8 inch and 1/4 inch. It can be used as an intermediate distributor for varying compressed air qualities. The maximum flow rate is 700 l/min.

Specifications

Thread : 3/8 inch
Thread (smaller) : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Zinc die-cast
Min pressure difference (bar) : 0.1
Distributor feature : With check valve
Number of branches : 4
Max flow rate (l/min) : 700
Max temperature (°C) : 60
Model : Multifix 1
Article compression class : PN 16
Connection 3 Type : Inner thread cylindrical BSPP-G
