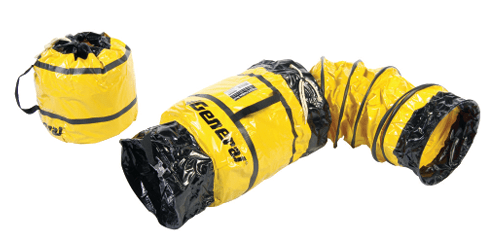

8.0 inch diameter inlet and outlet. Certified by Canadian Standards Association (CSA) for use in National Electric Code Class I Group D, Class II Group G and Class III hazardous location atmospheres and non-hazardous atmospheres. Less statically conductive duct.
Specifications:
POWER SOURCE
Type: .33 HP (.25 Kw), 1725.0 RPM, 60 HZ, 115 VAC, single phase, explosion-proof, non-vented (TENV), electric motor
Speed Control: Single Speed
BLOWER
Type: Radial
Material: Cast aluminum
Wheel Type: Steel, multi-vane
Size: 8.0 inch (203.2 mm) Nominal Diam. inlet/Outlet
GENERAL
Mounting: Rubber
Type: Anti-Vibration
Weight: 73.0 lbs (33.1 kg)Power Cord Type: Flexible Type, 14-3 AWG
Power Cord Connection: Male, NEMA 5-20P Configuration
DIMENSIONS
Height: 19.9 inches (505.5 mm)Length: 18.9 inches (480.1 mm)Width: 15.4 inches (391.2 mm)
FLOW RATES
Free Air: 1277.4 CFM (336.2 CMM)
One 90 Degree Bend: 738.0 CFM (20.9 CMM)
Two 90 Degree Bends: 578.8 CFM (16.4 CMM)
