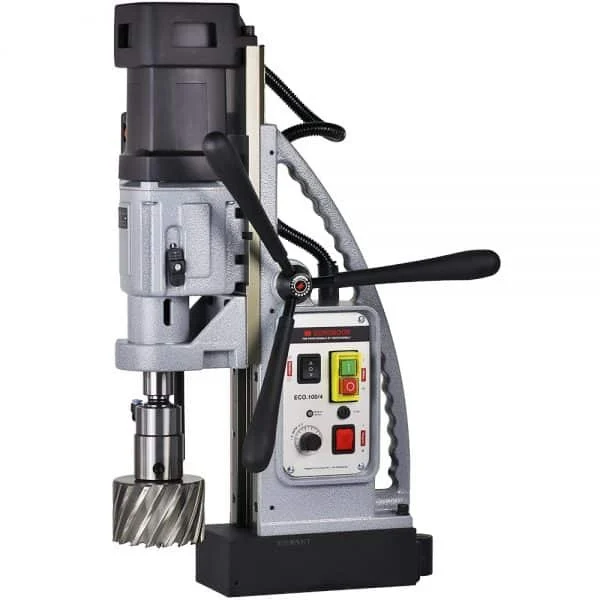

The Euroboor ECO.100/4 magnetic core drilling machine cuts holes up to Ø 4” (100 mm) and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 17.3 A (1900 W) motor with a four-speed gearbox. The ECO.100/4 drilling machine benefits from a clockwise and counterclockwise rotating functionality and electronic speed adjustment.
| Annular cutting | Ø 7/16″ – 4″ |
| Twist drilling | Ø 1/16″ – 1 1/4″ |
| Countersinking | Ø 3/8″ – 4 1/8″ |
| Tapping | Ø 1/8” – 1 3/16” |
| Length | 14 3/8″ |
| Width | 12 3/16″ |
| Height | 20 1/16″ – 27 15/16″ |
| Stroke | 10 1/4″ |
| Weight | 58.4 lbs* |
| Magnet (l x w x h) | 8 11/16″ x 4 5/16″ x 2 1/2″ |
| Magnetic force | 6615 lbs |
| Motor power | 17.3 A |
| Total power | 18.6 A |
| Speed (no load) | (I) 42 – 110 rpm (II) 65 – 190 rpm (III) 140 – 400 rpm (IV) 220 – 620 rpm |
| Speed (load 17.3 A) | (I) 85 rpm (II) 152 rpm (III) 270 rpm (IV) 480 rpm |
| Spindle (Weldon) | MT3 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
