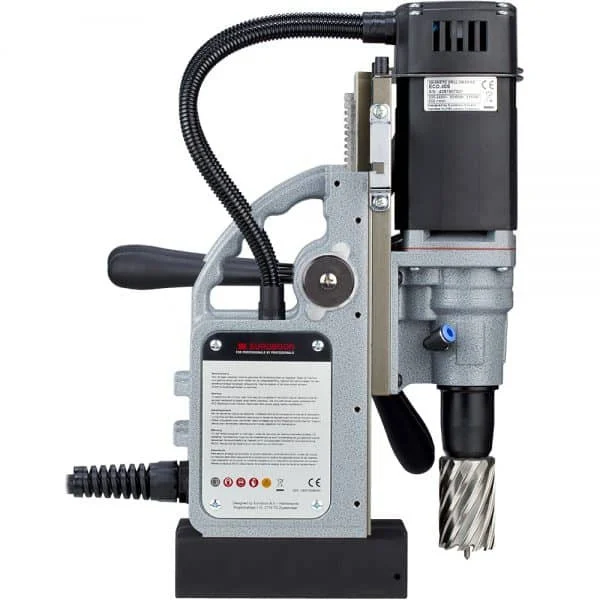

The Euroboor ECO.40S magnetic core drilling machine is the lightest Ø 1 9/16″ (40 mm) drilling machine in the market, fitting cutters up to 4 5/16″ (110 mm) in length. Our portable ECO.40S magnetic core drilling machine has a powerful 10.5 A (1150 W) high efficiency motor, with less heat generation and thus a longer lifespan. This drilling machine’s oil lubricated one-speed gearbox ensures optimal motor efficiency and lifetime of key components.
| Annular cutting | Ø 7/16″ – 1 9/16″ |
| Twist drilling | Ø 1/16″ – 5/8″ |
| Countersinking | Ø 3/8″ – 1 3/4″ |
| Length | 10 3/8″ |
| Width | 7 1/16″ |
| Height | 14 3/16″ – 17 5/16″ |
| Stroke | 5 11/16″ |
| Weight | 23.2 lbs* |
| Magnet (l x w x h) | 6 5/16″ x 3 1/8″ x 1 5/8″ |
| Magnetic force | 3305 lbs |
| Motor power | 10.5 A |
| Total power | 10.9 A |
| Speed (no load) | 600 rpm |
| Speed (load 10.5 A) | 380 rpm |
| Spindle (Weldon) | 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
