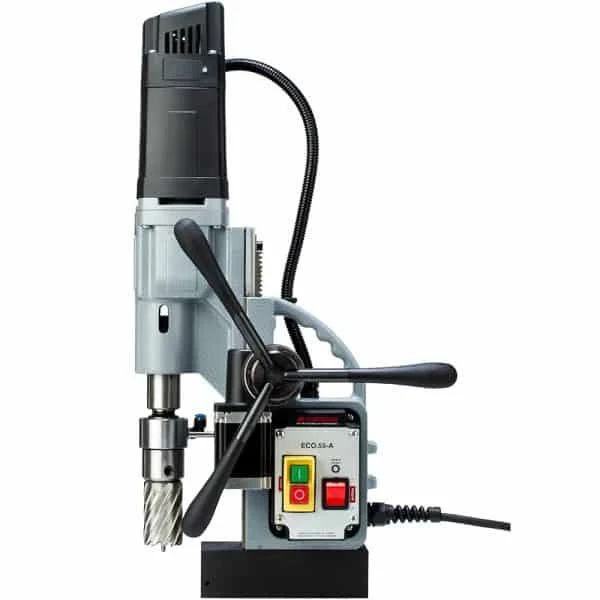

The Euroboor ECO.55-A magnetic core drilling machine drills holes with the highest efficiency thanks to its highly intelligent electronics, stable construction and automatic drilling functionality with automatic return for annular cutters. The machine’s digital display shows the ideal working load and the Smart Restart technology prevents excessive tool wear and failure.
| Annular cutting | Ø 7/16″ – 2 3/16″ |
| Twist drilling | Ø 1/16″ – 15/16″ |
| Countersinking | Ø 3/8″ – 2 3/8″ |
| Length | 13 9/16″ |
| Width | 12″ |
| Height | 19 5/16″ – 26″ |
| Stroke | 6 11/16″ |
| Weight | 34 lbs* |
| Magnet (l x w x h) | 6 5/8″ x 3 3/8″ x 1 7/8″ |
| Magnetic force | 4080 lbs |
| Motor power | 14.5 A |
| Total power | 15.4 A |
| Speed (no load) | (l) 275 rpm (ll) 500 rpm |
| Speed (load 14.5 A) | (l) 275 rpm (ll) 500 rpm |
| Spindle (Weldon) | MT3 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
