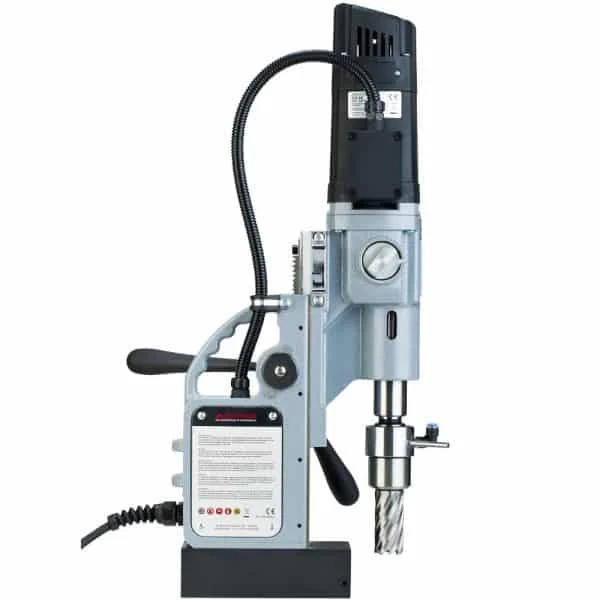

The Euroboor ECO.55S/TA is our magnetic core drilling machine which will actually drill holes in metal with the highest efficiency for you. This portable magnetic core drilling machine benefits from an automatic drilling functionality with automatic return for annular cutters. The ECO.55S/TA drilling machine is also suitable for tapping up to 13/16″. The machine’s digital display shows the ideal working load and the Smart Restart Technology prevents excessive tool wear and failure.
| Annular cutting | Ø 7/16″ – 2 3/16″ |
| Twist drilling | Ø 1/16″ – 15/16″ |
| Countersinking | Ø 3/8″ – 2 3/8″ |
| Tapping | Ø 1/8″ – 13/16″ |
| Length | 13 9/16″ |
| Width | 12″ |
| Height | 19 5/16″ – 26″ |
| Stroke | 6 11/16″ |
| Weight | 34 lbs* |
| Magnet (l x w x h) | 6 5/8″ x 3 5/16″ x 1 15/16″ |
| Magnetic force | 4080 lbs |
| Motor Power | 14.5 A |
| Total power | 15.4 A |
| Speed (no load) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Speed (load 14.5 A) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Spindle (Weldon) | MT 3 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
