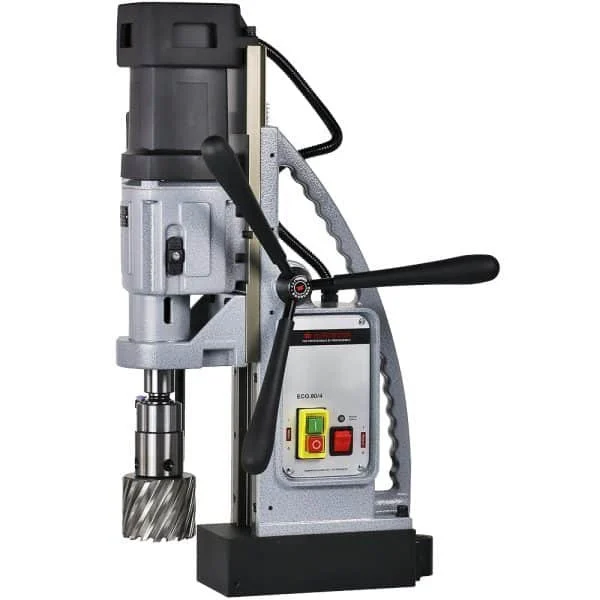

Thanks to its four-speed gearbox our portable Euroboor ECO.80/4 magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. This magnetic core drilling machine has a Morse Taper 3 spindle with integrated tool cooling and lubrication for the best drilling performance.
| Annular cutting | Ø 7/16″ – 3 1/8″ |
| Twist drilling | Ø 1/16″ – 1 1/4″ |
| Countersinking | Ø 3/8″ – 3 3/8″ |
| Length | 14 3/8″ |
| Width | 12 3/16″ |
| Height | 20 1/16″ – 27 15/16″ |
| Stroke | 10 1/4″ |
| Weight | 57.3 lbs* |
| Magnet (l x w x h) | 8 11/16″ x 4 5/16″ x 2 1/2″ |
| Magnetic force | 6615 lbs |
| Motor power | 15.4 A |
| Total power | 16.4 A |
| Speed (no load) | (I) 200 rpm (II) 300 rpm (III) 415 rpm (IV) 650 rpm |
| Speed (load 15.4 A | (I) 150 rpm (II) 200 rpm (III) 275 rpm (IV) 400 rpm |
| Spindle (Weldon) | MT 3 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
