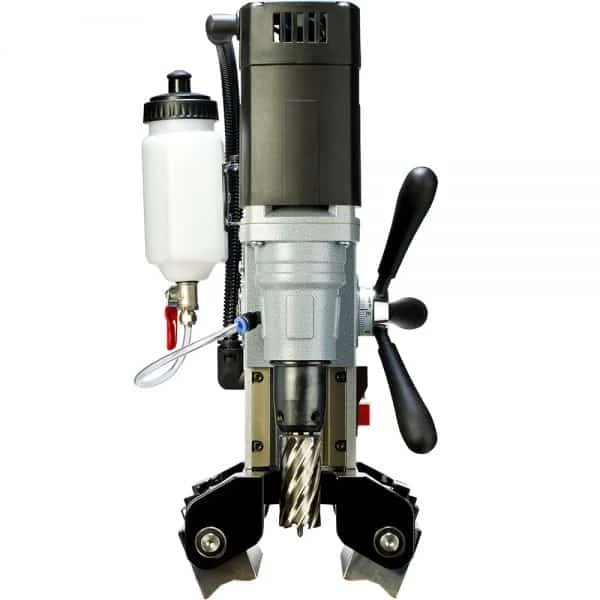

The Euroboor TUBE.30 magnetic core drilling machine is suitable for both flat and pipe material. The TUBE.30 with patented shallow-field magnetic technology offers incredibly strong grip, even on steel as thin as 1/8″ (3 mm). This magnetic core drilling machine automatically pivots to conform to any pipe of Ø 3″ (76.2 mm) or larger. The magnet does not require electricity, so all the power goes to the motor. This offers increased safety as the drilling machine will not release from the target material in the event of an unintentional power loss.
| Annular cutting | Ø 7/16″ – 1 3/16″ |
| Twist drilling (Weldon) | Ø 1/16″ – 1/2″ |
| Countersinking | Ø 3/8″ – 1 3/8″ |
| Length | 10 13/16″ |
| Width | 7 1/4″ |
| Height | 12 13/16″ – 16 3/8″ |
| Stroke | 3 9/16″ |
| Weight | 22.7 lbs* |
| Magnet (L x W x H) | 7 3/8″ x 6 1/2″ x 3 1/4″ |
| Magnetic force | 1175 lbs |
| Minimal material thickness | 1/8″ |
| Minimal pipe diameter | 3″ |
| Motor power | 8.2 A |
| Total power | 8.6 A |
| Speed (no load) | 775 rpm |
| Speed (load 8.2 A) | 400 rpm |
| Spindle (Weldon) | 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
