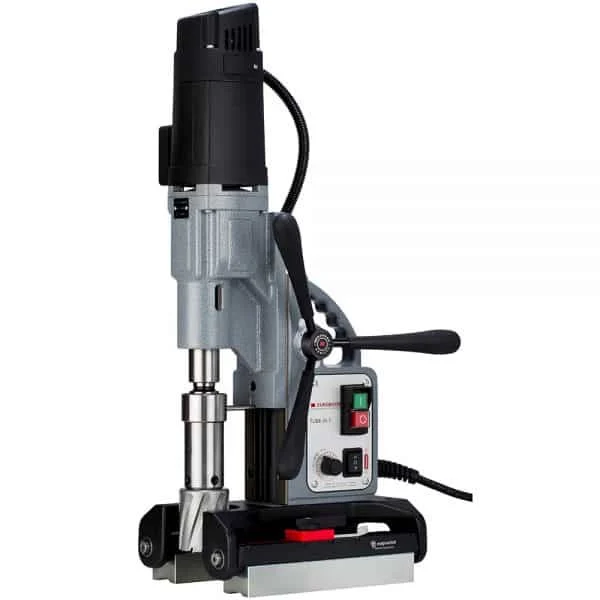

The portable Euroboor TUBE.55S/T magnetic core drilling machine is suitable for both flat and pipe material and for both drilling and tapping. The magnet of this magnetic core drilling machine offers incredibly strong grip, even on steel as thin as 1/8″ (3 mm). This magnetic core drilling machine cuts holes in metal up to 2″ (55 mm) and can be used on tube material with a diameter of 3 1/8″ (80 mm) and larger without any effort because of its pivoting magnet. The TUBE.55S/T benefits from Smart Restart technology, a digital display showing the ideal working load and automatic motor shut-off when displacement in any direction is detected by the GYRO-TEC sensor.
| Annular cutting | Ø 7/16″ – 2 3/16″ |
| Twist drilling | Ø 1/16″ – 15/16″ |
| Countersinking | Ø 3/8″ – 2 3/8″ |
| Tapping | Ø 1/8” – 13/16” |
| Length | 12 5/8″ |
| Width | 8 1/4″ |
| Height | 20 9/16″ – 27 1/4″ |
| Stroke | 6 11/16″ |
| Weight | 35.3 lbs* |
| Magnet (l x w x h) | 10 1/2″ x 9 7/16″ x 3 1/4″ |
| Magnetic force | 1895 lbs |
| Minimal material thickness | 1/8″ |
| Minimal pipe diameter | 3 1/8″ |
| Motor power | 14.6 A |
| Total power | 15.4 A |
| Speed (no load) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Speed (load 14.6 A) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Spindle (Weldon) | MT 3 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
