Key Features
Flush Rabbet CutsThe side-mounted cutter head lets this planer work right up against an adjacent surface, so you can cut flush and keep going deeper into a rabbet without leaving a lip to clean up by hand. Fine Depth ControlThe rotary depth adjustment dials in cut depth as fine as 1/256 inch, which matters when you are fitting doors, tuning edges, or sneaking up on a finished dimension. Smooth, Quiet CutIts single-knife spiral cutter head is built to reduce chatter, giving the Festool HL 850 E-F-Plus Planer a cleaner finish and a more controlled feel across hardwood edges, beams, and flooring stock.
Overview
The Festool HL 850 E-F-Plus Planer is a corded handheld planer built for edge planing, rabbeting, and finish work where clean control matters. This is a planer designed for flush edge work, rabbeting, and precision wood surfacing. Model Number 576258. If you regularly fit doors, true up solid wood edges, or cut rabbets that need to finish clean right to the wall or shoulder, this tool is built for exactly that job.
What makes this planer different is the cutter head layout. Instead of forcing you to stop short and clean up the last bit by hand, the head is mounted to one side so the housing can run flush to an adjacent surface. That design is the whole story here. On deep rabbets, edge details, and close-to-obstruction passes, it keeps the cut full-width rather than leaving a step behind.
The cutting setup is just as important as the layout. Festool uses a single-knife spiral cutter head with a replaceable cutting knife to produce a smoother, quieter, chatter-free cut. That matters most when you are working figured stock, hardwood edges, or finish pieces where tear-out and washboarding cost time. The planer shaft runs at 12,000 RPM, so the cut stays consistent while still moving material at a practical pace.
Depth adjustment is handled with a rotary front handle, and it is not a rough guess type of setup. You can set depth in fine increments down to 1/256 inch, with a planing depth range from 0 to 1/8 inch. On the job, that means you can take a fast clean-up pass, then dial back for fitting work without switching tools or fighting a vague adjustment mechanism. Festool also notes depth adjustment up to 9/64 inch in product copy, but the technical table lists the working planing depth as 0 to 1/8 inch, so the technical data is the safer number to rely on.
The planing width is 3-1/4 inches, which puts it right in the sweet spot for door edges, face work, trim stock, and general carpentry. For users doing architectural details or custom surfaces, the HL 850 platform also supports multiple head options for rustic effects in beams and flooring. That gives the tool more range than a basic one-job planer. It is not just for knocking down a sticky door. It can also be part of more specialized finish and texture work.
Jobsite practicality is strong here too. The retractable spring-loaded side guard improves safety while adapting as rabbet depth increases, and the planer includes a quick-acting safety brake for fast tool stop. Dust collection is also part of the system, with a 1-1/2 inch dust extraction connection and included suction adapter. Hooked to extraction, it is a cleaner setup for indoor work and finished spaces than the average handheld planer.
This is a 120 VAC corded tool with 850 watts of power, so it is aimed at buyers who want steady output without managing battery runtime. At 9.26 pounds, it has enough mass to stay planted on the work while still being manageable for handheld use. The included Systainer3 keeps the planer, fence, stop, and accessories organized, which is a real plus if the tool travels from shop to install site.
Who should buy it? Finish carpenters, cabinet installers, door and window crews, remodelers, and serious woodworkers who need precise control at the edge. If your work involves flush rabbeting, fitting, edge jointing with accessories, or high-end wood surfaces where cleanup time hurts margin, this planer makes sense. If you only need to take the occasional rough pass off construction lumber, it is probably more planer than you need. But if you care about cut quality and edge access, this is the point of the tool.
Plane Right Up to the Edge
The standout feature on this handheld planer is simple: it can cut flush to an adjacent surface. That saves handwork when you are cutting rabbets or cleaning up edges that usually leave a ridge behind.
- Side-mounted cutter head allows flush planing against adjoining surfaces
- Unlimited rabbet depth design keeps the tool useful beyond shallow shoulder work
Dial In Fine Material Removal
When you are fitting a door or sneaking up on a clean edge, the adjustment system matters as much as raw power. The rotary front handle gives you small, repeatable depth changes instead of broad, guess-and-check settings.
- Depth adjustment to 1/256 inch for precise fitting work
- Planing depth range from 0 to 1/8 inch based on technical data
Cleaner Cuts, Cleaner Workspace
This tool is built for more than fast stock removal. The spiral single-knife head is meant to cut smoother and quieter, and the extraction port helps keep chips under control when you are working indoors or around finished material.
- 12,000 RPM planer shaft speed supports smooth, consistent cutting
- 1-1/2 inch dust extraction connection helps with chip control and visibility
Ready for Shop or Jobsite Storage
This is not a bare loose tool tossed in a cardboard box. The kit includes the core accessories you need for guided planing and rabbeting, plus a Systainer3 that keeps the whole setup protected and easy to stack with other Festool gear.
- Includes parallel side fence, rabbet depth stop, suction adapter, and Systainer3
- 9.26 lb tool weight balances control with enough mass to stay planted in the cut

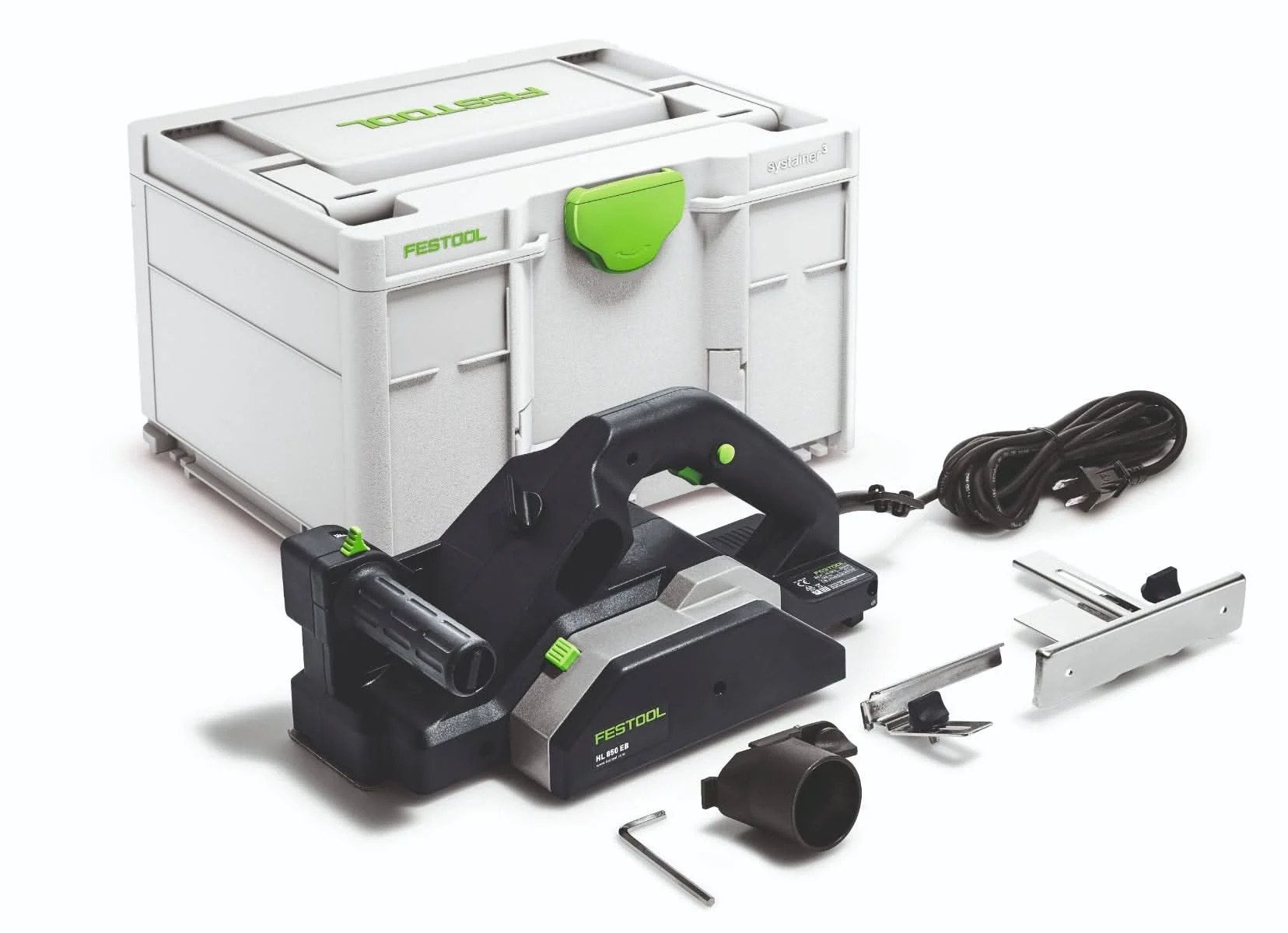

What’s in the Box
- (1) HK 82 SD Planer Head
- (1) Parallel Side Fence PA-HL
- (1) Rabbet Depth Stop FA-HL
- (1) Suction Adapter AD-HL
- (1) 5 mm Hex Key
- (1) Systainer3 SYS3 M 237
Tool Nut also lists a solid carbide standard blade with the standard planer head.
Key Specifications
| Power Source | 120 VAC Corded |
|---|---|
| Power Consumption | 850 W |
| Planer Shaft Speed | 12,000 RPM |
| Planing Width | 3-1/4 in |
| Planing Depth | 0 to 1/8 in |
| Max. Rabbet Depth | Unlimited |
| Dust Port Diameter | 1-1/2 in (36 mm) |
| Weight | 9.26 lbs |
Built For
Finish CarpentryWoodworkingDoor FittingRabbetingEdge PlaningRemodelingBeam and Flooring Surface WorkCabinet Installation
Pro Tip
When you are cutting a flush rabbet, start with a light pass and use the fine rotary depth adjustment to creep up on final depth instead of trying to hog it out at once. This planer is built to stay flush to the adjacent surface, so small adjustments are the easiest way to get a clean shoulder without extra hand cleanup.
Tool Nut’s Take
Tool Nut’s Take
Festool HL 850 E-F-Plus Planer for Serious Edge Work
The Festool HL 850 E-F-Plus Planer earns its keep when regular planers leave you doing cleanup work by hand.
- Who it’s for: Finish carpenters, woodworkers, remodelers, and installers who need a handheld planer for clean edge fitting, flush rabbeting, and controlled finish work.
- Why it stands out: The side-mounted cutter head is the real differentiator. It lets the tool plane flush to an adjacent surface, and that is not something every planer does well.
- Worth knowing: This is a corded premium planer built around precision and specialty capability, not the cheapest way to shave down rough stock. If you will use the flush rabbet design, it makes sense. If not, you may be paying for capability you will not tap into.
Common Questions
- Is this a corded or cordless planer? It is a corded 120 VAC planer with 850 watts of power.
- What is the maximum planing width? The Festool HL 850 E-F-Plus Planer has a 3-1/4 inch planing width.
- Can it cut deep rabbets? Yes. Festool lists the maximum rabbet depth as unlimited because of the flush cutter side design and retractable side guard.
- Does it support dust extraction? Yes. It has a 1-1/2 inch (36 mm) dust extraction connection and includes a suction adapter.
