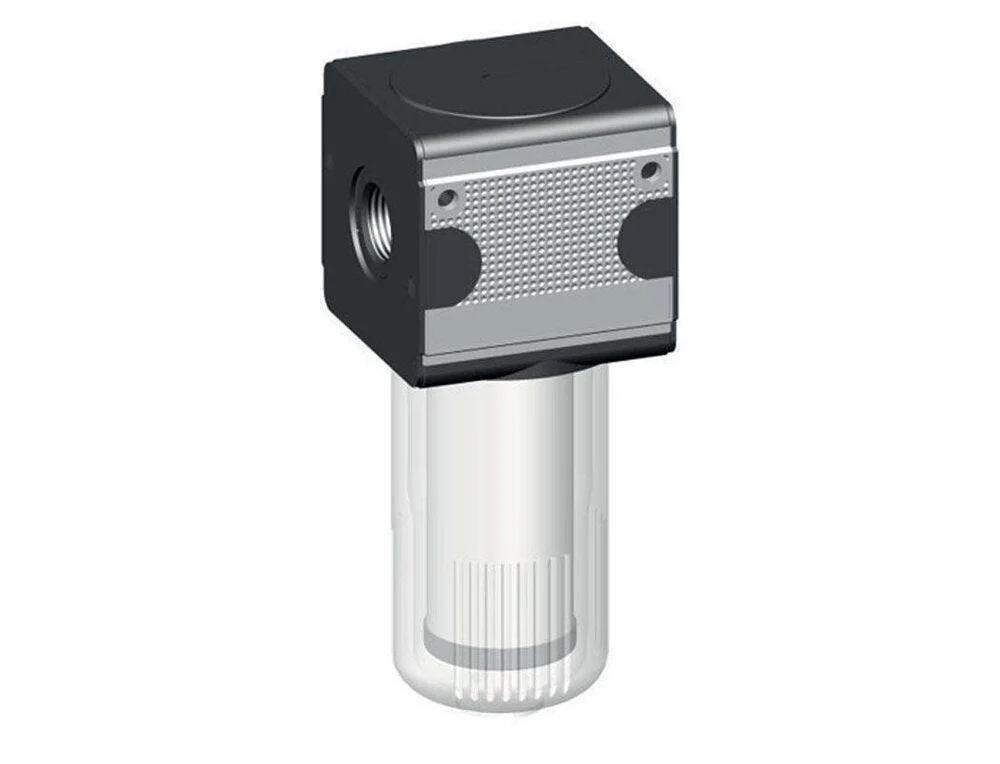

The filter removes water, dirt and other harmful particles larger than 0.3 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 3/4 inch ports. The maximum flow rate is 1500 l/min. Please note that the maximum flow rate alone doesn’t provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The minimum input pressure is -0.965 bar make it suitable for vacuum applications. The maximum input pressure is 0.0 bar (0 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The housing material is made out of zinc die-cast and the filter has a bowl made of metal. It has a position indicator to see the bowl level.
Mounting brackets need to be ordered separately.
Specifications
Connection size : 3/4 inch
Max flow rate (l/min) : 1500
Filter size (µm) : 0.3
FRL feature : For vacuum,Bowl with inspection tube
Material : Zinc die-cast
Condensate drain type : Without drainage
Min pressure (bar) : -0.965
Connection type : Inner thread cylindrical BSPP-G
Model : Multifix 2
Min temperature (°C) : -10
Max temperature (°C) : 60
Height (mm) : 167
Length (mm) : 69
Container material : Metal
