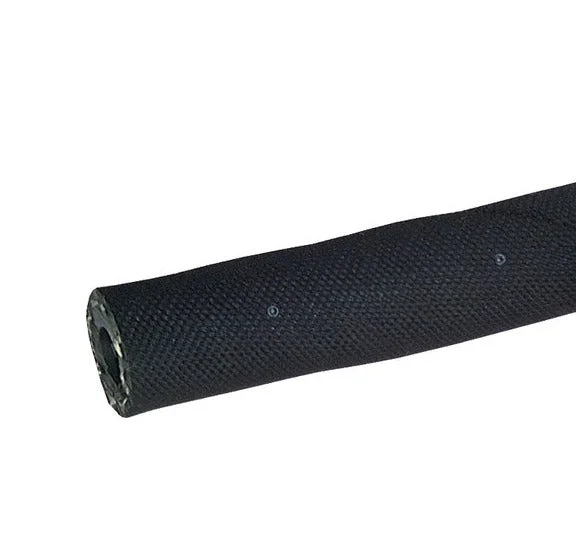

Highly durable 5.5 mm oil & fuel hose. The hose is made of FPM (FKM) with a poly-amide inlay. The hose has a temperature range of -30 °C to 110 °C. The hose is suitable for commercial fuels such as petrol, diesel, heating oil, alcohol fuels and RME (rape seed methyl ester). The hose is UV, ozone and abrasion resistant. This hose is sold at a pre-cut length of 1 m, we also offer rolls with a length of 20 m. Hose conforms to DIN 73379 standard.
Pros:
- Suitable for commercial fuels such as petrol, diesel, heating oil
- UV, ozone and abrasion resistant
- Highly durable FKM
- Hose conforms to DIN 73379 standard
HL-F-FU series
The HL-F-FU series are high quality oil & fuel hoses available in sizes from 5.5-25 mm inside diameter. These hoses are suitable for all kind of fuels, commercial and bio-fuels as well as RME (rape seed methyl ester). The hoses are UV, ozone and abrasion resistant and are available in pre-cut lengths of 1, 3 and 10 meters or as a 20 meter roll.
Specifications
Internal diameter (mm) : 5.5
Outer diameter (mm) : 11.5
Hose length (m) : 1
Hose material : FKM (FPM)
Max pressure at 20 °C (bar) : 6
Hose features : Ozone resistance
Approval : Fuel
Standard : DIN 73379
Min temperature (°C) : -30
Max temperature (°C) : 110
Outer wall material : ECO
Roll length (m) : 20
Number of inlays : 1
Inlay material : Aramid
Outside wall color : Black
