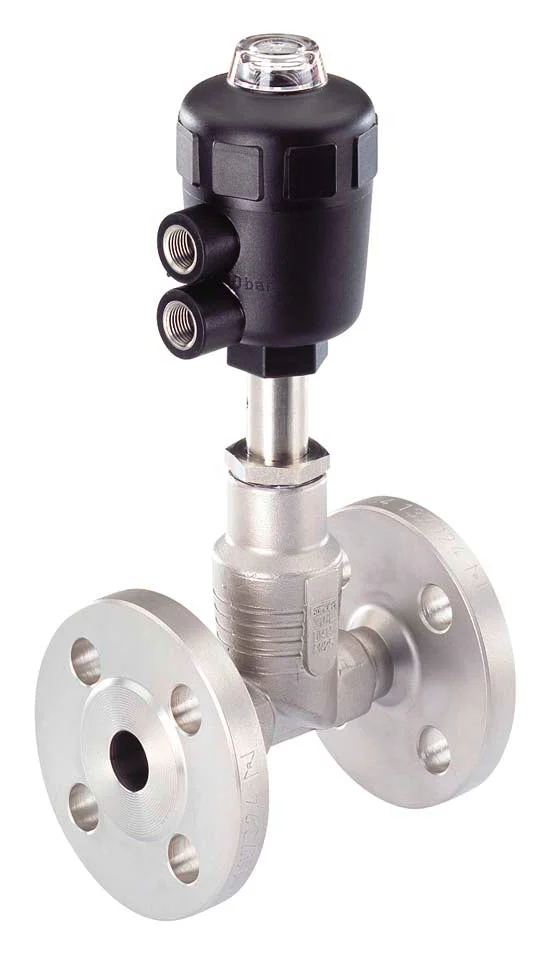

Bürkert 2/2-way pneumatic globe valve (type 2012) with DN 32 flanged ports. The valve has a stainless steel housing with PTFE sealing and an orifice size of 32 mm. The control function of the valve is normally closed (NC), which means the valve opens when air is applied. Suitable for a media temperatures from 0 to 60°C (32 to 140°F) at a pressure of to 16 bar (0 to 224 psi). The valve has a Kv-value of 20 m3/h (Cv-value of 23.1 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. The PTFE sealing is resistant to almost all chemicals. It is also suitable for applications with oxygen. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. DVGW approved for applications with fuel gasses.
Pros:
- High flow capacity and used for demanding applications
- Easily mount a compact Burkert 8697 position feedback and control unit on the actuator (not included)
Cons:
- Flow above seat can cause water hammer when used with liquids. Use flow below seat versions for liquids
Series:
The Bürkert type 2012 2/2-way globe valve is a pneumatically actuated on/off valve. The CLASSIC pneumatically operated piston actuator is available in PA, or PPS for higher ambient temperatures. The valve body has been optimized for excellent flow properties and is equipped with a self-adjusting packing gland for added tightness and long-term reliability. These valves are suitable for high viscosity media of up to 600 mm2/s. This valve can be controlled through the use of a pilot valve or through central automation with a valve island. The valve can be fitted with accessories like electrical position feedback, manual override or stroke limitation.
Specifications
Connection size : DN 32
Connection type : Flange
Material : Stainless steel
Seal material : Teflon (PTFE)
Function : Normally closed
Max pressure difference at 20 °C (bar) : 16
Max temperature (°C) : 60
Kv value [m3/h] : 20
Min control pressure (bar) : 1.9
Max control pressure (bar) : 10
Approval : Gas,Oxygen
Actuator material : Polyamide (PA)
Actuator version : Classic
Valve construction : Valve complete
Temperature environment min (°C) : -10
Temperature environment max (°C) : 60
Actuator size : 63 mm
CIP capable : Yes
Control air connection material : Stainless steel
Control air connection position : In line direction
Control air connection type : Inner thread cylindrical BSPP-G
Main valve operating principle : Globe valve
SIP capable : Yes
Valve bore (mm) : 32
