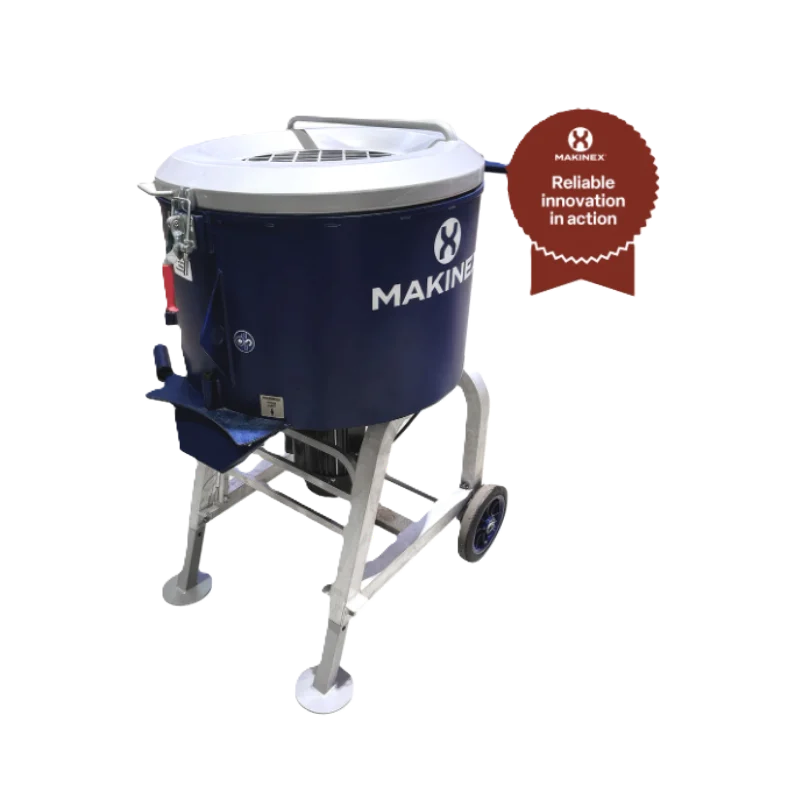

Forced Action Mixer FAM-120

Built for high-viscosity, heavy surface-prep materials, the FAM-120 delivers consistent, reliable mixing for screed, mortar, epoxy-bound aggregate and GFRC.

Designed for demanding job sites, it features a sealed AC geared motor, high-strength aluminum frame and an epoxy-coated drum for durability and reduced downtime. The optional replaceable liner cuts cleaning time by up to 40%, making the FAM-120 a cleaner, faster and more efficient choice for trade professionals.

Features and Benefits

Challenges on the Job

Replaceable Drum Liner

• Extends drum life and reduces wear
• Minimizes cleaning time between batches
• Supports cleaner operation and consistent mix quality

Concave, Inverted Anti-Spill Lid

• Reduces spillage, throw-off and dust
• Improves site cleanliness and operator visibility
• Helps maintain accurate mix ratios

Integrated Vacuum Port for Dust Extraction

• Enables low-dust operation for safer sites
• Protects workers from hazardous silica and epoxy dust
• Supports compliance with modern safety standards

Adjustable Stabilizing Legs

• Stable on uneven terrain
• Reduces operator strain through improved ergonomics
• Enhances control when discharging into wheelbarrows or containers

Specs

Forced Action Mixer	Value
Forced Action Mixer Product Code	FAM-120-US
Forced Action Mixer Line Product Code	FAM-027
Rated Continuous Output	1100W
Max Output	30RPM
Input Voltage	240V
Input Current	9A
Frequency	60Hz
Weight	265lbs
Dimensions (min)	29.8 x 38.6 x 47.6 (W x D x H) in
Dimensions (max)	29.8 x 38.6 x 54.1 (W x D x H) in
Output RPM	30
Mixing Capacity	31.7gal
Motor Ingress Protection	44
Terminal Box Ingress Protection	54

Safety compliance:

• Compliant with relevant CE and IEC electrical safety standards
• Designed with dust-control capability to support compliance on modern construction sites
• Integrated safety cut-out and thermal overload protection
• UKCA and CE compliance markings (confirm based on final market release)
