Freeman 16 and 18 Gauge 3-in-1 Cleat Flooring Air Nailer

Product Features & specs :

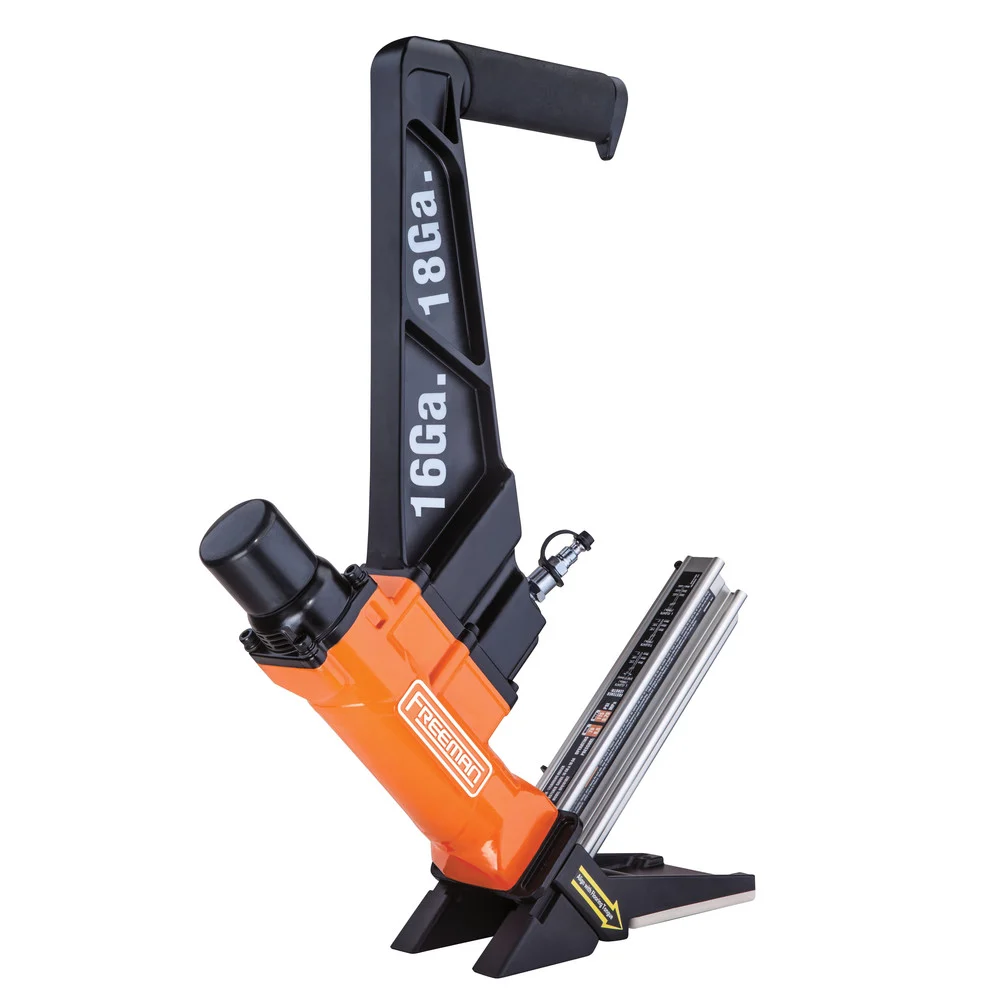

Freeman PF1618GLCN 16 and 18 Gauge 3-in-1 Cleat Flooring Air Nailer

Details

The “Everything” Flooring Nailer!

Freeman has done it again, providing the DIY and pro customer with a solution that takes the guess work out of what flooring nailer to buy. The Freeman PF1618GLCN 18-Gauge Cleat Flooring Air Nailer has been combined with the 16 Gauge L Cleat to make the first all-in-one nailer.

For your more common hardwoods such as 5/8 in. to 3/4 in. oak, maple, hickory tongue and groove flooring the 16 gauge cleat is ideal. If you happen to be installing 3/8 in. to 3/4 in. engineered or solid tongue and groove flooring, including bamboo, stranded bamboo, carbonized bamboo, or exotic hardwoods, the 18 gauge L cleat is your fastener.

The magazine design allows you to load 16 or 18 gauge L-cleats ranging in sizes from 1-1/4 in. to 2 in. in length without making any adjustments or modifications, providing a seamless operation. This nailer uses any brand of 16 or 18 gauge L-cleat, so there is no fear of finding the correct fastener. The driver blade is made of hardened steel with an aluminum cylinder and high-quality rubber O-rings while the body of the nailer is constructed of durable die-cast aluminum to stand up to daily use.

Featuring 3 interchangeable base plates, this nailer provides stability and protects flooring surfaces from scratches. It comes complete with wrenches, oil, and a fiberglass handle rubber mallet.

Features:

• No-mar design provides increased protection from marring when working on finished flooring surfaces

• 3-in-1 versatility designed to be used with either 16 gauge ‘L’ or ‘T’ Cleats or 18 gauge ‘L’ Cleats with no adjustments to the tool

• Height adjustment allows you to precisely line up with your nailing area

• Fiberglass mallet with rubber head included

• Lightweight construction of high-strength aluminum and heat treated steel parts

• Anodized aluminum magazine for long lasting durability

• 3 interchangeable base plates provide stability and protect flooring surfaces from scratches

• One-piece drive blade for longer life

• Added peace of mind with Freeman’s 7 year warranty

What’s Included:

• 16 & 18 Gauge 3-in-1 Cleat Flooring Nailer – PF1618GLCN

• Oil

• Wrenches

• Anti-Dust Cap

• Fiberglass Mallet

• Interchangeable Base Plates

• Tri-Lingual Manual

• Manual

Power Source

Pneumatic

Fastener Type

T-Cleats/L-Cleats

Fastener Length (Min.)

1-1/4 in

Fastener Length (Max.)

2 in

Max. Fastener Length

2 in

Operating Pressure (PSI)

70 – 115

Lubrication

Oil-Lube

Fastener Capacity

120

Magazine Angle

Angled

Air Inlet Size

1/4 in

Firing Modes

Single Sequential

Fitting Type

NPT

Min. Fastener Length

1-1/4 in

Fastener Gauge

16 / 18

Average Air Consumption (SCFM)

2.2

Fastener Collation

Adhesive Collation

Magazine Type

Strip Loading

Length

17.6 in.

Width

4.8 in.

Height

22.2 in.

Depth

20.51 in.

Weight

9.68 lbs.

Warranty Term

7 Year
