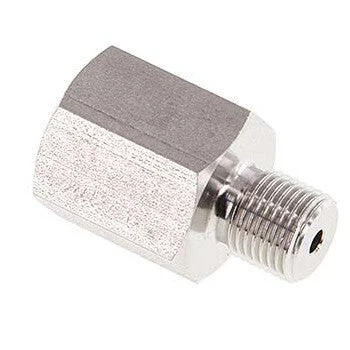

This stainless steel reducer connection is designed for pressure gauges that have a different threaded input than the desired location’s threaded output. Connection 1 has G 3/4 inch male threads and connection 2 has G 1/2 inch female threads. It is suitable up to a max pressure of 400 bar at 20°C. It is 45 mm in length.
Pros:
- Makes it possible to add larger pressure gauges on smaller pipes.
- Connection 1 has G 3/4 inch male threads and connection 2 has G 1/2 inch female threads, allowing for pressure gauge installation on different thread types.
Cons:
- Needs seal to make proper connection between gauge and reducer.
ML-R series
The ML-R reducer series is designed for pressure gauges that have a different threaded input than the desired threaded output connection location. Various thread options for connection 1 (male metric, male BSPP-G, or male NPT) and additional options for connection 2 (female metric, female BSPP-G, or female NPT). Constructed of either brass or stainless steel. Depending on the model, the length ranges from 15 to 46 mm and it is suitable for max pressure of either 250 or 400 bar.
Specifications
Connection size : 3/4 inch,1/2 inch
Material : Stainless steel
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
