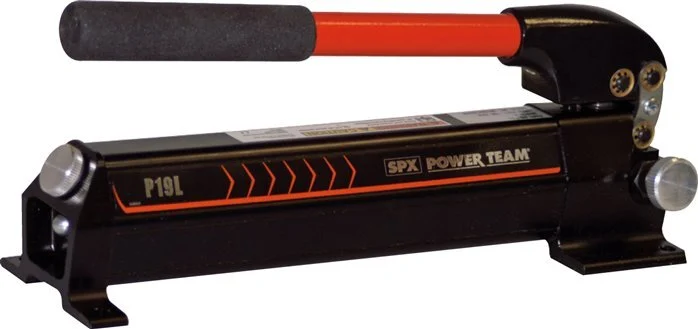

This is a Power Team two-stage 2.5 l hydraulic hand pump, suitable for a maximum operating pressure of up to 700 bar. It delivers a volume of 2.6 cm3 per stroke, at the maximum operating pressure and 10.7 cm3 while unpressurized. A two-stage pump enables the rapid extension of the cylinder. As soon as the cylinder comes in contact with a load, the pump automatically switches to high pressure stage.
The pump is delivered filled with HLP oil and equipped with an NPT 3/8” female threaded port.
Pros:
- Ensured strength and long service life thanks to the full metal design
- Particularly light and economical aluminum design
- Welding sparks cannot burn through the housing
- Equipped with a safety valve and check valve
- Large valve control button enables precise and slow relieving of the load
Specifications
Max. pressure (bar) : 700
Pump type : Two-stage
Tank volume (l) : 2.5
Flow rate per stroke unpressurised : 10.7
