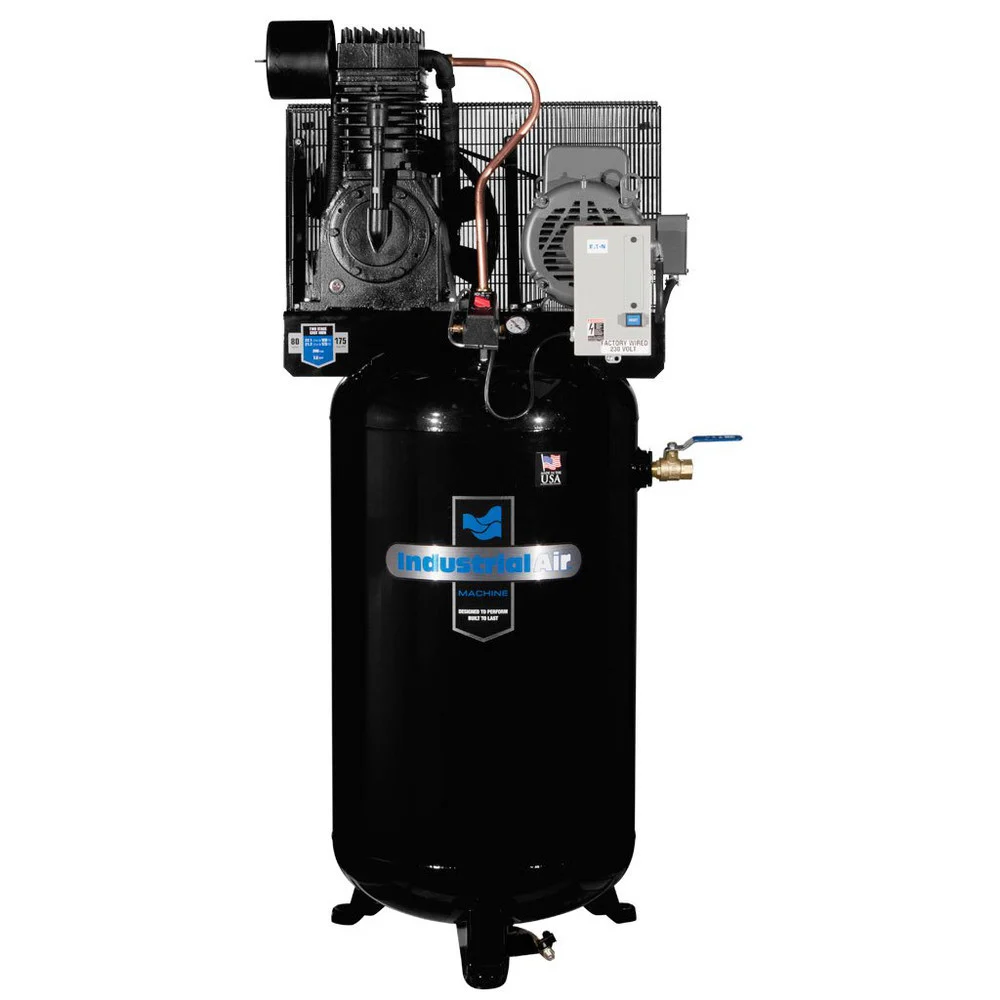

Industrial Air 7.5 HP 80 Gallon Industrial Vertical Stationary Air Compressor with Baldor Motor

Product Features & specs :

Industrial Air IV7518075 7.5 HP 80 Gallon Industrial Vertical Stationary Air Compressor with Baldor Motor

Details

The Industrial Air IV7518075 7.5 HP 230V 80 Gallon Baldor Industrial Vertical Stationary Air Compressor will provide you with one of the most versatile and useful forms of energy available. With an air compressor you can complete your construction, maintenance, automotive repair, hobby, and craft projects faster than with traditional tools.

Features:

• Patented pump design provides for a cooler running pump

• Delivers maximum CFM at 175 PSI providing enough power to operate more than one air tool or device at one time

• Baldor industrial class 4-Pole electric motor runs at 1,725 RPM and is UL certified, NEMA rated

• Equipped with pre-wired and mounted magnetic starter to save time and money

• Large capacity, 80 gallon ASME certified tank

• Extended tank drain valve, ball valve, and vibration isolators are included for ease of use

What’s Included:

• 7.5 HP 230V 80 Gallon Baldor Industrial Vertical Stationary Air Compressor – IV7518075

• Manual
• Parts List

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

29

UL Safety

Yes

Power Type

Electric

Pump Speed (RPM)

1725

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

80 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

Yes

Pump Type

Reciprocating

Phase

1

RPM

1725

Horsepower

7.5

Air Consumption at 90 PSI (SCFM)

5.1

Voltage

230V

Air Consumption at 40 PSI (SCFM)

6.8

Running Horsepower

7.5

Noise Rating (dBA)

86

ETL Safety

No

Length

40.2 in.

Width

32.2 in.

Height

80 in.

Weight

613 lbs.

Warranty Term

2 Year
