Key Features
Long-Range LayoutUse the detector to work out to 1150 feet, which matters when you’re laying out large rooms, slabs, grading lines, or exterior work where a short-range laser will come up short. Self-Leveling AccuracyBuilt-in self-leveling and impact sensing help keep the beam where it belongs. If the unit gets bumped, it pauses so you do not keep working off a bad reference line. Full Kit Rotary LaserThe Klein Tools 93RLS self-leveling rotary laser level comes as a ready-to-work kit with tripod, detector, detector mount, grade rod, batteries, and hard case, so setup is quick instead of pieced together later.
Overview
The Klein Tools 93RLS Green Rotary Laser Level, Self-Leveling with Plumb Spot and Tripod is a self-leveling rotary laser level built for layout, leveling, squaring, plumb, and alignment work. This is a rotary laser level designed for leveling, general layout, squaring, plumb, and alignment applications. Model Number: 93RLS. If you need a jobsite-ready laser level for larger spaces and outdoor work, this kit gives you the core tool plus the support gear needed to put it to work right away.
The big story here is reach. With the included detector, the 93RLS works up to 1150 feet, which makes it a practical choice for warehouses, outdoor construction sites, grading, and other wide-area layout tasks where compact line lasers do not have enough range. Accuracy is rated at plus or minus 1 mm per 10 m, so you are not just getting long reach, you are getting a reference you can trust for elevation checks, alignment, and plumb transfer.
Klein built this unit as more than a basic horizontal rotary laser. It projects a green rotary beam and includes an integrated plumb spot, giving you more flexibility for floor-to-ceiling transfer and alignment work. The unit mounts horizontally and vertically using dual 5/8 inch threads, which is a real advantage when you need to switch between level and plumb layouts without changing tools. Variable speed is also called out in the product data, which helps match beam visibility and detector use to the task at hand.
On the job, durability and uptime matter just as much as beam quality. This laser level uses an internal lithium-ion battery with more than 24 hours of runtime, so it is set up for full-day use and then some. It is also rated IP66, meaning it is built to deal with dust and water exposure that would quickly become a problem for lighter-duty layout tools. Klein also includes out-of-level indication, low-battery indication, low-battery alarm, and a transit locking mechanism, all of which make the tool easier to manage and protect between setups.
One of the more useful features is built-in impact sensing. If the rotary laser gets bumped or moved, it automatically pauses to help prevent bad measurements from carrying through the rest of the job. That matters on active sites where tripods get nudged, cords get dragged, and traffic around the setup is just part of the day. It is the kind of feature that saves more time than it sounds like on paper because it helps catch errors before they turn into rework.
This kit format also makes the 93RLS easier to justify if you do not want to hunt down matching accessories separately. Klein includes the accuracy detector, detector mount, tripod, 9 foot grade rod with clamp, required batteries, manual, and a hard case. For crews doing concrete prep, site layout, interior build-outs in large spaces, ceiling alignment, or exterior grading, that all-in-one package means less downtime and fewer compatibility headaches.
Who is this for? General contractors, site crews, concrete and grading teams, remodelers working in larger interiors, and anyone who needs a rotary laser level instead of a short-range cross-line unit. If your work is mostly small-room punch list stuff, this may be more tool than you need. But if you regularly lay out long runs, check elevation across distance, or need dependable plumb transfer with detector-based range, this is the right class of tool.
See the Reference Across Big Jobsites
This is where a rotary laser earns its keep. The detector setup lets you work far beyond the reach of a typical room laser, which is what you need for slab work, grading, warehouse layout, and long elevation checks.
- Range up to 1150 feet when used with the detector
- Accuracy rated at plus or minus 1 mm per 10 m
- Ideal for leveling, general layout, squaring, plumb, and alignment applications
Built to Stay Reliable on Active Jobsites
Layout tools get knocked around. Klein added impact sensing that pauses the unit if it gets bumped, plus a rugged housing and an IP66 rating so the laser is better suited for real site conditions instead of clean indoor-only use.
- Impact sensing helps prevent working from a shifted setup
- IP66 rating for dust and water resistance
- Transit locking mechanism helps protect the unit during transport
Klein Tools 93RLS Green Rotary Laser Level Ready to Work
The value here is not just the laser. It is that the full setup comes together in one kit, so you can get to work with the right support gear instead of piecing together a tripod, rod, detector, and storage later.
- Includes tripod, detector, detector mount, grade rod, and hard case
- Internal lithium-ion battery provides more than 24 hours of runtime
- Mounts horizontally and vertically with 5/8 inch threads

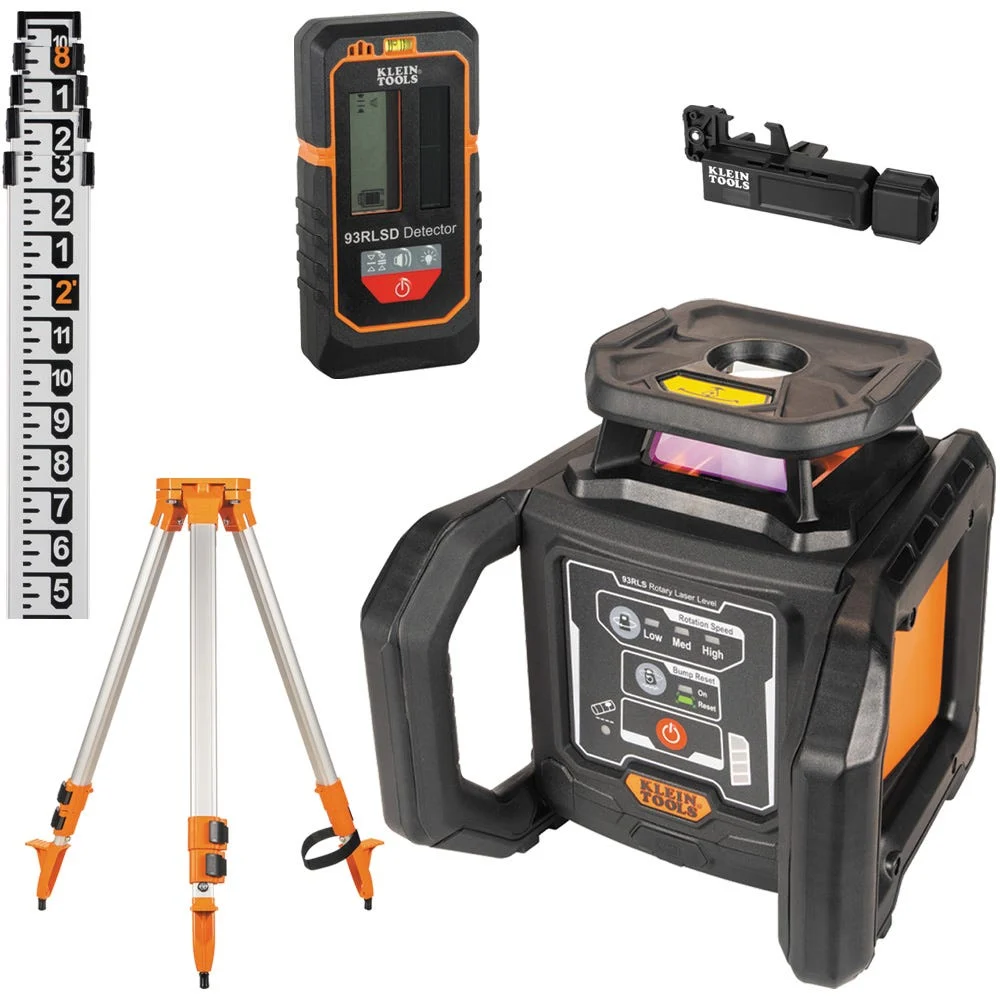

What’s in the Box
- Self-leveling rotary laser level
- Accuracy detector
- Detector mount
- Tripod
- 9 ft grade rod with clamp
- All required batteries
- Manual
- Hard case
Key Specifications
| Type | Self-Leveling Rotary Level |
|---|---|
| Laser Color | Green |
| Laser Wavelength | 515-530 nm |
| Laser Class | Class 3R |
| Maximum Range | 1150 ft with detector |
| Accuracy | +/- 1 mm per 10 m |
| Battery Life | More than 24 hr |
| Ingress Protection | IP66 |
| Mounting Type | (2) 5/8 in threads for vertical and horizontal mounting |
| Number of Beams | (1) Rotary, (1) Plumb |
| Weight | 4.36 lbs |
| Material | ABS + PC |
Compatibility
Tripod Mounting Uses (2) 5/8 inch threads for vertical and horizontal mounting, including secure attachment to the included survey tripod. Power Source Powered by an internal lithium-ion battery system and ships with the required batteries in the kit. Detector Operation Designed to achieve its full 1150 ft working range when used with the included detector.
Built For
ConstructionGeneral ContractingConcrete LayoutSite GradingWarehouse LayoutAlignment WorkPlumb TransferRemodeling
Pro Tip
If you are working outdoors or across a long interior run, plan on using the included detector from the start. That is how you get the full 1150 foot working range, and it makes the beam much easier to read in bright conditions.
Tool Nut’s Take
Tool Nut’s Take
Klein Tools 93RLS Green Rotary Laser Level for crews that need real range
This is the kind of rotary laser kit that makes sense when small-room lasers stop being enough and you need dependable layout over distance.
- Who it’s for: Contractors, concrete crews, grading crews, and remodelers working in large interiors or outdoor spaces.
- Why it stands out: Long 1150 ft detector-assisted range, integrated plumb spot, over 24 hours of runtime, and a complete kit with tripod, rod, detector, and case.
- Worth knowing: This is a full-size rotary laser setup, so it is best suited to bigger layout work where the range and detector actually pay off.
Common Questions
- Is this a self-leveling laser level? Yes. The 93RLS is a self-leveling rotary laser level.
- Does it include a plumb function? Yes. It includes an integrated plumb spot and has one plumb beam in addition to the rotary beam.
- How far can it work? The listed maximum range is 1150 feet when used with the detector.
- Can it be mounted vertically and horizontally? Yes. It has (2) 5/8 inch threads for vertical and horizontal mounting.
- Is it built for rough jobsite conditions? Yes. It is rated IP66 and includes impact sensing, out-of-level indication, and a transit locking mechanism.
