Kreg KBCIC In-Line Clamp

Key Features

Pressure From the Side This clamp holds from the side instead of from above, so the work area stays open for drilling, sanding, assembly, and layout. That matters when overhead clamps would block your hands or tools. 4-3/4 Inch Reach The long pushrod gives the Kreg In-Line Clamp a 4-3/4 inch adjustment range, which helps it handle different board widths and awkward assemblies without constant repositioning. Bench Dog Fit A sturdy peg fits standard 3/4 inch bench dog holes, turning a workbench or portable work surface into a more useful clamping station. It is a smart setup for woodworking and general assembly work.

Overview

Kreg KBCIC In-Line Clamp

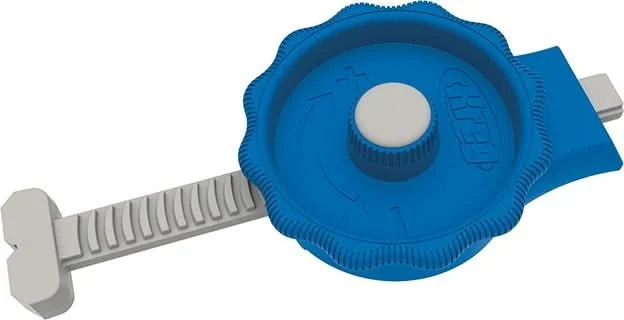

The Kreg KBCIC In-Line Clamp is a bench-mounted clamp built to secure workpieces from the side so the top of the project stays clear. This is a clamp designed for woodworking, assembly, and general bench work. Model Number KBCIC. If you work on a bench with 3/4 inch dog holes and get tired of bar clamps or F-style clamps crowding the job, this setup solves that problem in a simple way.

What makes this clamp useful is how it applies pressure. Instead of coming down from above, it pushes in from the side. That gives you room to drill pocket holes, drive fasteners, sand edges, align parts, or check fit without the clamp body sitting right where you need to work. Kreg rates it for up to 250 pounds of clamping force, which is plenty for holding panels, parts, and assemblies steady during most shop tasks.

The adjustment setup is straightforward. A contoured dial makes it easy to tighten and fine-tune pressure, while the long pushrod provides a 4-3/4 inch adjustment range. In real use, that means you can move from smaller parts to wider stock without fighting the clamp or constantly changing your setup. The clamp shoe also swivels, which helps it grab different shapes and apply pressure more evenly across irregular workpieces.

The design is aimed at practical bench work, not just raw force. The body is described as durable and lightweight, so it is easy to move around the bench and quick to set in place when you need an extra hand. For a clamp that plugs into a dog hole system, weight matters. You want it solid enough to stay put, but not bulky enough to become annoying to reposition. At about 0.3 pounds assembled weight, this one is easy to keep close at hand.

The big compatibility advantage here is the 3/4 inch peg. It fits standard 3/4 inch bench dog holes, so it works with many traditional woodworking benches and any work surface where you can drill matching holes. Kreg also calls it out as a good companion for the Mobile Project Center, which makes sense if you want portable clamping without setting up a full bench every time.

This Kreg clamp makes the most sense for woodworkers, cabinet installers, trim carpenters, and serious DIY users who do a lot of bench assembly and fitting. It is especially handy when you need clamping pressure but also need the top face of the material accessible. If that sounds like your workflow, the Kreg KBCIC In-Line Clamp is one of those small shop accessories that ends up getting used a lot more than you expected.

Keep the Top of the Workpiece Clear

When a regular clamp gets in the way, this design starts to make a lot of sense. Side pressure lets you hold the piece securely while keeping the top face open for layout, drilling, sanding, or fastening.

• Applies pressure from the side instead of overhead
• Useful for woodworking and do-it-yourself bench tasks where access matters

Fits Standard Dog Hole Workstations

If your bench already uses 3/4 inch dog holes, setup is quick. Drop the peg in place, position the workpiece, and tighten the dial. It is an easy way to get more function out of a bench or portable workstation you already own.

• Peg fits standard 3/4 inch bench dog holes
• Also works on surfaces where you can drill matching holes

Adjust for Different Shapes and Widths

The clamp is built to be flexible, not fussy. The long pushrod and swiveling clamp shoe help it adapt to more than just flat, square stock, which is useful when you are working with assemblies or odd-shaped parts.

• Long pushrod provides a 4-3/4 inch adjustment range
• Swiveling clamp shoe helps hold multiple shapes from different angles

What’s in the Box

• (1) Kreg In-Line Clamp

Key Specifications

Clamp Type	Specialty
Max Opening	4.75 in
Throat Depth	4.75 in
Clamping Force	250 lbs
Bench Dog Hole Size	3/4 in
Material	Plastic
Weight	0.3 lbs
Made In	United States

Compatibility

Workbench Fit Designed to fit standard 3/4 inch bench dog holes. Portable Workstations Works well with the Kreg Mobile Project Center. Work Surface Requirement Can also be used on other work surfaces where 3/4 inch holes can be drilled.

Built For

Woodworking Cabinet Assembly Bench Work Project Glue-Ups DIY / Hobbyist Trim and Finish Work

Pro Tip

Set up a row of 3/4 inch dog holes along the edge of your bench instead of relying on one fixed spot. That lets the Kreg In-Line Clamp reach different panel sizes faster and makes it a lot more useful for repeat assembly work.

Warranty & Support

90-day warranty.

Tool Nut’s Take

Tool Nut’s Take

A smart little clamp that clears the workspace

The Kreg KBCIC In-Line Clamp is the kind of bench accessory that quietly fixes an annoying problem: you need clamping pressure, but you also need access to the top of the workpiece.

• Who it’s for: Woodworkers, cabinet guys, and DIY users working on benches with 3/4 inch dog holes.
• Why it stands out: Side clamping, a 250 lb holding rating, and a swiveling shoe make it more useful than it first looks.
• Worth knowing: This is a bench-hole clamp, so it shines most when your work surface is already set up for 3/4 inch dog holes or you are willing to drill them.

Common Questions

• What size bench dog hole does it fit? It fits standard 3/4 inch bench dog holes.
• How much clamping force does it apply? The clamp applies up to 250 pounds of clamping force.
• How much adjustment range does it have? The long pushrod provides a 4-3/4 inch adjustment range.
• Can it clamp irregular shapes? Yes. The clamp shoe swivels to hold multiple shapes and clamp from different angles.
