Key Features
Dial In Hardware Placement The Kreg Cabinet Hardware Jig Pro XL is built to place cabinet pulls and knobs accurately without laying out every hole by hand. That means cleaner installs, fewer mistakes, and better-looking finished work. Hardened Steel Guides Three adjustable hardened steel drill guides hold up to repeated drilling and let you position holes where you need them. That matters when you’re installing single knobs or wider multi-hole pulls across a full kitchen run. Handles XL Pulls This hardware installation jig is designed to cover everything from small knobs to extra-large pulls. If you work on oversized drawer hardware, the longer layout range is the whole point.
Overview
The Kreg Cabinet Hardware Jig Pro XL, model KHI-PULLPROXL, is a cabinet hardware installation jig made for accurate, repeatable placement of knobs and pulls on doors and drawers. This is a cabinet hardware jig designed for drilling precise mounting holes for knobs and pulls. If you install a lot of cabinet hardware and want to stop measuring, marking, and second-guessing every hole, this is the kind of setup that saves time and cuts down on expensive mistakes.
What makes this version matter is its range. The image data shows it is built to install everything from extra-large pulls to small knobs, so it is aimed at jobs where standard spacing tools come up short. That makes it especially useful for larger drawer fronts, wide pulls, and modern cabinet layouts where oversized hardware is part of the design.

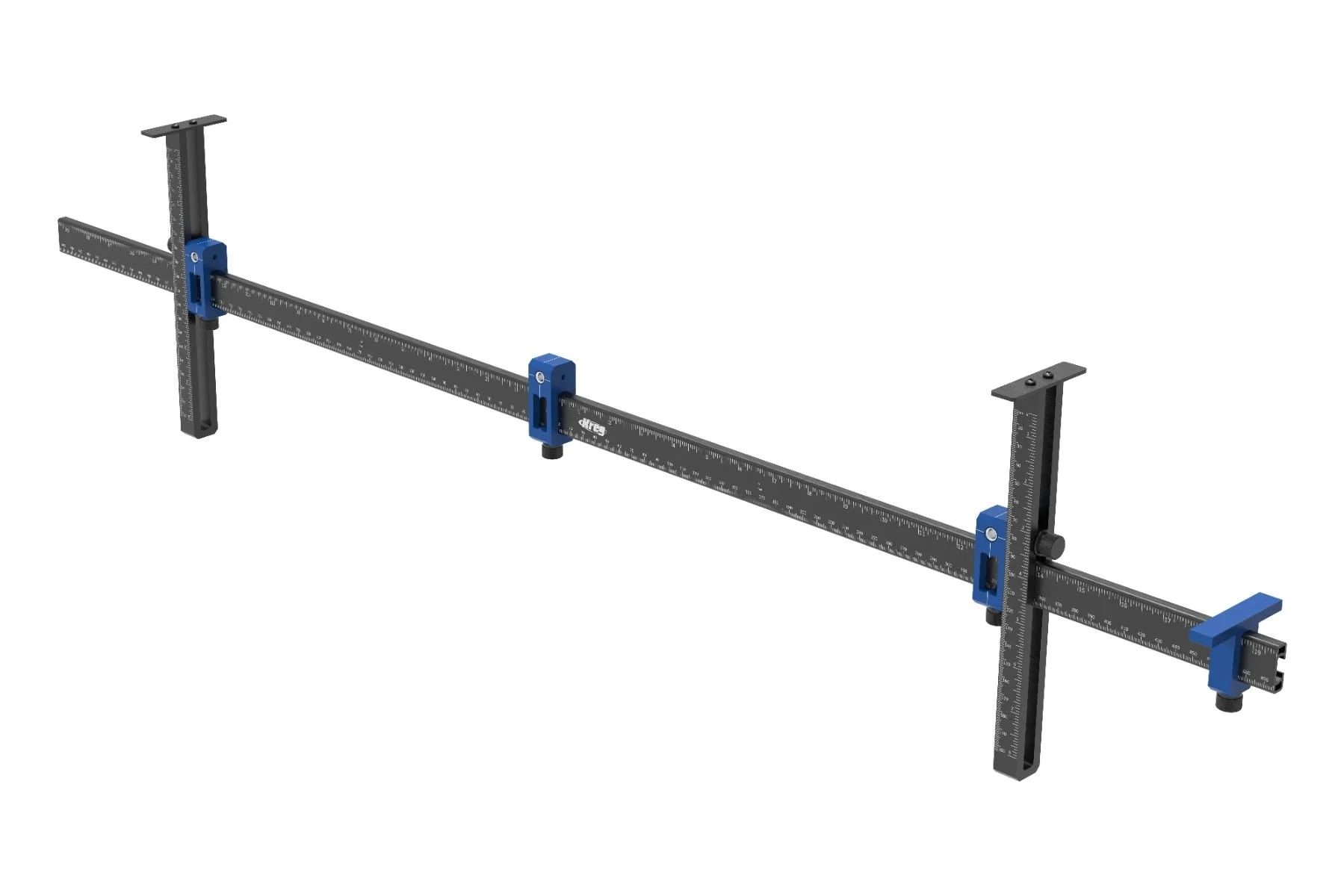

The working setup is straightforward. A long ruled bar gives you repeatable horizontal placement, while the vertical arms register off the cabinet face for consistent alignment. The three drill guides are adjustable and can be positioned along the bar to match different spacing needs, including single knobs and 3-hole pulls. In practical terms, that gives you flexibility without having to switch templates or build shop-made jigs for odd layouts.
Kreg also calls out a patent-pending two-point contact design that stabilizes the jig during setup. That matters more than it sounds like. When a jig stays planted on the drawer or door face, the hole location stays where you set it instead of drifting while you reach for the drill. On finished cabinetry, that extra stability is the difference between a clean install and a very bad afternoon.
The drill guides themselves are hardened steel, which is what you want on a tool like this. Drill bushings take repeated contact from bits, and softer guide material can wear over time. Hardened guides help the jig stay accurate over repeated installations, which is important for remodelers, cabinet installers, finish carpenters, and anyone batching out lots of hardware in one project.
From a workflow standpoint, this tool is about repeatability. Once you have the location dialed in, you can move from drawer to drawer or door to door with the same setup and get matching results. That is useful on kitchens, vanities, built-ins, laundry rooms, and office cabinetry where visual consistency matters. The ruled layout surfaces also make adjustment easier when you’re matching hardware placement across different panel sizes.
This Kreg jig is a good fit for pros who install cabinet hardware regularly, but it also makes sense for serious DIY users taking on a full kitchen or built-in project. If you are only installing one or two knobs, a simple template may get you by. If you are doing a whole room, working with long pulls, or want a more reliable setup for finished cabinets, the Kreg Cabinet Hardware Jig Pro XL earns its spot pretty quickly.
Accurate Placement on Finished Cabinetry
When you’re drilling into painted or finished drawer fronts, accuracy matters more than speed until the setup is right. This jig is built to hold position on the work so you can drill with more confidence and less layout guesswork.
- Patent-pending two-point contact design helps stabilize the jig on the cabinet face
- Long ruled bar helps keep pull locations consistent across multiple drawers
Set It for Knobs or Wide Pulls
The big advantage here is range. This jig is intended to cover small knobs and extra-large pulls, so you can use one layout tool across a wider mix of cabinet hardware styles.
- Designed for installing extra-large pulls as well as small knobs
- Useful when a project mixes oversized drawer pulls with standard door hardware
Built for Repeat Use
A cabinet hardware template only stays useful if the guide points hold up. Kreg uses adjustable hardened steel drill guides here, which is the right choice for a jig that may see a lot of holes over time.
- Three adjustable drill guides can be positioned along the bar
- Guide layout supports single knobs and 3-hole pull spacing
Key Specifications
| Model Number | KHI-PULLPROXL |
|---|---|
| Tool Type | Cabinet hardware installation jig |
| Drill Guides | 3 adjustable hardened steel drill guides |
| Hardware Range | Extra-large pulls to small knobs |
| Layout Style | Adjustable ruled bar with vertical positioning arms |
| Stability Feature | Patent-pending two-point contact |
| Applications | Single knobs and 3-hole pulls |
| Brand | Kreg Tool |
Built For
Cabinet Hardware Installation Cabinetry Finish Carpentry Remodeling Kitchen Upgrades Built-Ins DIY / Hobbyist General Contracting
Pro Tip
If you’re installing the same pull across a full bank of drawers, take the extra minute to lock in one setup on a sample front first. Once the Kreg Cabinet Hardware Jig Pro XL is dialed, leave the spacing alone and run the whole batch so every piece lands in the same spot.
Tool Nut’s Take
Tool Nut’s Take
Why the Kreg Cabinet Hardware Jig Pro XL Makes Sense
This is the kind of jig that pays for itself the first time it keeps you from misdrilling a finished drawer front.
- Who it’s for: Cabinet installers, finish carpenters, remodelers, and serious DIY users putting on more than just a couple of knobs.
- Why it stands out: The longer layout capability, three adjustable hardened steel drill guides, and added stability from the two-point contact design make it more useful than a basic one-size template.
- Worth knowing: This is about accurate, repeatable hardware installation, not speed for speed’s sake. If you mostly deal with oversized pulls, the XL format is the reason to buy this version.
Common Questions
- What is this tool used for? It is used to position and drill mounting holes for cabinet knobs and pulls on doors and drawers.
- Can it handle large cabinet pulls? Yes. The image data specifically shows the jig is intended for extra-large pulls as well as small knobs.
- How many drill guides does it have? It has three adjustable hardened steel drill guides.
- Is it only for single-hole hardware? No. The images indicate it can be set up for single knobs and for 3-hole pull spacing.
