Key Features
True 32 mm spacing Drills shelf pin holes on 1-1/4 inch (32 mm) centers, so adjustable shelves sit level and your rows stay consistent from top to bottom. Hardened-steel guides Hardened-steel drill guides keep the bit from walking, which is how you get clean holes without the wobble that makes shelves rock. Ready-to-drill kit Includes the 1/4 inch brad-point bit and shelf pins, plus on-board storage to keep the small parts from disappearing between jobs.
Overview
The Kreg KMA3225 Shelf Pin Jig 1/4 in is a shelf pin drilling jig for woodworking and cabinetmaking that helps you drill straight, evenly spaced shelf pin holes fast. This is a shelf pin jig designed for drilling adjustable shelf holes in cabinets and furniture. Model Number: KMA3225.
The big win is repeatable spacing: the drill guides are laid out on 1-1/4 inch (32 mm) centers, which is the standard used in the 32 mm cabinet system. That means your hole rows line up cleanly from one panel to the next, and you can add shelves to existing bookcases or build new cabinet sides without laying out every hole by hand.
Accuracy comes from the hardened-steel drill guides. They keep the bit centered and supported so the hole stays round and clean. Pair that with the included 1/4 inch (6 mm) brad-point bit, and you get holes that start where you want them and finish without blowing out the surface as easily as a standard twist bit.
For real shop and jobsite workflow, the jig is made to move quickly: you can drill six holes per setup, then reposition to keep going. If you are doing tall pantry sides or long bookcase panels, you can snap two jigs together to extend the run and keep the same spacing without remeasuring.
Kreg also built in features that help beyond shelves. The jig is 32 mm system compatible for layout tasks like locating hardware positions in frameless cabinets, including concealed hinge plate screw locations and the front hole location for drawer slide installation, using the molded alignment marks and indicator window.
If you want adjustable shelves that look like they came out of a cabinet shop, this jig kit is the straightforward way to get there, whether you are a pro installer cleaning up site-built shelving or a DIYer upgrading closets and built-ins.
Clean, Consistent Shelf Pin Holes
You are buying consistency. The Kreg layout and guide system keeps every hole the same distance apart, so shelves sit flat and your cabinet sides match.
- Drills on 1-1/4 inch (32 mm) centers for predictable shelf spacing
- Uses 1/4 inch (6 mm) shelf pins and includes a matching brad-point bit
Made to Run Straight Rows
The hardened-steel guides do the hard part for you: they support the bit so it does not wander, which is what keeps the hole rows straight and clean.
- Hardened-steel drill guides for clean, precise holes
- Alignment window and marks help keep placement consistent between panels
On-Board Storage That Actually Helps
This kit is small, and the small parts are the first thing to get lost. Built-in storage keeps the bit and setup parts together so you can grab the jig and get to drilling.
- On-board storage for the included bit and accessories
- Designed to drill six holes per setup, then reposition for the next run
What’s in the Box
- (1) Kreg Shelf Pin Jig assembly
- (1) 1/4 inch (6 mm) brad-point drill bit
- (1) Stop collar
- (1) Hex wrench
- (1) Indicator pin
- (1) Set screw

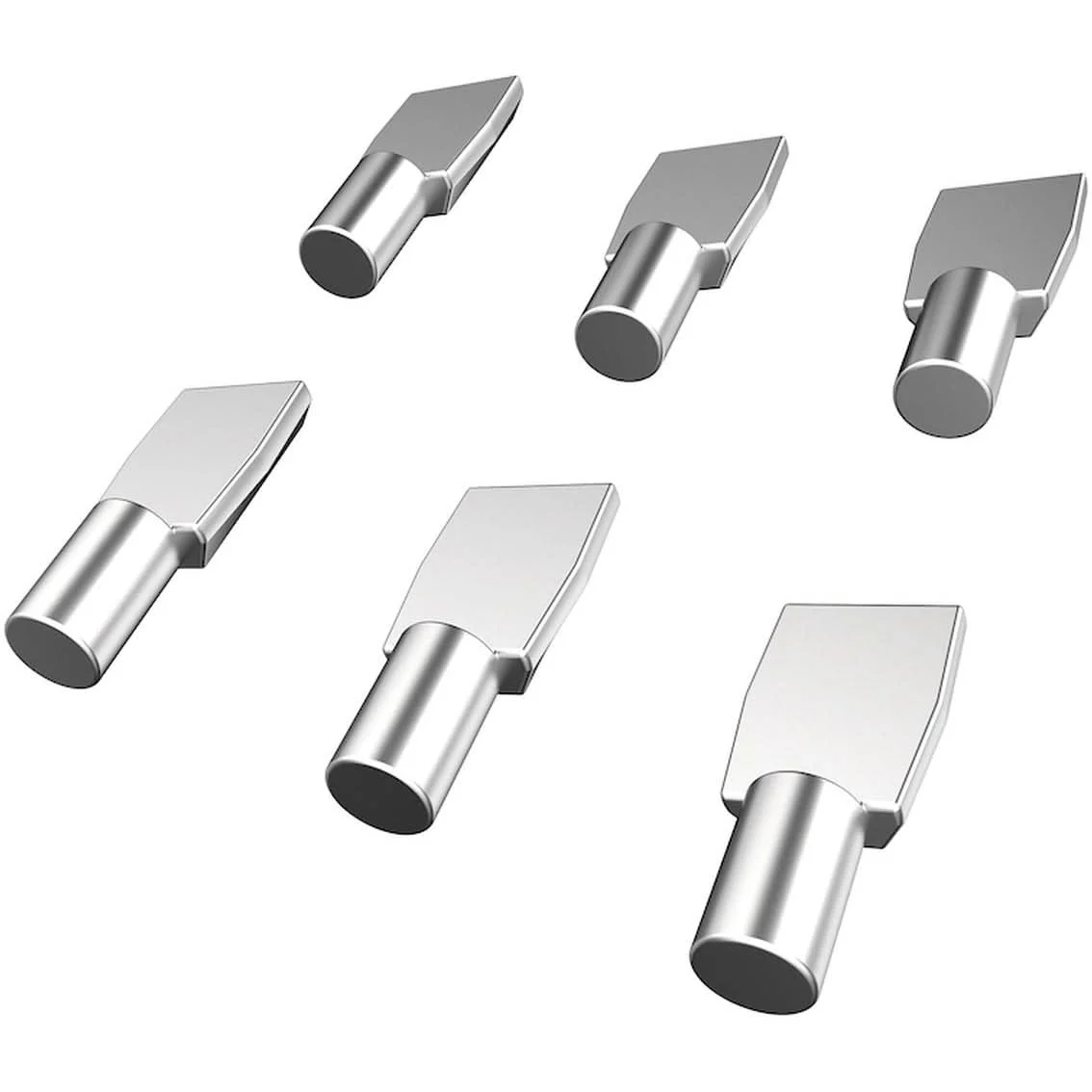

- (20) 1/4 inch shelf pins
Key Specifications
| Hole Spacing | 1-1/4 in (32 mm) increments |
|---|---|
| Shelf Pin Size | 1/4 in (6 mm) |
| Jig Material | Acrylonitrile Butadiene Styrene (ABS) |
| Weight | 0.6 lbs |
| Overall Size | 9 in x 3.88 in x 1.62 in |
| Proposition 65 | Yes (warning required) |
Compatibility
32 mm Cabinet System Drill guides are centered on 1-1/4 inch (32 mm) spacing for 32 mm system layout, including hinge plate and drawer slide locating tasks in frameless cabinets. Bit Size Designed for 1/4 inch (6 mm) shelf pins and includes a matching 1/4 inch brad-point drill bit.
Built For
Cabinetry Woodworking Built-ins and shelving Closet upgrades Frameless cabinet hardware layout Furniture repair and retrofits
Pro Tip
If you are drilling a tall panel, snap a second jig on before you start so you can leapfrog the jig down the workpiece and keep the same 32 mm spacing without remeasuring your next run.
Warranty & Support
Drill guides feature a lifetime warranty.
Tool Nut’s Take
Tool Nut’s Take
Kreg KMA3225 Shelf Pin Jig 1/4 in: the fast way to make shelves look professional
If you have ever tried to freehand shelf pin holes, you already know why a guided jig matters.
- Who it’s for: Anyone building or retrofitting adjustable shelving in cabinets, closets, and bookcases.
- Why it stands out: True 32 mm spacing plus hardened-steel guides, and it expands by snapping two jigs together for longer runs.
- Worth knowing: It is set up for 1/4 inch pins, so match your hardware to that size.
Common Questions
- What spacing does this jig drill? 1-1/4 inch (32 mm) increments.
- What size shelf pins does it use? 1/4 inch (6 mm) shelf pins.
- Can I drill longer rows than the jig length? Yes. You can snap two jigs together to drill longer runs of holes.
- Is it useful for frameless cabinet hardware layout? Yes. It is 32 mm system compatible for locating hinge plate screws and for helping locate the front hole for drawer slide installation.
