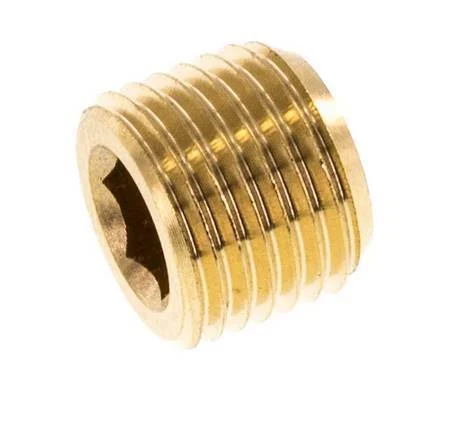

M10x1 Brass Closing plug with Inner Hex without collar 16 Bar [10 Pieces]

This end cap is designed with male threaded connections. It also has an inner hexagon for tightening/loosening. It is an end cap, so it has no output port. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

Cons:

• It requires a sealant to make a proper seal

FL1-M series

The FL1-M series consists of fittings with 1 connection port, so they are end caps. G, R, NPT, and metric (standard and conical) threads with a size range of 1/8 inch to 2 inches (metric range from 5 to 14 mm). Designed with either an external hex (to be used with a wrench for example) or an inner hex for an allen wrench. Material options of brass, steel, or stainless steel. They are designed to stop the media flow.

Specifications

Thread : M10 x 1
Connection type : Outer thread metric
Fitting features : Capped
Material : Brass
Max pressure at 20 °C (bar) : 16
Material connection 1 : Brass
With drain : No
