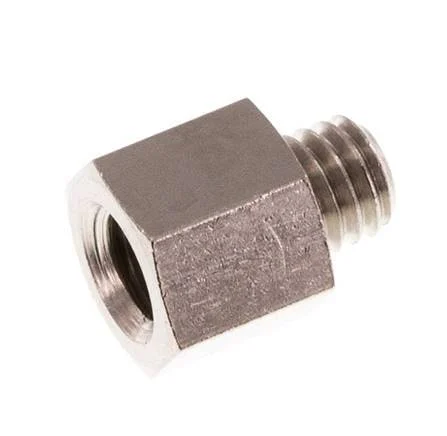

M5 F/M Nickel plated Brass Extension 16 Bar – 7 mm [5 Pieces]

This extension is designed with male and female threads. Connection 1 has female M 5 threads. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a total length of 7 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 8 mm nut to be tightened with a wrench.

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : M5
Connection type : Inner thread metric,Outer thread metric
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : 1-part
Length (mm) : 7
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Wrench width (mm) : 8
