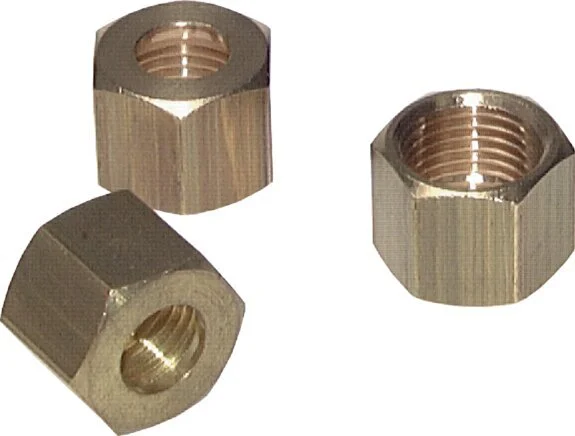

M8x1 x 4mm Brass Union nut for Compression fitting [10 Pieces]

This union nut (female threads) is designed to be used with a compression ring fitting. The nut has a M8 x 1 threads, making it suitable for an outer pipe diameter of 4 mm. To install, the union nut should be slid over the pipe first. Then, the pipe can be inserted into the compression ring fitting before tightening the union nut. This will ensure a leak-free seal. Fitting is made out of brass. It is made in accordance with the DIN EN 1254-2 standard.

UNL series

The UNL series includes union nuts designed for compression and/or cutting ring fittings. With threads from M8 x 1 to M52 x 2, they are ideal for pipe diameters ranging from 4 to 42 mm. Made out of brass, steel, or stainless steel 316 Ti (1.4571) so there is always a material suitable for your application. DIN 2353 load classes range from LL (very light) to S (heavy).

Specifications

Connection size : M8 x 1
Outer diameter (mm) : 4
Connection type : Inner thread metric
Material : Brass
Max pressure at 20 °C (bar) : 150
Standard : DIN EN 1254-2
Size of threaded connection [inch] : M8 x 1
