Key Features
Controlled Plunge CutsThe plunge mechanism gives you a depth range from 0 in. to 1-3/8 in., so you can start cuts cleanly in the middle of a workpiece instead of coming in from an edge. Fine Depth ControlFine adjustment with three preset depth stops makes it easier to repeat the same routing depth on hinge mortises, grooves, and template work without guessing. Compact Router UpgradeThis compact router plunge base expands what compatible Makita routers can do by adding plunge routing capability and support for industry standard template guides.
Overview

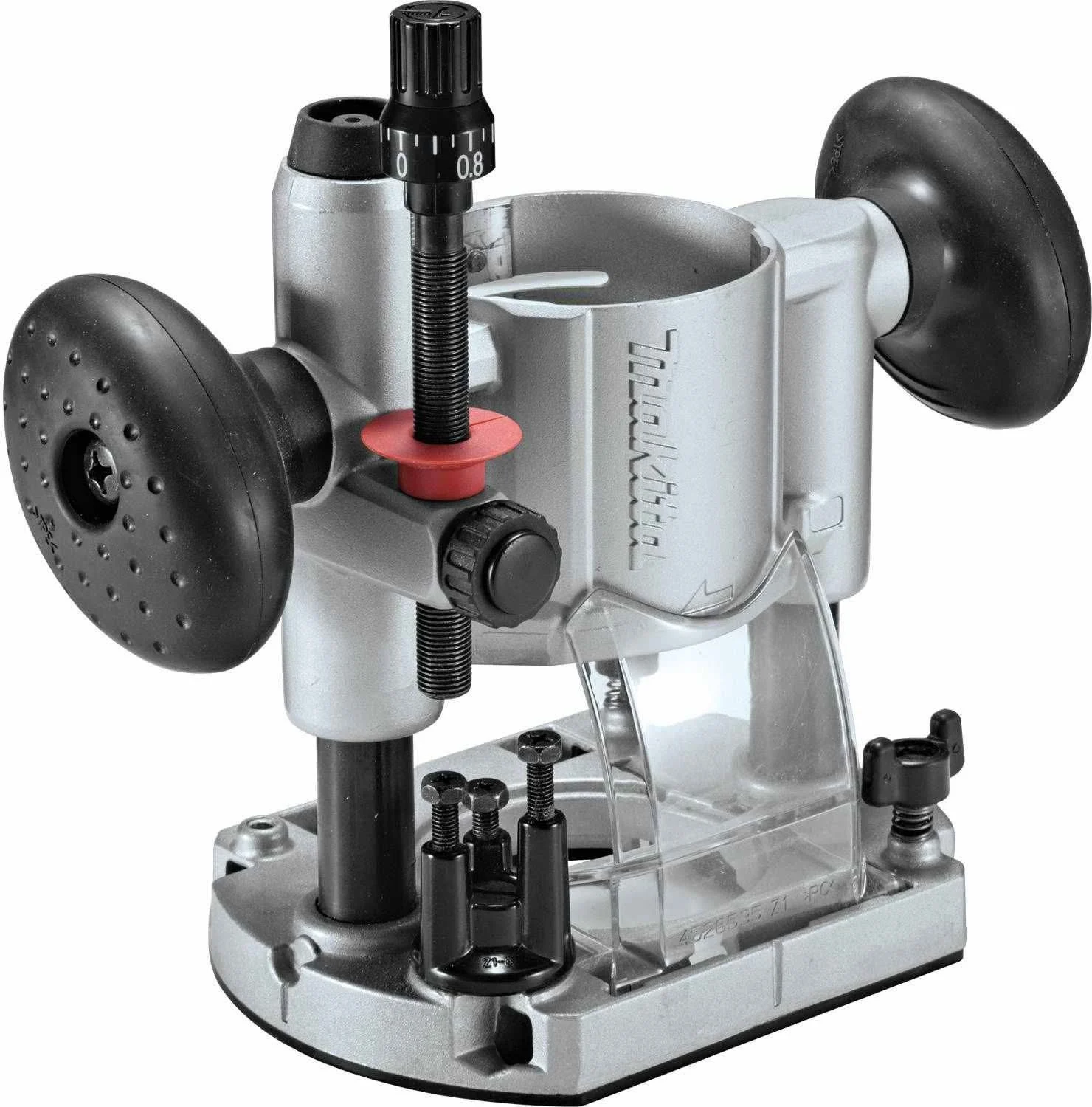

The Makita 196094-2 Compact Router Plunge Base is a router base accessory built for Makita compact routers that need precise plunge routing control. This is a router plunge base designed for controlled depth routing, template work, and clean cut entry into a workpiece. Model Number 196094-2. If you already have a compatible Makita compact router, this accessory is what turns it into a more capable tool for mortising, inlay work, grooves, and other routing jobs where fixed-base routing is not the best fit.
The big story here is control. The plunge base provides a plunge capacity range from 0 in. to 1-3/8 in., which matters anytime you need to start a cut in the middle of material instead of at the edge. That is useful for hinge recesses, dadoes, decorative routing, and template-guided cuts. Makita also builds in fine depth adjustment with three preset depth stops, so you can dial in depth more accurately and repeat that setting across multiple pieces without a lot of trial and error.
From a design standpoint, this base is set up to make a compact router more stable and easier to manage during plunge routing. The conveniently located plunge lock lever keeps operation straightforward, and the sub-base accepts industry standard template guides for added flexibility. That template guide compatibility is a practical feature, not a throwaway spec. It means you can use common guide-based routing setups for pattern work and repeatable cuts instead of being locked into a limited accessory setup.
Makita also includes a removable clear plastic shield engineered to block airborne debris. On real routing work, that matters because compact routers throw chips right where you’re trying to see your layout line and base position. The shield helps manage that mess at the point of cut while still letting you keep sight of the work area. It is a small feature, but it makes the tool more practical on finish work and detail routing where visibility counts.
Compatibility is another reason this accessory makes sense. The Makita plunge base is made for Makita compact router models GTR01, XTR01, RT0701C, and RT0700C, including Makita’s 18V LXT compact router platform where listed. If you are already using one of those routers, adding this plunge base is a more efficient move than buying a separate dedicated plunge router for lighter routing tasks. It gives your existing router more range without changing platforms.
This Makita router accessory is best suited for woodworkers, finish carpenters, cabinet installers, trim crews, remodelers, and serious DIY users who want better depth control from a compact router. If your work involves small to medium routing jobs where accuracy matters more than brute size, this base is a smart add-on. If you do mostly edge profiling, a fixed base may stay on the tool more often. But for plunge cuts, pattern routing, and repeat depth work, this is the attachment that makes the router a lot more useful.
Dial In Cleaner Plunge Routing
If you want your compact router to handle plunge cuts with more control, this base is the upgrade that gets you there. It adds the kind of depth adjustment and repeatability that matters for trim, cabinetry, and template-guided woodworking.
- Plunge depth range from 0 in. to 1-3/8 in.
- Fine depth adjustment with 3 preset depth stops
- Sub-base accepts industry standard template guides
- Removable clear plastic shield helps block airborne debris
What’s in the Box
- (1) Makita Compact Router Plunge Base
Router motor is not included.
Key Specifications
| Product Type | Router Base |
|---|---|
| Plunge Capacity | 0 in. to 1-3/8 in. |
| Depth Stops | 3 preset depth stops |
| Material | Plastic |
| Weight (lbs) | 3.5 lbs |
| Package Depth | 5.5 in. |
| Package Width | 9 in. |
| Package Height | 8 in. |
Compatibility
Compatible Routers For use with Makita compact router models GTR01, XTR01, RT0701C, and RT0700C. Template Guides Sub-base accepts industry standard template guides for pattern routing and repeatable cuts.
Built For
WoodworkingFinish CarpentryCabinet InstallationTrim WorkTemplate RoutingGrooves and MortisesRemodelingDIY / Hobbyist
Pro Tip
If you’re doing repeat hinge mortises or inlay work, set one of the preset depth stops to your finished depth before your first test cut. Once it is dialed in, you can move from piece to piece a lot faster without chasing the setting every time.
Warranty & Support
No manufacturer’s warranty is listed for this product.
Tool Nut’s Take
Tool Nut’s Take
Makita 196094-2 Compact Router Plunge Base Makes a Small Router Way More Useful
The Makita 196094-2 Compact Router Plunge Base is the add-on that makes a compatible compact router feel like a much more serious precision routing setup.
- Who it’s for: Woodworkers, trim carpenters, cabinet guys, and remodelers who already own a compatible Makita compact router and want accurate plunge routing without stepping up to a larger router.
- Why it stands out: You get real plunge capability, fine depth adjustment, three preset depth stops, and template guide acceptance in one accessory.
- Worth knowing: This is an accessory, not a complete router, so it makes the most sense if you are already on one of the supported Makita compact router models.
Common Questions
- What type of product is this? This is a router plunge base accessory for compatible Makita compact routers.
- What is the plunge depth range? The plunge capacity is 0 in. to 1-3/8 in.
- Does it support template guides? Yes. The sub-base accepts industry standard template guides.
- Which Makita routers does it fit? It is listed for Makita compact router models GTR01, XTR01, RT0701C, and RT0700C.
