Key Features
Fastening ControlThe 4-speed setup, Assist Mode, and two Tightening Modes give you more control than a basic impact driver. That means fewer stripped screws, less cam-out, and cleaner results in wood, metal, and finish work. Compact Brushless PowerMakita packs a brushless motor, 3,600 RPM, and 1,590 in-lbs of max torque into a body that is only 4-1/2 inches long. You get real driving power without carrying a bulky tool all day. Jobsite ReadyA 360-degree LED light ring, all-metal gear housing, and Extreme Protection Technology help this cordless impact driver work better in dim spaces and tougher jobsite conditions.
Overview

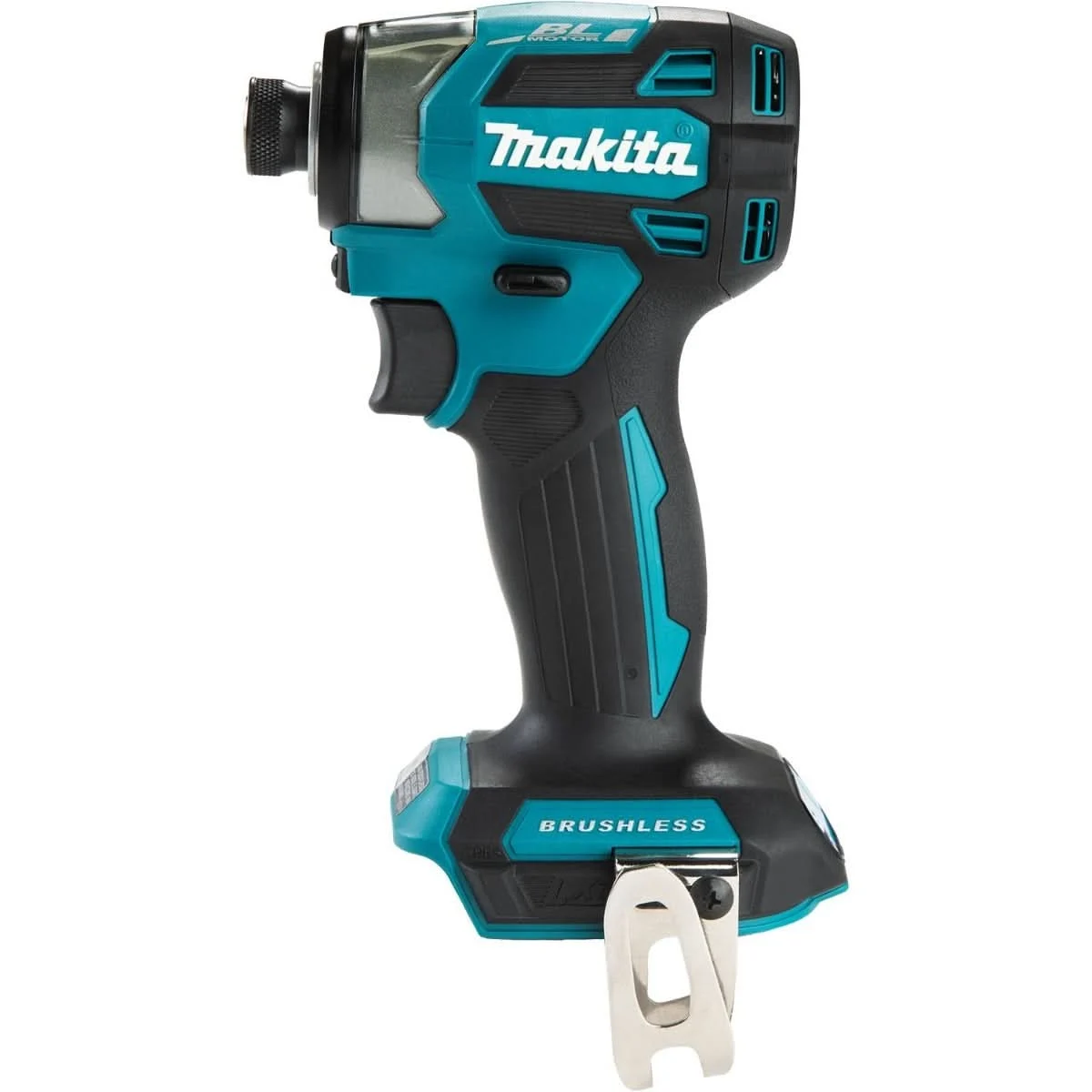

The Makita XDT20Z 18V LXT Lithium-Ion Brushless Cordless Quick-Shift Mode 4-Speed Impact Driver, Tool Only is built for users who need more control than a one-speed or two-speed driver can offer. This is a cordless impact driver designed for fastening screws, lag bolts, and self-drilling fasteners across wood, metal, cabinetry, and general construction work. Model Number: XDT20Z. If you already run Makita LXT batteries, this bare tool gives you a compact driver with serious speed, smart mode control, and jobsite durability.
What separates this tool from a basic impact driver is how much control Makita gives you over the drive. The brushless motor delivers up to 3,600 RPM, up to 3,800 impacts per minute, and 1,590 in-lbs of max torque, but the point is not just raw output. The 4-speed power selection lets you match the tool to the fastener and material instead of muscling through everything at full blast. That matters when you are driving cabinet screws one minute and running structural fasteners the next.
Makita also built in the modes that working pros actually use. Assist Mode starts at low speed until the screw begins to bite, which helps reduce screw cam-out and cross-threading. Quick-Shift Mode automatically manages speed and torque for more efficient fastening, especially when you want a cleaner finish and better control at the end of the drive. Two Tightening Modes are there for self-drilling screws in thick or thin gauge metal, helping you move faster without chewing up the fastener or the work surface.
The design is one of the big selling points here. At only 4-1/2 inches long, the Makita XDT20Z impact driver fits where larger drivers get awkward, like inside cabinets, between studs, or above your head when you are working off a ladder. The one-touch 1/4 inch hex chuck makes bit changes quick, and the dual ball bearing chuck design helps reduce bit wobble and runout. That is the kind of detail you notice when you are driving a long string of fasteners and want the bit to stay planted instead of dancing around.
Makita did not ignore jobsite practicality either. The built-in 360-degree LED light ring throws light around the chuck instead of from a single point, which helps cut shadows when you are working in corners, mechanical spaces, or under cabinets. The all-metal gear housing adds durability where it counts, and the rubberized grip helps keep the tool comfortable through repetitive fastening. Reverse rotation auto-stop is another smart touch, since it stops rotation and impact when a fastener is loosened adequately, helping prevent dropped hardware and over-loosening.
On the battery side, this tool is part of the Makita 18V LXT platform and is compatible with Makita 18V Lithium-Ion batteries with the Star symbol. That matters if you are already invested in the LXT system because this tool drops right into the same battery and charger setup as the rest of your Makita cordless lineup. Star Protection Computer Controls allow the tool and battery to communicate during use to help protect against overloading, over-discharging, and overheating. Makita also equips this driver with Extreme Protection Technology for added dust and water resistance in harsher conditions.
Who should buy it? This is a strong fit for electricians, HVAC techs, remodelers, punch-list carpenters, cabinet installers, metal stud crews, and anyone who wants one impact driver that can handle both finesse work and production fastening. If your work shifts between delicate screws and harder-driving applications, the Makita XDT20Z gives you a lot more usable control than a simple full-power impact driver. If you only ever run large fasteners at full speed, you may never use all the modes. But if clean fastening matters, this one earns its place fast.
Makita XDT20Z 18V LXT Lithium-Ion Brushless Cordless Quick-Shift Mode 4-Speed Impact Driver, Tool Only in Tight Spaces
Size is a real advantage with this impact driver. The short 4-1/2 inch overall length helps you get into areas where a larger driver forces awkward hand positions or sends you looking for a right-angle attachment.
- Only 4-1/2 inches long for better access in cabinets, corners, and stud bays
- Rubberized grip and compact body help reduce fatigue during repetitive fastening
- One-touch 1/4 inch hex chuck makes fast bit swaps between screws, lags, and self-drilling fasteners
More Precision, Less Rework
The mode controls are what make this tool stand out. Instead of hitting every screw at full power, you can tailor the response for cleaner starts, more consistent seating, and better results on delicate or specialty fasteners.
- 4-speed selector covers low-control fastening through high-output driving
- Assist Mode helps reduce screw cam-out and cross-threading by starting at low speed
- Two Tightening Modes are tuned for self-drilling screws in thick or thin gauge metal
- Quick-Shift Mode balances speed and torque for more efficient fastening
What’s in the Box
- (1) Makita XDT20Z 18V LXT Brushless 4-Speed Impact Driver
Battery and charger are not included. This is a tool-only, bare-tool configuration.
Key Specifications
| Voltage (V) | 18V |
|---|---|
| Motor Type | Brushless |
| Chuck / Shank | 1/4 in Hex |
| No-Load Speed (RPM) | 0 to 1,100 / 0 to 2,100 / 0 to 3,200 / 0 to 3,600 |
| Impacts Per Minute (IPM) | 0 to 1,100 / 0 to 2,600 / 0 to 3,600 / 0 to 3,800 |
| Maximum Torque (in-lbs) | 1,590 in-lbs |
| Overall Length (in) | 4-1/2 in |
| Net Weight (lbs) | 3.3 lbs with battery sold separately |
Compatibility
Battery Platform Works with Makita 18V LXT Lithium-Ion batteries. Star Protection Compatible with Makita 18V batteries with the Star symbol for Star Protection Computer Controls communication. Bit Interface Uses standard 1/4 inch hex insert bits for impact driver fastening applications.
Built For
ElectricalHVACCarpentryRemodelingCabinet InstallationMetal Stud FramingGeneral ContractingPrecision Fastening
Pro Tip
If you are driving self-drilling screws into metal, start with the Tightening Modes instead of the highest speed. You will usually get a cleaner seat with less chance of snapping the screw head or chewing up the panel once the fastener breaks through.
Warranty & Support
3-year limited warranty.
Tool Nut’s Take
Tool Nut’s Take
One of the smarter impact drivers in Makita’s lineup
The Makita XDT20Z 18V LXT Lithium-Ion Brushless Cordless Quick-Shift Mode 4-Speed Impact Driver, Tool Only makes a strong case for itself if you care about control as much as power.
- Who it’s for: Pros and serious DIY users who move between finish fastening, metal fastening, and everyday construction work and want one impact driver that can adapt.
- Why it stands out: The 4-speed setup, Assist Mode, Tightening Modes, Quick-Shift Mode, and compact 4-1/2 inch body make it more versatile than a standard impact driver.
- Worth knowing: This is a bare tool, so it makes the most sense for users already on Makita 18V LXT. If that is you, it is an easy upgrade. If not, remember to budget for battery and charger.
Common Questions
- What battery platform does this impact driver use? It is part of the Makita 18V LXT system and works with Makita 18V Lithium-Ion batteries, including batteries with the Star symbol for Star Protection compatibility.
- What is the maximum torque output? The Makita XDT20Z delivers up to 1,590 in-lbs of maximum torque.
- Does it have multiple speed settings? Yes. It has 4 speed settings with no-load speed ranges from 0 to 1,100, 2,100, 3,200, and 3,600 RPM depending on the selected mode.
- What makes this different from a basic impact driver? Beyond the brushless motor and compact size, it adds Assist Mode, Quick-Shift Mode, two Tightening Modes, reverse auto-stop, and a 360-degree LED light ring for better control and visibility.
