Key Features
Drives 16 Gauge Finish NailsThis Makita angled finish nailer drives 16 gauge angled nails from 1-1/4 in. to 2-1/2 in., so it covers common interior trim work without dragging around a hose and compressor. Long Run Between ChargesWith up to 2,750 nails per charge on a 5.0Ah battery, you spend more time hanging trim and less time swapping packs or stopping to recharge. Fast Adjustments On The FlyThe tool-free depth adjustment and easy-clear nose make it quicker to tune nail depth and clear jams when material conditions change from piece to piece.
Overview

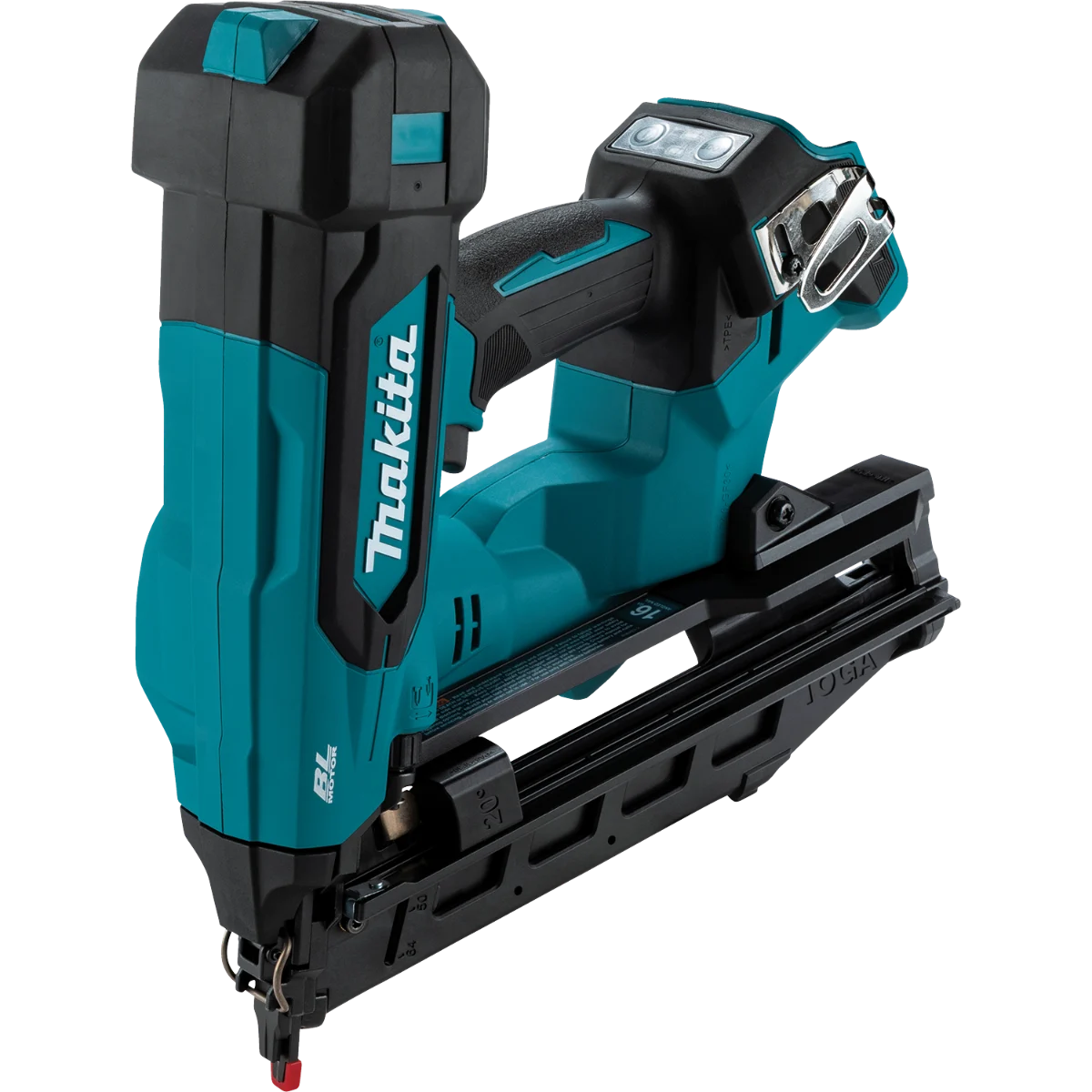

The Makita XNB06Z 18V LXT Brushless Cordless 2-1/2-in. Angled 16-Gauge Finish Nailer is built for trim carpenters, remodelers, punch-list work, and serious DIY users who want cordless finish nailing without giving up clean placement and solid drive power. This is a finish nailer designed for interior trim fastening and finish carpentry. Model Number: XNB06Z. It drives 16 gauge angled nails from 1-1/4 in. to 2-1/2 in., runs on the Makita 18V LXT battery platform, and is sold as a tool only option for users who already own compatible batteries and chargers.
On the job, the big advantage here is mobility. You get the freedom of a cordless nailer with no air hose to drag through a finished room and no compressor to set up, move, or listen to all day. Makita states the XNB06 delivers up to 1.5x faster nailing speeds compared to the earlier XNB02Z, and it is designed to drive nails sub-flush in both hardwood and softwood applications. That matters when you are moving from prefinished casing to baseboard to door trim and do not want a tool that struggles when the material changes.
The nose and magazine design are set up for real trim work, not just spec-sheet bragging. The slim nose helps with access in tighter spots and gives you a better sight line for accurate placement, which is a big deal when you are working close to profiles, corners, or narrow reveals. It uses 16 gauge angled nails with a 20 degree collation angle and holds up to 110 nails in the magazine, so you get fewer reloads while still using a format that makes sense for detailed finish work.
Makita also got the day-to-day usability right. The tool-free depth adjustment lets you fine tune for flush or countersink nailing without breaking rhythm, and the tool-free easy-clear nose speeds up nail extraction when a jam happens. Add in the anti-dry fire mechanism and you have a nailer that helps avoid blank firing near the end of the strip, which saves wear on the work surface and reduces those annoying interruptions that slow down finish work.
For handling, this is one of the lighter cordless options in Makita’s lineup. Makita lists it at 6.6 lbs. with battery and says it is up to 14% lighter than the XNB07. That lower weight, plus the compact body, ergonomic rubberized grip, built-in LED light, and retractable extra-wide belt hook, makes it easier to carry room to room, use overhead, or work through a long trim install without the tool feeling clumsy.
Battery platform matters if you are already invested in Makita, and the XNB06Z fits right into the 18V LXT system. It is compatible with Makita 18V LXT lithium-ion batteries that have the Star symbol, and Makita’s Star Protection Computer Controls are designed to help guard against overload, over-discharge, and overheating. Runtime is strong for this class too, with up to 2,750 nails per charge on a 5.0Ah battery and up to 1,100 nails on a 2.0Ah battery. For trim crews and service work, that means you can usually get through a lot of punch and install work on a single pack.
The XNB06Z makes the most sense for finish carpentry, interior trim, crown, baseboard, chair rail, wainscoting, cabinetry touch-up, and remodeling work where setup time and mobility matter. If you already run Makita 18V LXT batteries and want a cordless finish nailer that covers the common 16 gauge angled nail range with solid runtime and practical jobsite features, this is a smart fit. If you need a ready-to-run kit, just remember this version is the bare tool, so battery and charger are sold separately.
Better Access For Detailed Trim Work
The slim nose design helps you place nails more accurately when you are working around tight profiles, corners, and finished trim where a bulky nose gets in the way.
- Slim nose improves access in confined areas
- Built-in LED light helps when working in corners, closets, and low-light interiors
Set Nail Depth Fast And Keep Moving
The two-mode selector lets you switch between controlled sequential firing and faster bump fire operation depending on whether you are doing careful finish placement or moving through repetitive runs.
- Two firing modes: sequential and bump fire
- Tool-free depth adjustment helps dial in flush or countersink results
Strong Runtime For Room-To-Room Work
Good cordless nailers are about more than just cutting the hose. They also need to stay productive through actual work. The XNB06Z is rated for high nail count per charge, which makes it practical for service work, trim installs, and punch-list days.
- Up to 2,750 nails per charge with a 5.0Ah battery
- Up to 1,100 nails per charge with a 2.0Ah battery
Built Around The Right Nail Format
This nailer is set up for 16 gauge angled finish nails, a sweet spot for trim jobs that need better holding power than lighter-gauge options while still leaving a finish-friendly hole.
- Accepts 1-1/4 in. to 2-1/2 in. 16 gauge angled nails
- 20 degree collation angle and up to 110-nail magazine capacity
What’s in the Box
- (1) Makita XNB06Z 18V LXT Brushless Cordless 2-1/2 in. Angled 16-Gauge Finish Nailer
- (1) Hook
- (1) Nose adapter
Battery and charger are not included.
Key Specifications
| Voltage (V) | 18V |
|---|---|
| Tool Type | Angled Finish Nailer |
| Nail Gauge | 16 gauge |
| Nail Size Range | 1-1/4 in. to 2-1/2 in. |
| Collation Angle | 20° |
| Maximum Magazine Capacity | 110 nails |
| Motor Type | Brushless |
| Weight (lbs) | 6.6 lbs with battery |
| LED Light | Yes |
| Tool-Free Depth Adjustment | Yes |
| Power Source | Cordless |
| Made In | Japan |
Compatibility
Battery Platform Compatible with Makita 18V LXT lithium-ion slide-style batteries. Battery Requirement Makita specifies compatibility with 18V lithium-ion batteries that have the Star symbol for Star Protection communication. Fastener Format Uses 16 gauge angled finish nails from 1-1/4 in. to 2-1/2 in. with a 20 degree collation angle.
Built For
Finish CarpentryTrim InstallationRemodelingGeneral ContractingCabinetryBaseboard And CasingCrown MoldingPunch List Work
Pro Tip
When you switch from soft pine trim to harder material, take a second to re-set the tool-free depth dial before you keep firing. It is a small adjustment, but it saves a lot of nail setting and touch-up later.
Warranty & Support
3-year limited warranty.
Tool Nut’s Take
Tool Nut’s Take
Makita XNB06Z 18V LXT Brushless Cordless 2-1/2-in. Angled 16-Gauge Finish Nailer Gets The Important Stuff Right
This is a smart pick for Makita users who want a cordless finish nailer that is light, accurate, and actually practical for everyday trim work.
- Who it’s for: Trim carpenters, remodelers, installers, and punch-list pros already on Makita 18V LXT who want to leave the hose and compressor behind.
- Why it stands out: The slim nose, solid runtime, tool-free adjustments, and lighter build make it easier to use in finished spaces where speed and clean placement matter.
- Worth knowing: This is the bare tool, so plan on adding a battery and charger if you are not already on the LXT platform.
Common Questions
- What size nails does it use? It drives 16 gauge angled finish nails from 1-1/4 in. to 2-1/2 in.
- How many nails does the magazine hold? Maximum magazine capacity is 110 nails.
- Does it run on Makita 18V LXT batteries? Yes. It is part of the Makita 18V LXT system and is compatible with Makita 18V lithium-ion batteries with the Star symbol.
- Can it switch between firing modes? Yes. It has a two-mode selector for sequential nailing or bump fire operation.
- Is this nailer sold with a battery and charger? No. The XNB06Z is a tool only configuration.
