Key Features
Fast Stapling, Less WaitingThe Makita narrow crown stapler is built to keep moving without dragging around a compressor or hose. With up to 4,500 staples per charge on a 5.0Ah battery, it is made for repeat fastening work where downtime costs time. Gets Into Tight SpotsThe slim nose design helps you reach corners, trim details, and other confined areas without fighting the tool. That means cleaner placement when accuracy matters on finish work. Dial In The DriveTool-free depth adjustment and a two-mode selector let you switch between controlled sequential work and faster bump fire operation. You get better results on both delicate trim and higher-volume fastening.
Overview

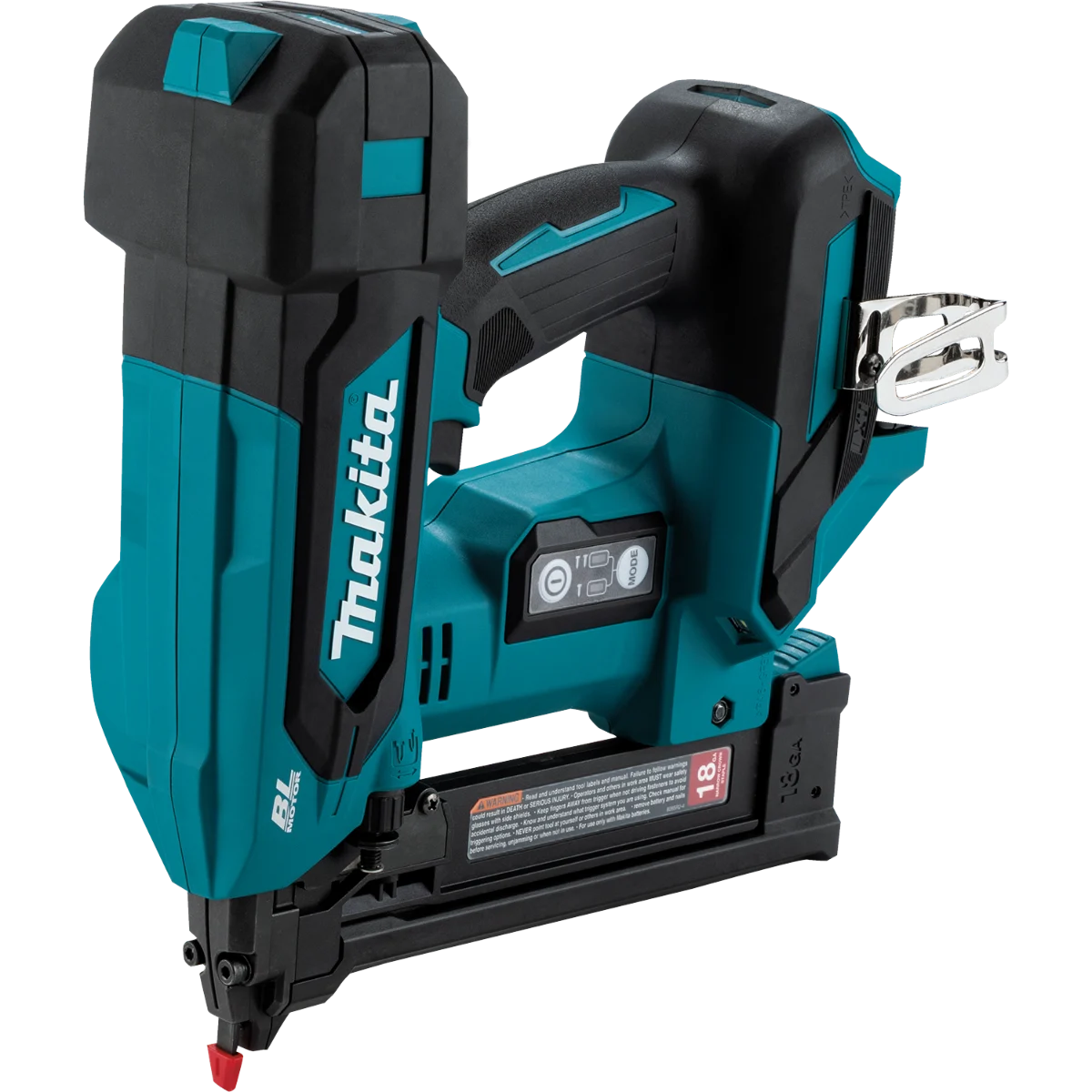

The Makita XTS02Z 18V LXT Lithium-Ion Brushless Cordless 1/4″ Narrow Crown Stapler, 18 Gauge, Tool Only is a cordless finish stapler built for trim, cabinetry, upholstery, and other fastening work where clean placement matters. This is a narrow crown stapler designed for finish fastening in wood and interior install work. Model Number: XTS02Z. If you want pneumatic-style stapling without hauling a compressor and air hose around the job, this is the setup Makita built for that job.
This stapler drives 18 gauge 1/4 inch narrow crown staples from 3/8 inch to 1-1/2 inch, with a magazine capacity of up to 110 staples. That range gives it real flexibility for lighter detail work and longer staples when you need more bite. Makita also states it can drive staples sub-flush in both hardwood and softwood, which matters if you move between trim materials, cabinet parts, and interior wood assemblies instead of working with one material all day.
Where this tool stands out is jobsite convenience. It is brushless, cordless, and part of the Makita 18V LXT platform, so you get mobility without hose management. Makita rates it for up to 4,500 staples per charge with a 5.0Ah battery or 1,800 staples with a 2.0Ah battery. On real install work, that means you can cover a lot of fastening before stopping to swap packs, especially on punch lists, trim rooms, built-ins, or repair work where dragging a compressor around is more hassle than help.
The slim nose design is not just a brochure feature. It gives you better access in confined areas and helps with more accurate staple placement, which is exactly what you want when working near edges, inside cabinets, around jamb details, or in spots where a bulky nose makes you guess. Add in the built-in LED light and you get a better view of the work surface in darker corners, closets, under-cabinet spaces, and remodel environments where lighting is not ideal.
Makita also put real attention into control features. The tool-less depth adjustment lets you fine-tune for flush or countersink stapling without stopping for extra tools. The two-mode selector gives you sequential stapling for deliberate placement and bump fire for faster repetitive work. There is also an anti-dry fire mechanism to help prevent driving blanks, plus a tool-less easy-clear nose for quicker extraction if a staple jams. Those are the kinds of details that matter more after the first long day of use than they do in a spec sheet.
For finish surfaces, the non-marring rubber nose and bumpers help reduce the chance of scratching or denting the material, and Makita includes removable no-mar tips with on-tool storage. That makes this a better fit for visible wood surfaces, trim packages, cabinet installs, and other work where you do not want to spend extra time fixing tool marks. The ergonomic handle with rubberized soft grip and the belt hook also make sense on a job where the stapler is in and out of your hand all day.
On the platform side, this is compatible with Makita 18V LXT Lithium-Ion batteries, including batteries with the Star symbol for Star Protection communication. Makita says the tool is equipped with Star Protection Computer Controls to help protect against overloading, over-discharging, and overheating. If you already run Makita LXT tools, this is an easy add because it uses the same battery system and keeps your cordless fastening setup inside one platform.
Who should buy it? This one makes the most sense for trim carpenters, cabinet installers, remodelers, punch-out crews, and serious DIY users who want cordless freedom but still need controlled, finish-grade stapling. If your work involves narrow crown staples in interior wood applications and you value access, mobility, and setup speed, the XTS02Z is a practical tool. If you need a bare tool, keep in mind this version is tool only, so battery and charger are sold separately.
Makita XTS02Z 18V LXT Lithium-Ion Brushless Cordless 1/4″ Narrow Crown Stapler in Tight Finish Work
This cordless stapler is built around access, control, and mobility. The nose is slim enough for tighter placement work, and the controls are laid out to make quick adjustments easier when you are moving from one fastening task to the next.
- Drives 18 gauge 1/4 inch narrow crown staples from 3/8 inch to 1-1/2 inch
- Includes tool-free depth adjustment, LED light, and sequential or bump fire selection
Key Specifications
| Battery Platform | Makita 18V LXT Lithium-Ion |
|---|---|
| Motor Type | Brushless |
| Tool Type | 1/4 in. Narrow Crown Stapler |
| Gauge | 18 ga. |
| Crown Width | 1/4 in. |
| Staple Length Range | 3/8 in. to 1-1/2 in. |
| Maximum Magazine Capacity | 110 staples |
| Weight (with battery) | 6.2 lbs |
| LED Light | Yes |
| Power Source | Cordless |
Compatibility
Battery Platform Works with Makita 18V LXT Lithium-Ion slide-style batteries. Makita also states compatibility with 18V LXT batteries that have the Star symbol for Star Protection. Fastener Type Designed for 18 gauge 1/4 inch narrow crown staples in lengths from 3/8 inch to 1-1/2 inch. Battery and Charger This is a tool-only configuration. Battery and charger are sold separately.
Built For
Finish CarpentryCabinet InstallationTrim WorkRemodelingInterior Wood FasteningPunch List WorkUpholsteryDIY / Hobbyist
Pro Tip
If you are moving between softer trim stock and harder cabinet material, take a second to reset the tool-free depth dial instead of forcing one setting to do both jobs. This stapler is set up to make that adjustment quick, and it saves patching and touch-up later.
Warranty & Support
3-year limited warranty.
Tool Nut’s Take
Tool Nut’s Take
Makita XTS02Z 18V LXT Lithium-Ion Brushless Cordless 1/4″ Narrow Crown Stapler That Makes Cordless Finish Work Make Sense
The big win here is simple: you get narrow crown stapling performance without the hose, and Makita gave it the access and control features that actually matter on trim and cabinet jobs.
- Who it’s for: Trim carpenters, cabinet installers, remodelers, service crews, and serious DIY users who want a cordless stapler for finish fastening and interior wood work.
- Why it stands out: Slim nose access, tool-free depth adjustment, sequential or bump fire selection, 110-staple capacity, and solid runtime on the 18V LXT platform all add up to a tool that is built for real install work, not just occasional use.
- Worth knowing: This is the bare tool version, so bring your own Makita 18V LXT battery and charger. It is the right buy if you are already on LXT or plan to stay there.
Common Questions
- What staples does this stapler use? It is designed for 18 gauge 1/4 inch narrow crown staples in lengths from 3/8 inch to 1-1/2 inch.
- Can it run on Makita 18V LXT batteries? Yes. Makita lists it as part of the 18V LXT system and states compatibility with 18V LXT Lithium-Ion batteries, including batteries with the Star symbol.
- Does it offer different firing modes? Yes. It has a two-mode selector switch for sequential stapling or bump fire operation.
- Is this a tool-only purchase? Yes. This XTS02Z configuration is tool only, so the battery and charger are not included.
