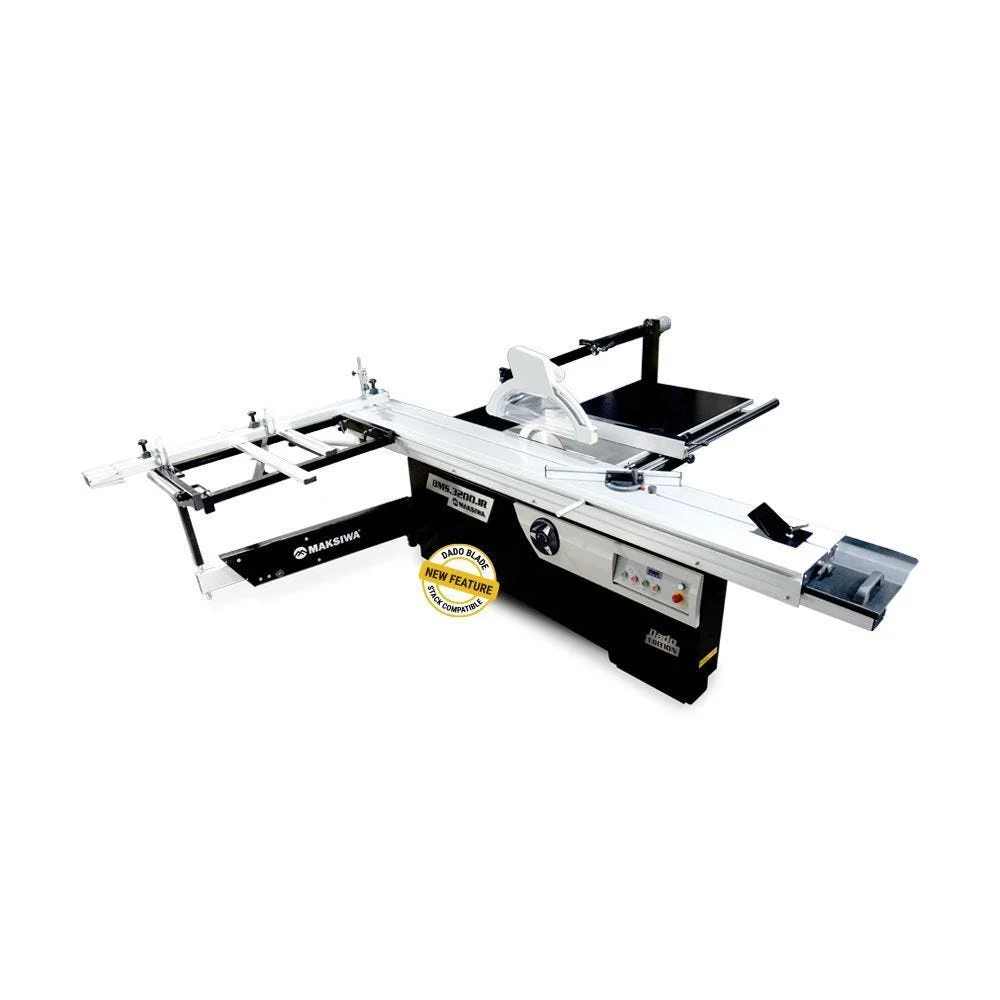

Maksiwa BMS.3200.IR Sliding Panel Saw, 1 Phase, 5HP, 220V

Key Features

5 HP Main MotorThe 5 HP main motor gives this sliding panel saw the muscle for full-size sheet goods, hardwood, bevel cuts, and production work without feeling underpowered when the day gets busy. Dado ReadyThis Dado Edition accepts an 8 inch dado stack up to 1-1/4 inches wide, so you can move from panel processing to joinery work on the same machine. Clean, Accurate CutsA 1 HP scoring motor, roller-bearing sliding table, and micro-adjust rip fence help reduce chip-out and make repeatable sizing work a lot easier on veneered panels and finished sheet stock.

Overview

The Maksiwa BMS.3200.IR Sliding Panel Saw, 1 Phase, 5HP, 220V is a full-size sliding panel saw built for cabinet shops, millwork shops, and serious woodworking setups that need clean sheet breakdown, accurate ripping, and dado capability in one machine. This is a sliding panel saw designed for breaking down sheet goods, ripping panels, crosscutting large workpieces, and cutting dadoes for joinery. Model Number: BMS.3200.IR. If your work involves plywood, melamine, veneered panels, or repeated cabinet parts, this machine is built for that kind of production.

The big story here is versatility without giving up core saw performance. The 5 HP main motor runs at 4,000 RPM and the separate 1 HP scoring motor runs at 8,000 RPM. In practical terms, that means the main blade has enough power for thick stock and long cuts, while the scoring blade helps keep the bottom face of laminated and coated panels cleaner. On cabinet-grade sheet goods, that matters. Less chip-out means less cleanup and fewer ruined parts.

The Dado Edition setup is what separates this saw from standard panel saws in its class. It is compatible with an 8 inch dado blade stack and handles up to 1-1/4 inches of dado width. That lets one machine cover straight sizing cuts and joinery cuts instead of forcing you to move stock to a second saw. Easy blade access also matters here because it cuts down the time lost changing between regular blade and dado setups.

Capacity is shop-level, not hobby-level. The sliding table is 126 inches long and rides on roller bearings, giving you the support needed for full sheets and long crosscuts. Max ripping capacity is listed at 126 inches and max crosscut capacity is 51 inches, with the crosscut fence extending from 74-3/4 inches closed to 108 inches open. That combination makes the saw practical for cabinet sides, shelving, face-frame parts, long panels, and oversized sheet stock where straight tracking and repeatability matter more than raw blade speed alone.

Maksiwa also put real attention into the way the saw works day to day. The anodized aluminum sliding table is meant for durability and smoother movement over time. The European-style 51 inch rip fence uses heavy-duty casting and glides on a solid steel bar, with micro adjustment for dialing in finished dimensions. The digital angle display from 90 degrees to 45 degrees gives you a more direct read when setting bevels, and the soft-touch control panel keeps the adjustments straightforward instead of fussy.

Jobsite practicality on a machine this size comes down to control, dust handling, and stability. This saw uses dual blade covers and integrated dust collection through a swing-away arm, plus two 4 inch dust ports. Maksiwa calls for a minimum of 1000 CFM dust collection, which is worth paying attention to because a panel saw only stays accurate and comfortable to use if chips and dust are being cleared properly. Adjustable leveling feet and a stable base also matter on a 1329 pound machine because panel handling gets a lot easier when the table stays planted.

Power setup is flexible for professional shops. The BMS.3200.IR is offered in both 1 Phase 220V at 22 amps and 3 Phase 220V at 11 amps, so it can fit different electrical layouts without forcing you into a completely different machine. Blade interfaces are clearly defined too: the main blade uses a 12 inch maximum diameter with a 30 mm arbor, and the scoring blade uses a 4-3/4 inch blade with a 20 mm arbor. That kind of clarity matters when you are ordering replacements or setting the saw up for a specific material.

Who should buy it? If you are a cabinetmaker, custom millwork shop, production woodworker, or school shop stepping into true panel processing, this machine makes sense. If most of your work is small parts and occasional sheet cuts, it is more machine than you need. But if your workflow regularly starts with full panels and ends with finished cabinet parts, the Maksiwa BMS.3200.IR earns its floor space because it combines size, scoring, bevel capability, and dado capacity in one serious woodworking saw.

Built to Handle Full Sheet Work

This saw is made for the kind of panel handling that overwhelms a standard cabinet saw. The long sliding table supports sheet goods so the material stays controlled through the cut instead of fighting you the whole way.

• 126 inch sliding table for long panel support
• 51 inch maximum crosscut capacity for wide sheet work
• 126 inch maximum ripping capacity for long breakdown cuts

Cleaner Results on Laminated Panels

When you are cutting melamine, veneered plywood, or finished panels, chip control is a real issue. The separate scoring blade is there for a reason: it helps protect the bottom face so your finished parts need less touch-up.

• 1 HP scoring motor running at 8,000 RPM
• Conical 4-3/4 inch scoring blade with 20 mm arbor
• Main blade cutting height up to 3-1/2 inches at 90 degrees

Faster Setup, Better Control

A big panel saw only pays off if it is easy to set and repeat. Maksiwa added a digital angle display, separate motor controls, and accessible emergency stops so adjustments are more direct and safer to manage during production work.

• Digital angle display for settings from 90 degrees to 45 degrees
• Separate controls for main blade and scoring blade
• Front and rear emergency buttons for easier access

Shop-Ready Construction

This is not a stripped-down slider. From the anodized aluminum sliding table to the heavy-duty rip fence and integrated dust collection arm, the build is aimed at shops that use the machine regularly and expect it to stay accurate.

• Roller-bearing sliding table mechanism for smoother travel
• European-style rip fence with micro adjustment
• Dual 4 inch dust ports with 1000 CFM minimum requirement

What’s in the Box

• (1) Maksiwa BMS.3200.IR Sliding Panel Saw
• (1) 12 inch main blade
• (1) scoring blade
• (1) wood panel stopper
• (1) sheet clamp
• (1) push stick

Dado stack is compatible but not listed as included.

Key Specifications

Motor Output	5 HP main motor; 1 HP scoring motor
Main Blade Speed	4,000 RPM
Scoring Blade Speed	8,000 RPM
Maximum Main Blade Diameter	12 in
Main Blade Arbor	30 mm
Maximum Cut Height at 90°	3-1/2 in
Maximum Cut Height at 45°	2-1/8 in
Dado Width Capacity	1-1/4 in
Maximum Dado Blade Diameter	8 in
Sliding Table Size	126 in x 14-3/4 in
Dust Port Size	(2) 4 in ports
Weight	1329 lbs

Compatibility

Electrical ConfigurationAvailable in 220V single phase at 22 amps or 220V three phase at 11 amps depending on shop power requirements. Main Blade InterfaceUses a main blade up to 12 inches with a 30 mm arbor. Dado Blade CompatibilityAccepts an 8 inch dado blade stack with up to 1-1/4 inches of dado width capacity. Scoring Blade InterfaceScoring blade size is 4-3/4 inches with a 20 mm arbor and conical blade type.

Built For

Cabinetmaking Woodworking Millwork Sheet Goods Breakdown Joinery and Dado Cutting Production Shops Remodeling Shops Furniture Components

Pro Tip

If you are switching between standard blade work and dado work regularly, keep a dedicated setup routine for fence zeroing and scoring blade alignment. On a machine this accurate, a few minutes spent resetting for the blade stack saves a lot more time than chasing fit issues later in assembly.

Warranty & Support

2-year warranty on parts and service.

Tool Nut’s Take

Tool Nut’s Take

Maksiwa BMS.3200.IR Sliding Panel Saw Is a Real Shop Upgrade

This is the kind of machine that makes sense when your workflow starts with full panels and you are tired of forcing cabinet-saw setups to do panel-saw work.

• Who it’s for: Cabinet shops, custom woodworking operations, and serious production users cutting sheet goods, finished panels, and joinery on a regular basis.
• Why it stands out: You get a 5 HP main motor, a dedicated scoring motor, long sliding table support, micro-adjust rip fence, and actual dado capability in one package.
• Worth knowing: This is a big machine at 1329 pounds and it wants proper dust collection at 1000 CFM minimum, so plan your floor space and shop infrastructure before it arrives.

Common Questions

• Can this saw run a dado stack? Yes. The BMS.3200.IR Dado Edition is compatible with an 8 inch dado blade stack and supports up to 1-1/4 inches of dado width.
• Does it have a scoring blade for cleaner panel cuts? Yes. It uses a separate 1 HP scoring motor running at 8,000 RPM with a conical 4-3/4 inch scoring blade.
• What power does it require? Maksiwa lists the machine in 220V configurations for either 1 Phase at 22 amps or 3 Phase at 11 amps.
• How much dust collection does it need? The machine uses two 4 inch dust ports and Maksiwa recommends a minimum dust collection requirement of 1000 CFM.
