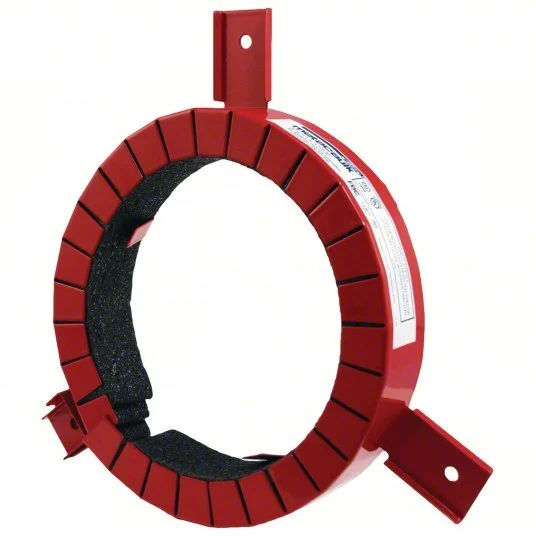

Metacaulk Pipe Collars are prefabricated for open/closed through-penetration firestop systems with 11/2-6″ (38 – 152 mm) plastic pipe.
Easy lock mechanism assures easy install. Collar design greatly cuts time/expense compared to competitors’ collars.
Used to seal off plastic pipe both in closed & vented (DWV) conditions. Collar may be used on up to 3 hour rated concrete floors and walls, up to 2 hour rated gypsum walls and up to 2 hour rated wood floors
Features
- Economical and Easy Installation saves on labor cost- 25% reduction of installation time and No Measurement of Material required
- Highly Intumescent
- Tested for PVC, CPVC, ABS and PVC/ABS Foam Core, FRPP, PP
- UL classified for both open and closed pipe systems and FBC System Compatible
- Fits in limited access areas
| Case Weight (lbs) : | 7.21 |
|---|---|
| Case Height (inch) : | 1.75 |
| Case Length (inch) : | 7.75 |
| Case Width (inch) : | 21.75 |
| Brand : | Metacaulk |
| Recommended Use : | PVC, CPVC, ABS, PVC foam core, ABS foam core, FRPP, PEX pipe, Electrical cable. Also for use on up to 6″ (152 mm) ABS (cellular/solid core), FRPP, PVC and CPVC pipe. Not for use in environments with long-term exposure to rainfall/saltwater spray. |
| UPC : | 021449663519 |
| Interleaved : | 10021449663516 |
| Color : | RED |
| Application : | Used to seal off plastic pipe both in closed & vented (DWV) conditions. Collar may be used on up to 3 hour rated concrete floors and walls, up to 2 hour rated gypsum walls and up to 2 hour rated wood floors |
| Fin/Blade Spacing : | .000 |
| Fin Degree : | 0 |
| Screw Holes : | 0 |
