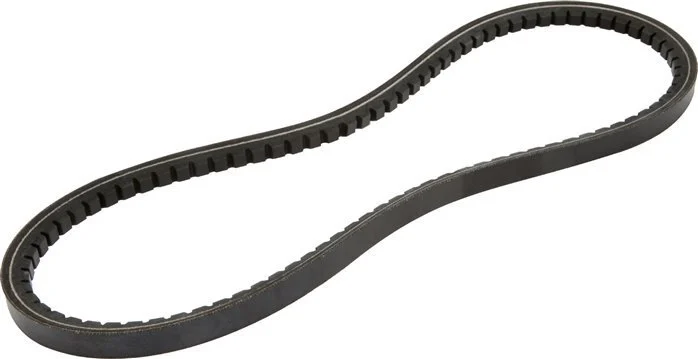

Metric Cogged V-belt XPA 12.7×10 Li-762mm Ld-807mm DIN 7753

V-belts with metric pitch and metric length are referred to as metric cogged V-belts. The grooves on cogged belts run perpendicular to their length. Cogged belts are able to flex and can be used with smaller diameter wheels, or with sprocket pulleys to limit slip. These belts have metric dimensions and can transfer more torque and have more flexibility than standard V-belts. They are commonly used in industrial settings, such as textile mills, machine applications, and food processing facilities to transfer motion between pulleys with metric profiles.

Specifications

Belt profile type : XPA – 12.7×10 mm
Reference length ISO Ld/Lw/Lp (mm) : 807
Inner length Li (mm) : 762
Width (top) (mm) : 12.7
Height (mm) : 10
Temperature resistance (°C) : -40 °C to 100 °C
Temperature resistance (°F) : -40 °F to 212 °F
Max. belt speed (m/s) : 50
Max. belt speed (ft/s) : 164
Min. disc diameter (mm) : 63
Shape-toothed model : Yes
Sheathed : No
Oil resistant : Yes
