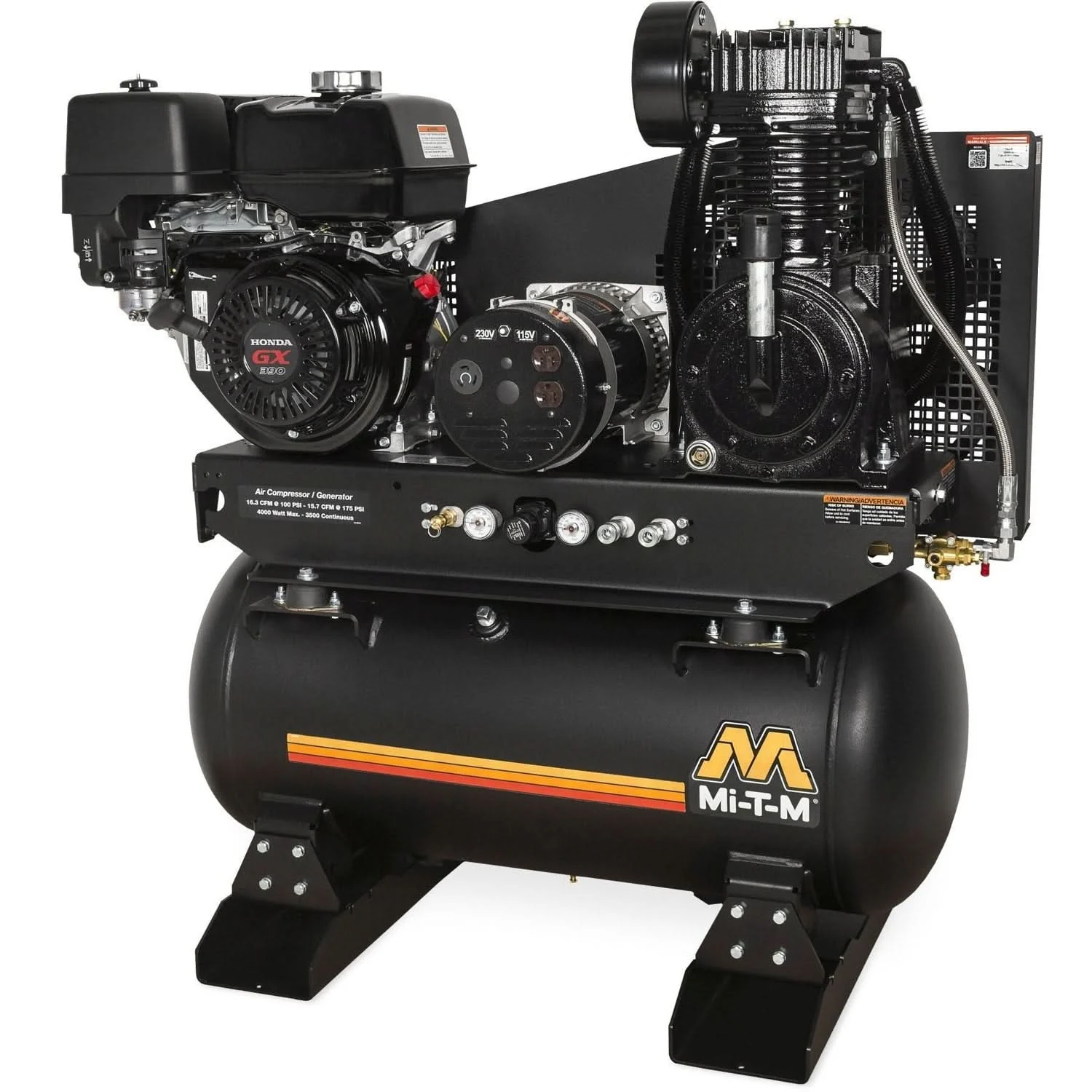

30 Gallon Two Stage Combination Air Compressor / Generators from Mi-T-M, this machine is durable even in the toughest environments.
The versatile air compressor and generator combination comes with an abundance of storage capacity and features a powerful two stage compressor and 4000-watt generator.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader
Specifications:
- 15.7 CFM @ 175 PSI
- Displacement/Engine: 389cc Honda OHV
- Max. AC Output: 4000 watts
- Continuous with Compressor On Load: 2300 watts
- Continuous with Compressor Off Load: 3500 watts
- Receptacles: (2) NEMA 5-15R, (1) NEMA L6-20R
- Warranty: 3 Year Honda Engine
- Warranty: 2 Year Alternator
- Warranty: 2 Year Pump Exchange
- Certification: ASME – UM
