Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

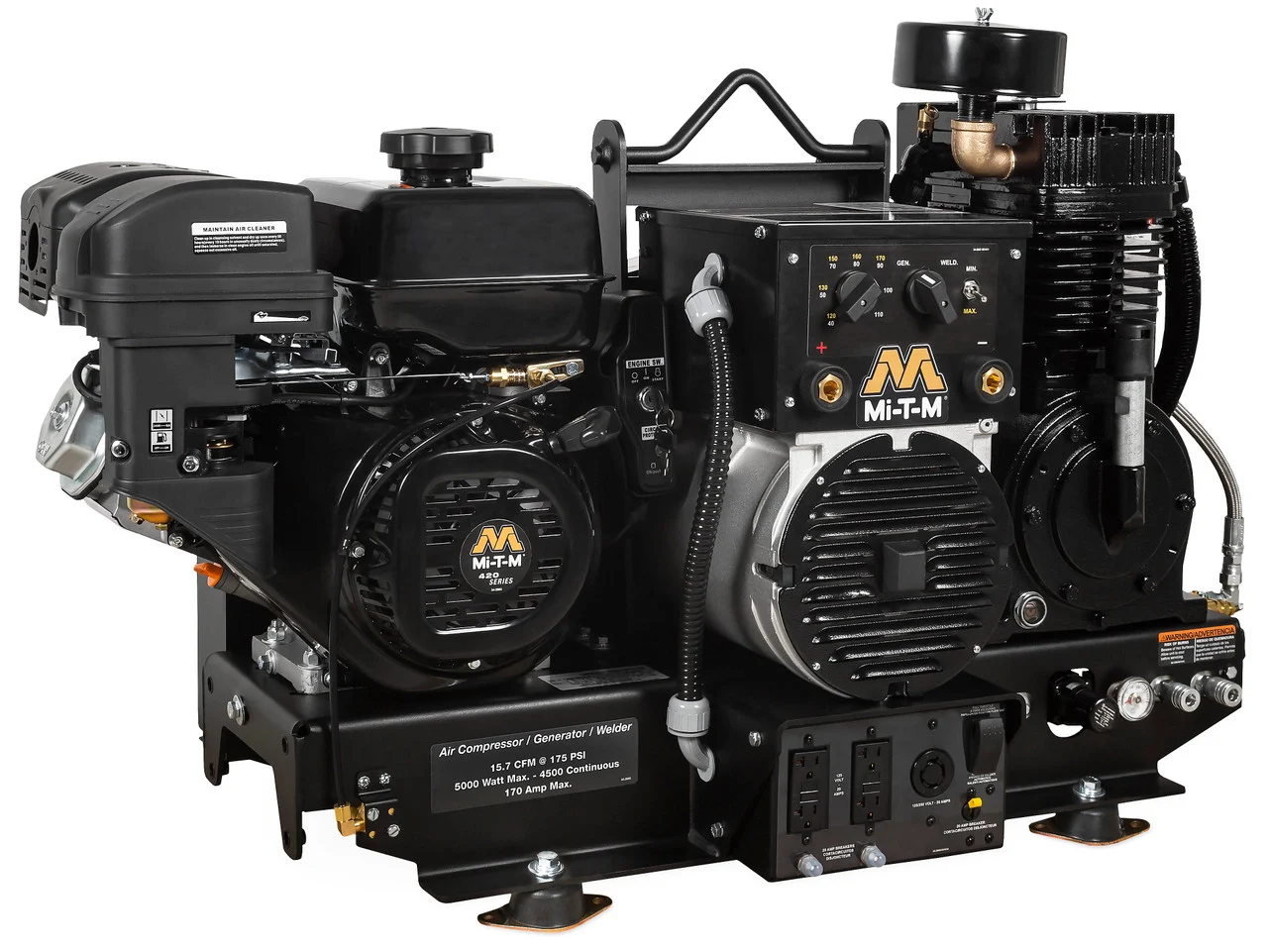

Features
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: Amperage selection switch, 170A maximum
Frame: 16-gauge powder coated belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel
Specifications:
CFM @ PS: 15.7 @ 175*
DISPLACEMENT/ENGINE : 420cc Mi-T-M OHV, electric start – battery cables and battery not included
MAX. AC OUTPUT : 5000 watts
DC VOLTAGE : 50-170A
