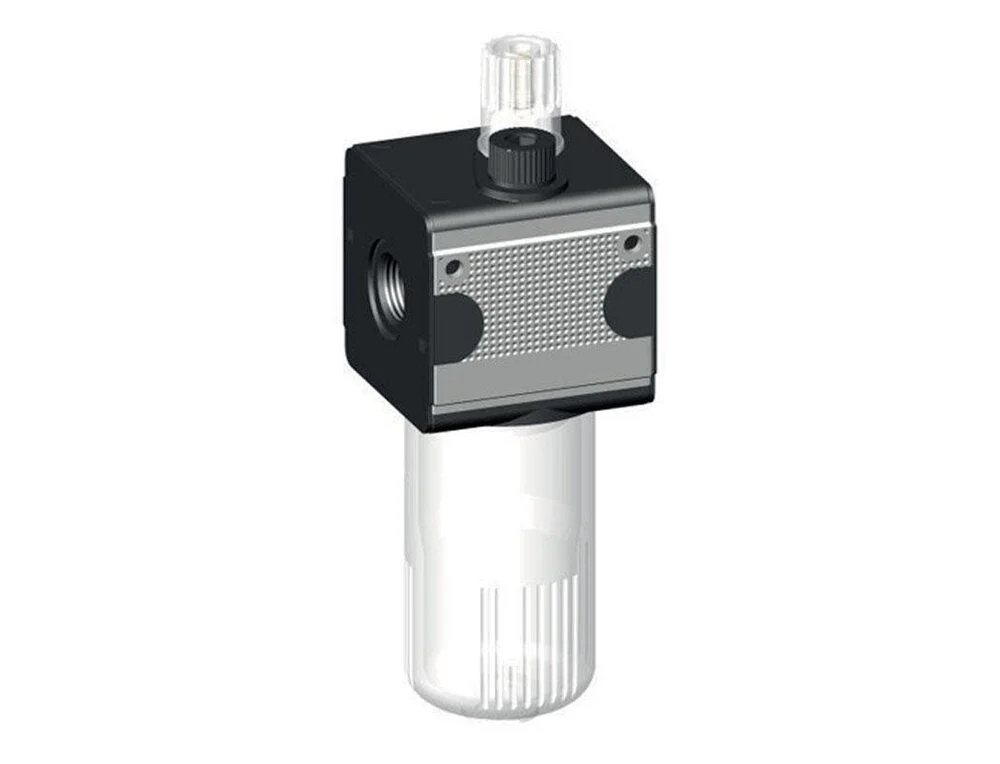

The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn’t need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1/2 inch ports.
The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The lubricator requires a minimal flow rate of 140 l/min and can hold 125 cm3 of oil. The housing material is made out of zinc die-cast and the lubricator has a bowl made of polycarbonate (PC). It has a position indicator to see the bowl level.
Mounting brackets need to be ordered separately.
Specifications
Connection size : 1/2 inch
Max flow rate (l/min) : 5000
Max. pressure difference at 20 °C (bar) : 16
FRL feature : With electronic level monitoring,Micro oil-fog lubricator
Material : Zinc die-cast
Min. flow for oil drip (l/min) : 140
Lubricating oil capacity (cm³) : 125
Connection type : Inner thread cylindrical BSPP-G
Model : Multifix 2
Min temperature (°C) : -10
Max temperature (°C) : 60
Height (mm) : 198
Length (mm) : 69
Container material : Polycarbonate (PC)
