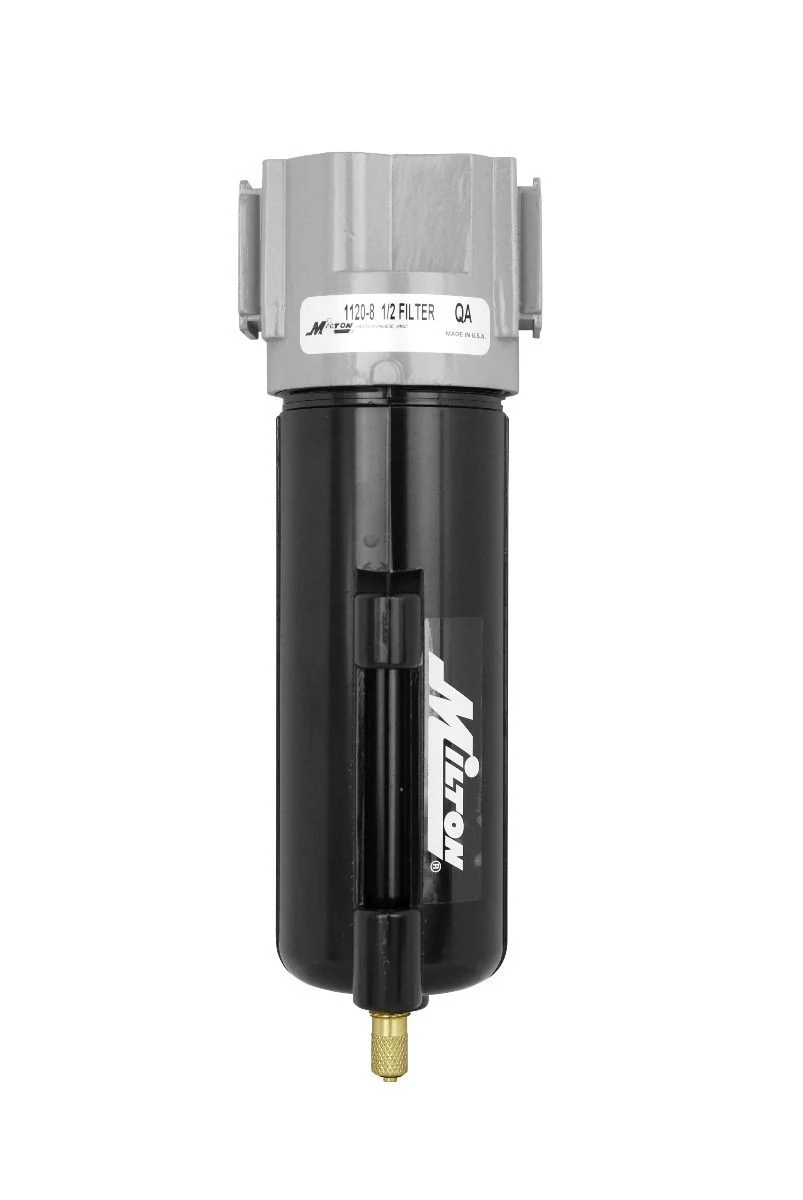

This 1/2″ NPT Milton® micro filter is supplied with pre-assembled automatic overnight drain, 3 stage baffle system and a porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems. The corrosion resistant metal bowl has a capacity of 9 ounces. Maximum of 250 PSI and 115 SCFM.
Replacement bronze filter element: P1120-17
- 1/2″ national pipe thread
- Maximum pressure of 250 pounds per square inch
- Maximum of 115 standard cubic feet per minute at 100 pounds per square inch
- Install upstream from regulators
- Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit
- Replacement bronze filter element: P1120-17
| Short Description |
Filter 1/2″ Metal Bowl |
|---|---|
| Number of Items in This Pack | 1 |
| UPC Code | 30937112088 |
| Made in USA | Yes |
| FRL type | No |
| Key feature | Removes oil and water condensate |
| Material Type | No |
| Display on Bloguns CMS Page | No |
| NPT thread size | 1/2″ NPT Inlet |
| PSI range | No |
| Maximum PSI | 250 PSI |
| SCFM | No |
| Height | 2.6875 |
| Width | 2.75 |
| Length | 8.5 |
| Micron filter size | 40 micron bronze filter |
| Bowl capacity | 9 oz metal bowl capacity |
