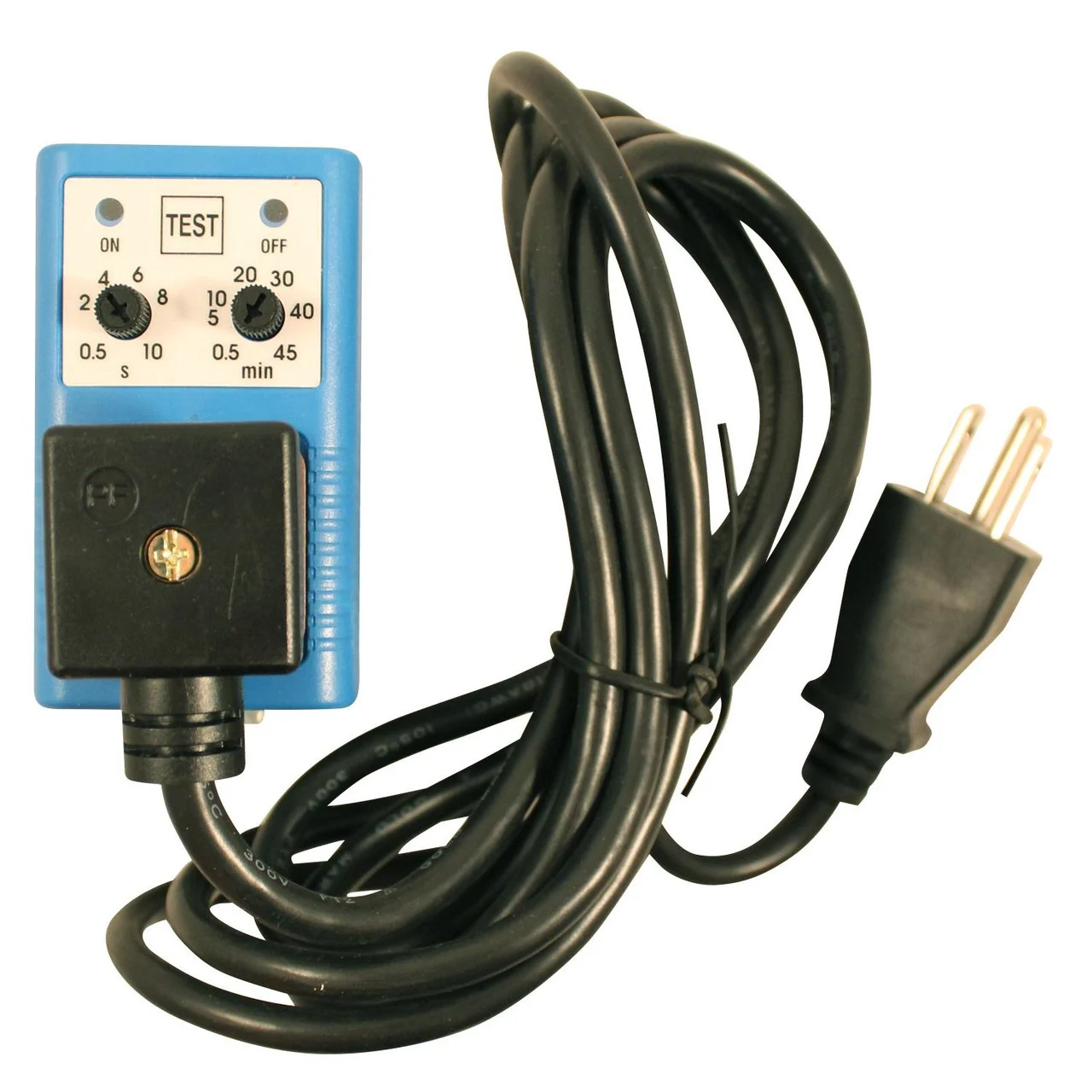

This compressor tank drain is electronically adjustable to drain compressor tank automatically in order for it to deliver dry air. The two 2 way direct acting 1/4″ FNPT valves are made of forged brass and have a manual test switch. Mountable in any position, this tank drain has a 6′ 1/2″ power cord and offers voltage of 115 volts / 1 phase / 60 Hz. Offers a working pressure range of 0 to 230 PSI.
- 1/4″ female national pipe thread
- Working pressure range of 0 to 230 pounds per square inch
- Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit
- Discharge interval adjustable from .5 to 45 minutes
- Discharge duration adjustable from .5 to 10 seconds
| Short Description | 1/4″NPT TANK DRAIN |
|---|---|
| Number of Items in This Pack | 1 |
| UPC Code | 30937308436 |
| Made in USA | Yes |
| FRL type | No |
| Key feature | Drains compressor tank automatically |
| Material Type | No |
| Display on Bloguns CMS Page | No |
| NPT thread size | 1/4″ Female NPT |
| PSI range | No |
| Maximum PSI | No |
| SCFM | No |
| Pressure range | Pressure range 0 to 230 PSI |
| Height | 1.75 |
| Width | 3 |
| Length | 3.5 |
| Mounting direction | Can be mounted in any position |
| Bowl capacity | No |
