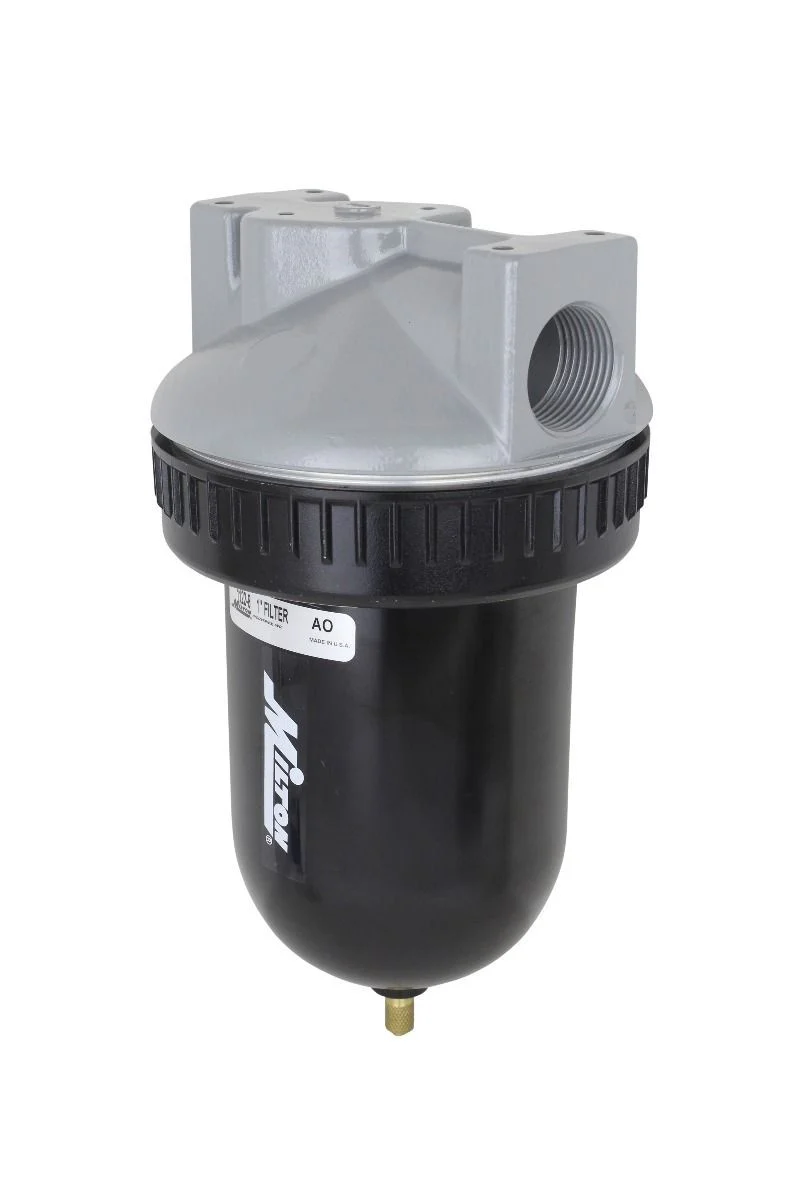

This 1″ NPT heavy duty micro filter is supplied with pre-assembled automatic overnight drain, 3 stage baffle system and porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems. The corrosion resistant metal bowl has a capacity of 29 ounces. Maximum of 250 PSI and 300 SCFM.
- 1″ national pipe thread
- Maximum pressure of 250 pounds per square inch
- Maximum of 300 standard cubic feet per minute at 100 pounds per square inch
- Install upstream from regulators
- Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit
| Short Description |
Filter 1″ Metal Bowl |
|---|---|
| Number of Items in This Pack | 1 |
| UPC Code | 30937303738 |
| Made in USA | Yes |
| FRL type | No |
| Key feature | Removes oil and water condensate |
| Material Type | No |
| Display on Bloguns CMS Page | No |
| NPT thread size | 1″ NPT Inlet |
| PSI range | No |
| Maximum PSI | 250 PSI |
| SCFM | No |
| Height | 3.75 |
| Width | 3.75 |
| Length | 7.875 |
| Bowl capacity | 29 oz metal bowl capacity |
