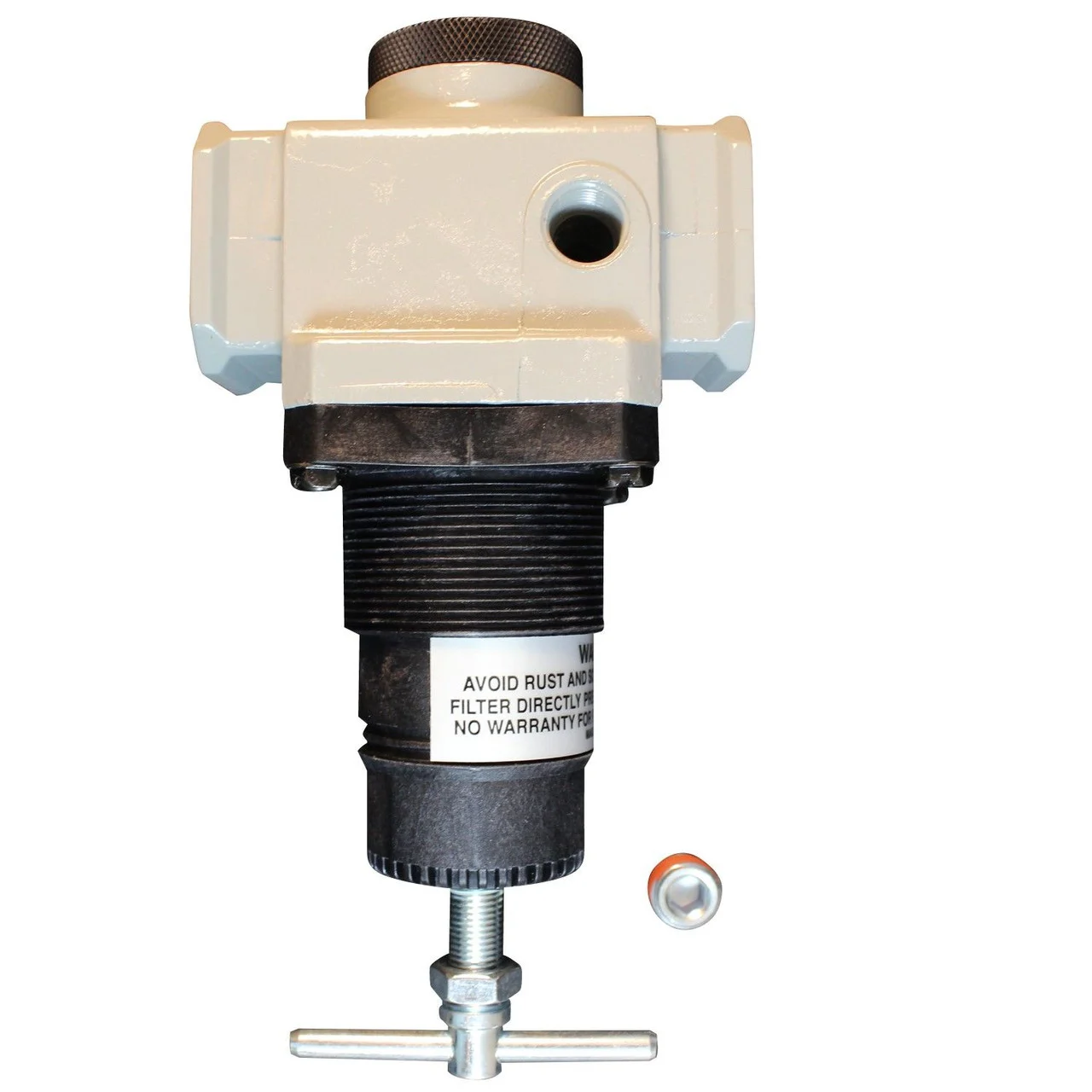

This 3/4″ NPT midsize high pressure heavy duty regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop. Offset gage ports can also serve as two 1/4″ NPT supply lines. Made up of an aluminum die cast body, balanced piston and molded rubber seat, this regulator should be proceeded by a filter to eliminate damage. Maximum of 250 PSI and 220 SCFM. Includes one plug for gage port.
- 3/4″ national pipe thread
- Maximum inlet pressure of 250 pounds per square inch
- Maximum of 220 standard cubic feet per minute at 100 pounds per square inch
- Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
- Required gage not included
- Buna-N diaphragm
| Short Description | Regulator 3/4″ NPT, 1050 PSI |
|---|---|
| Number of Items in This Pack | 1 |
| UPC Code | 30937307125 |
| Made in USA | Yes |
| FRL type | No |
| Key feature | Should also be preceded by a filter to eliminate damage to regulator |
| Material Type | No |
| Display on Bloguns CMS Page | No |
| NPT thread size | 3/4″ NPT Inlet |
| PSI range | No |
| Maximum PSI | 250 PSI |
| SCFM | No |
| Height | 2.375 |
| Width | 3.5 |
| Length | 6.75 |
| Bowl capacity | No |
