Key Features
Real Breakaway PowerUp to 80 ft-lbs of max torque gives this cordless ratchet the muscle to break loose stubborn fasteners instead of just spinning them once they are already free. Fast Ratchet WorkWith 300 RPM, the Milwaukee ratchet speeds up removal and installation so you spend less time hand-turning hardware in repetitive mechanical work. Tight-Space AccessThe compact head and body, contoured grip, and modular trigger setup are built for engine bays, equipment service, and other cramped spots where a full-size ratchet slows you down.
Overview
The Milwaukee 3054-21 M12 FUEL 1/2″ Ratchet Kit is a cordless ratchet kit built for mechanics, maintenance techs, and tradespeople who need more speed than a hand ratchet and more access than a bulkier impact tool. This is a cordless ratchet designed for fastening and loosening nuts and bolts in tight spaces. Model Number 3054-21. If your day involves engine bays, equipment service, assembly work, or repeated fastener removal, this tool is aimed right at that kind of work.
The numbers that matter are straightforward: up to 80 ft-lbs of max torque and 300 RPM. That combination is what makes this tool different from basic cordless ratchets that are quick once the fastener is loose but struggle with breakaway. Here, you get enough torque to handle stubborn hardware and enough speed to keep the job moving once it breaks free. In practical use, that means fewer switchovers between a hand tool and powered tool during routine service work.
Milwaukee built this M12 ratchet around a POWERSTATE brushless outer rotor motor, and that matters because it helps the tool deliver strong output without giving up compact size. The tool is also light at 1.7 lb bare, which makes a difference when you are working one-handed or reaching into awkward positions for long stretches. The compact head and body are there for a reason: access. This tool is made to reach where a larger cordless ratchet or impact wrench can get in the way.
Comfort is not an afterthought here either. The contoured grip is meant for all-day wrenching, and Milwaukee includes both a button trigger cap and a paddle trigger cap so you can set the tool up around how you hold it and where you are working. That is a practical feature, not a gimmick. In cramped mechanical work, trigger placement can make the difference between a tool that helps and a tool that fights you.
For jobsite durability and day-to-day shop use, the Milwaukee 3054-21 M12 FUEL 1/2″ Ratchet Kit uses a metal-reinforced housing, an integrated grease port for self-lubrication, and a housing designed to resist common oils, greases, and solvents. It also includes a targeted LED light to help when you are working under a hood, inside machinery, or anywhere the fastener is there but the light is not. REDLINK PLUS intelligence is built in to help protect the tool and battery from overload and overheating, which is exactly the kind of protection you want in a compact cordless mechanic’s tool that gets used hard.
This kit runs on the Milwaukee M12 battery system, so it fits right into a platform many techs and contractors already own. Milwaukee also states it is part of the M12 System featuring 150+ tools, which matters if you want one battery line for inspection lights, drills, impact drivers, inflators, and service tools. The kit includes an M12 High Output 2.5Ah battery and an M12 charger, so you are not buying a bare tool and then piecing the rest together.
Who should buy it? If you do automotive work, fleet maintenance, equipment repair, industrial service, or general fastening where access is tight and repetition is constant, this is the kind of ratchet that earns its keep fast. If you mainly need maximum lug-nut power, you still want an impact wrench. But if you want a compact 1/2 inch cordless ratchet that can break loose hardware, run quickly, and fit where your bigger tools cannot, this one is built for that exact job.
Compact Power Where Hands and Tools Fight for Space
This kit gives you the whole setup for service work right out of the box. The tool stays compact and light, but it is still built to deliver real mechanical fastening performance where clearance is limited.

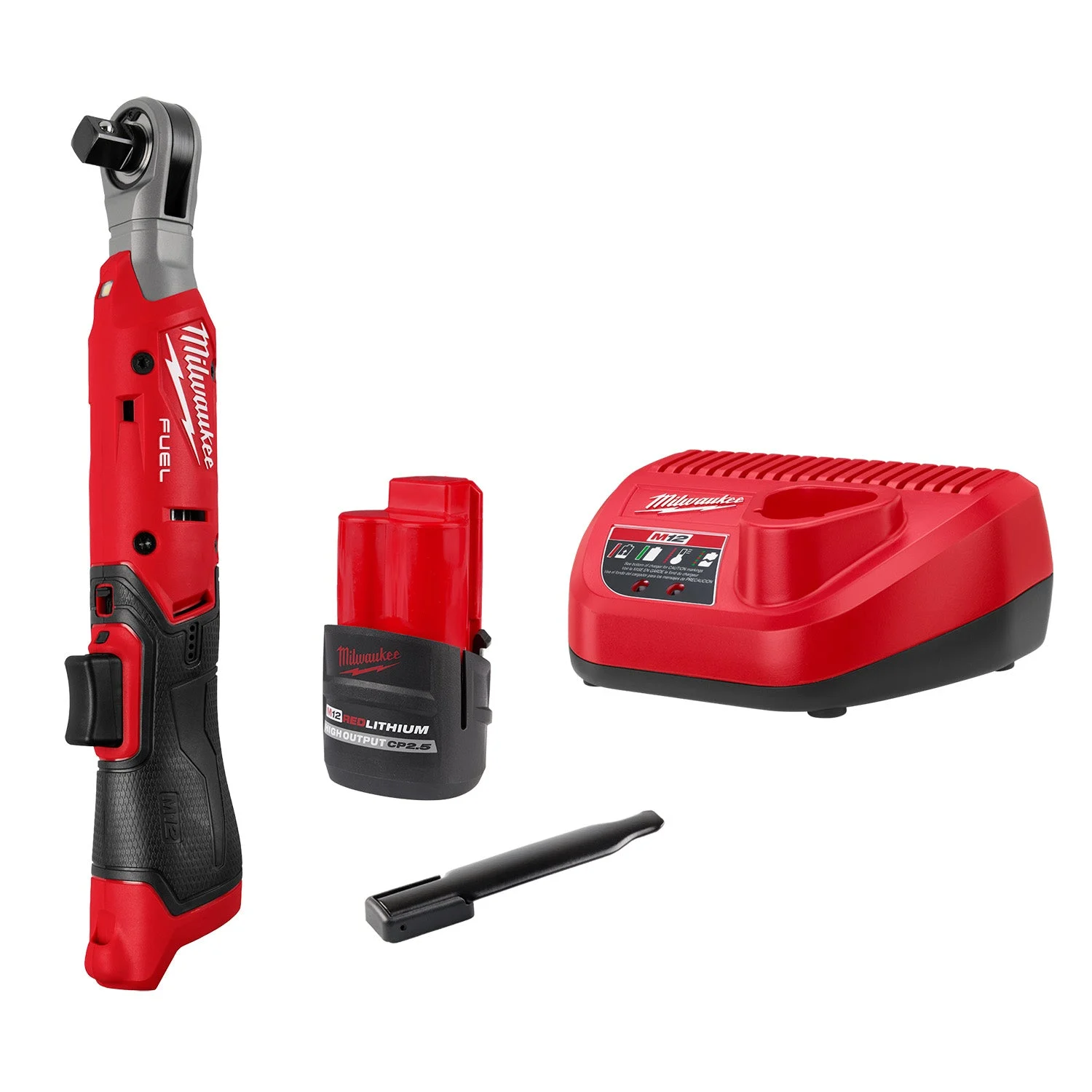

- Includes the M12 FUEL 1/2 inch ratchet, M12 High Output 2.5Ah battery, M12 charger, modular button cap, and modular paddle cap
- 1/2 inch ball detent anvil is built for 1/2 inch drive socket work
- Targeted LED light helps when fasteners are buried in darker work areas
What’s in the Box
- (1) Milwaukee M12 FUEL 1/2″ Ratchet
- (1) Modular Button Cap
- (1) Modular Paddle Cap
- (1) M12 High Output 2.5Ah Battery (48-11-2425)
- (1) M12 Charger (48-59-2401)
Key Specifications
| Battery Platform | M12 |
|---|---|
| Motor Type | POWERSTATE Brushless |
| Drive Size | 1/2 in |
| Anvil Type | Ball Detent |
| Maximum Torque | 80 ft-lbs |
| No-Load Speed | 300 RPM |
| Weight Excluding Battery | 1.7 lb |
| Made In | Mexico |
Compatibility
Battery Platform Compatible with the Milwaukee M12 battery system. Milwaukee identifies this ratchet as part of the M12 System featuring 150+ tools. Socket Interface The 1/2 inch ball detent anvil is designed for 1/2 inch drive socket use. Charging Includes an M12 charger for the included M12 High Output 2.5Ah battery.
Built For
AutomotiveFleet MaintenanceEquipment RepairMechanical AssemblyService Work in Tight SpacesGeneral Maintenance
Pro Tip
Try both trigger caps before you put this ratchet into daily rotation. In tighter engine bays, the paddle cap can be easier to feather from different hand positions, while the button cap works well when you want a more familiar trigger feel and less chance of bumping nearby parts.
Warranty & Support
5 Year Tool, 2 Year Battery.
Tool Nut’s Take
Tool Nut’s Take
Milwaukee 3054-21 M12 FUEL 1/2″ Ratchet Kit is the one to grab when access matters as much as torque
This is a serious step up from entry-level cordless ratchets because it gives you real breakaway power, fast run speed, and a smarter grip setup in one compact package.
- Who it’s for: Mechanics, maintenance crews, and anyone doing repeated socket work in cramped spots.
- Why it stands out: 80 ft-lbs and 300 RPM is a strong combo for a compact M12 ratchet, and the included trigger caps are a genuinely useful touch.
- Worth knowing: This is a ratchet, not a replacement for a full-size impact wrench. Use it where access and speed are the priority, then reach for a bigger tool when the job calls for heavier fastening.
Common Questions
- What battery platform does this ratchet use? It uses Milwaukee’s M12 battery system.
- How much torque does it make? Milwaukee lists a maximum torque rating of 80 ft-lbs.
- How fast does it run? The ratchet is rated at 300 RPM for faster fastener removal and installation.
- What size sockets does it use? It has a 1/2 inch ball detent anvil designed for 1/2 inch drive socket work.
- What is the warranty? Warranty coverage is listed as 5 Year Tool, 2 Year Battery.
