Key Features
Clear 5.5 Inch ViewThe HD touchscreen gives you a sharp image with full daylight readability, so you can actually see what is happening in the line without fighting glare or a cramped display. Wireless Inspection MonitorThis Milwaukee 3971-20 M12 Wireless Monitor connects wirelessly with compatible Milwaukee inspection cameras, giving you more freedom to position the reel where it makes sense and keep the screen where you can see it. Faster ReportingOn-board photo, video, audio, label, and trim functions help you document the job right there on site, which saves time when you need to show customers what you found.
Overview

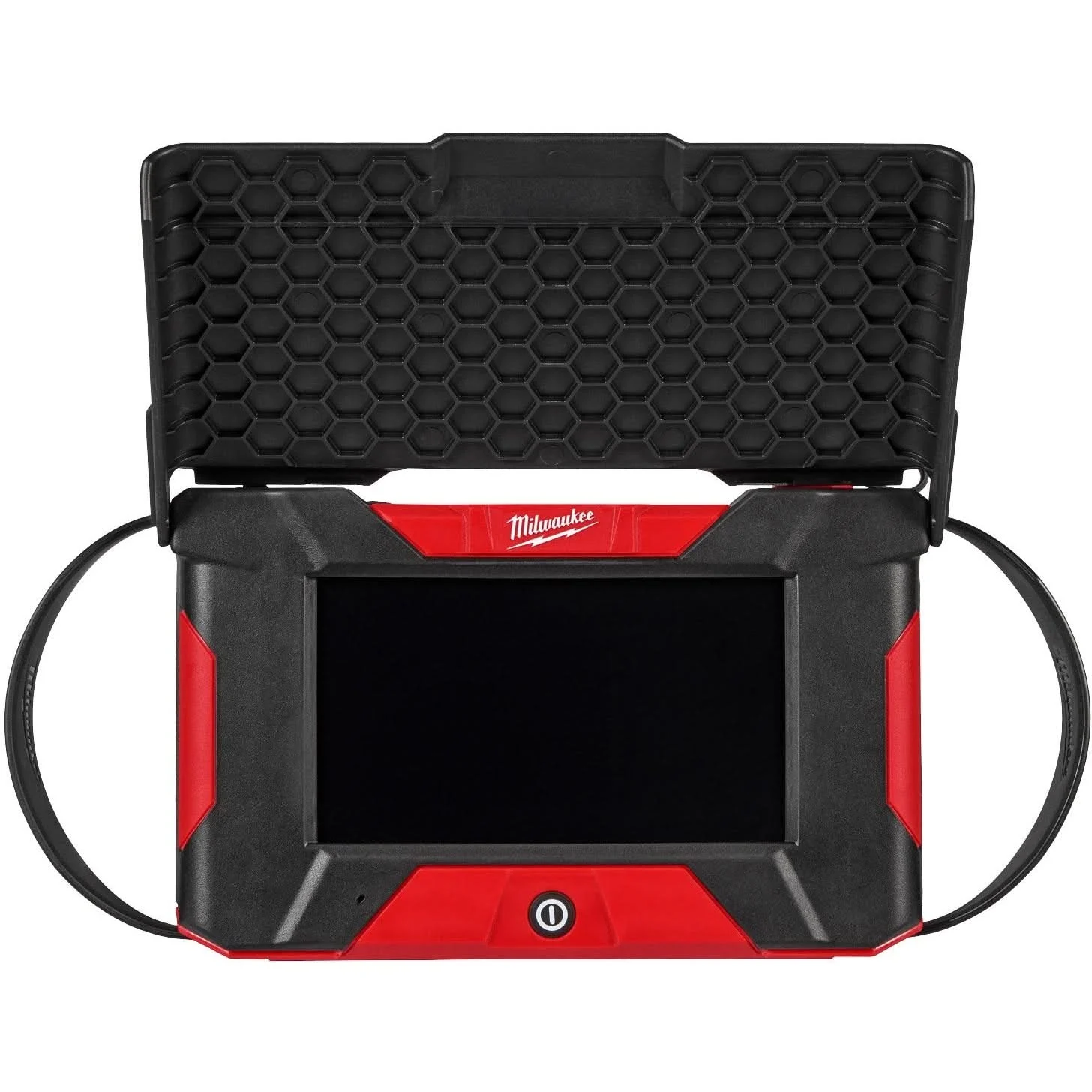

The Milwaukee 3971-20 M12 Wireless Monitor is a cordless inspection monitor built for drain cleaning and pipeline inspection work. This is a wireless monitor designed for viewing, documenting, and sharing drain and pipeline inspection footage on the jobsite. Model Number 3971-20. It is aimed squarely at drain cleaning professionals, plumbers, and service techs who need a clearer picture, better reporting, and a setup that is easier to manage in tight work areas.
The biggest draw here is the 5.5 inch HD touchscreen. A bigger, sharper screen matters when you are trying to identify a blockage, crack, root intrusion, or general line condition without second guessing what you are seeing. Milwaukee also built in pinch to zoom, rotate, and pan with up to 4X zoom, so you can focus on the exact section of interest instead of relying on a fixed view.
This monitor is more than just a screen. It is also a reporting tool. You can capture photos and video, add audio notes, add labels, and trim video directly on the unit. That is useful for service calls where documentation helps explain the problem to a customer, supports an estimate, or keeps a record for follow-up work. It also supports Wi-Fi sharing from the photo gallery and USB file export, which makes it easier to move reports out of the field and into your workflow.
From a jobsite practicality standpoint, Milwaukee calls out water and impact resistance, which makes sense for a tool that lives around wet floors, service vans, crawlspaces, and drain cleaning setups. The compact body measures 7.78 inches long, 5.96 inches high, and 2.95 inches wide, with a weight of 2.05 lbs, so it is portable enough to carry around a property or set on a nearby counter, vanity, or work surface while the reel stays where the access point is.
System fit is a big part of why this tool matters. The Milwaukee 3971-20 M12 Wireless Monitor runs on the M12 platform and is wirelessly compatible with Milwaukee M12 Compact Drain Line Inspection Cameras and the M18 Modular Pipeline Inspection System. Milwaukee also lists compatibility with models 3972-22, 3973-22, 3974-22, 3975-22, 3976-22, 2972-22, 2973-22, 2974-22, 2975-22, 2976-22, 3318-22A, and 3318-22B. If you are already in Milwaukee inspection equipment, this monitor is meant to drop into that setup without forcing you into a separate viewing system.
Milwaukee also notes additional general inspection capability through optional 4 foot and 10 foot borescope cables, sold separately. That gives this inspection monitor some flexibility beyond drain line viewing when you need to look into tight cavities or hard-to-reach spaces for troubleshooting and documentation.
Who should buy it? If your work involves drain line inspection, sewer diagnostics, service plumbing, or property maintenance where visual proof matters, this is the kind of tool that earns its keep by helping you see better and explain problems faster. If you do not already use compatible Milwaukee inspection cameras, the value depends on building around that system. But for existing Milwaukee inspection users, this monitor is the cleaner, more mobile way to view and document the job.
See the Line Without Being Tied to the Reel
The whole point of a wireless inspection monitor is being able to put the screen where you can actually watch it. That matters in bathrooms, utility rooms, and tight service spaces where standing right next to the reel is not always the best working position.
- Connects wirelessly with compatible M12 and M18 Milwaukee inspection cameras
- Milwaukee states wireless viewing up to 150 feet with compatible inspection cameras
Built to Make Job Documentation Easier
Finding the problem is only half the job. Being able to save images, trim video, and add notes on the monitor itself helps turn inspection footage into something useful for customers, office staff, and follow-up work.
- Supports photo capture, video, audio notes, labels, and video trimming
- Wi-Fi sharing and USB export help move files off the monitor when the job is done
What’s in the Box
- (1) Milwaukee M12 Wireless Monitor
- (1) USB-C to USB-C Cable
- Owner’s Manual
Battery and charger are sold separately.
Key Specifications
| Battery Platform | M12 |
|---|---|
| Display Size | 5.5 in |
| Length | 7.78 in |
| Height | 5.96 in |
| Width | 2.95 in |
| Weight | 2.05 lbs |
| Power Source | Cordless |
| Pack Quantity | 1 |
Compatibility
Battery PlatformWorks on the Milwaukee M12 battery system. Inspection Camera SystemsWirelessly compatible with Milwaukee M12 Compact Drain Line Inspection Cameras and the Milwaukee M18 Modular Pipeline Inspection System. Listed Compatible ModelsCompatible brand models listed by Milwaukee: 3972-22, 3973-22, 3974-22, 3975-22, 3976-22, 2972-22, 2973-22, 2974-22, 2975-22, 2976-22, 3318-22A, and 3318-22B. Optional Inspection AccessoriesMilwaukee notes optional 4 foot borescope cable 48-53-3315 and 10 foot borescope cable 48-53-3316 for added general inspection capability.
Built For
Drain Cleaning Plumbing Sewer Inspection Pipeline Inspection Service Diagnostics Property Maintenance
Pro Tip
Use the audio note and trim features right after you find the issue, before you pull the camera back. It is the fastest way to save a short, clear clip that shows the exact problem and gives the customer a record they can actually understand.
Warranty & Support
5 Year Tool Warranty.
Tool Nut’s Take
Tool Nut’s Take
Milwaukee 3971-20 M12 Wireless Monitor Makes Inspection Work Easier to Run
This is the kind of tool that helps a drain inspection go smoother because you can see clearly, document fast, and keep the screen where you need it instead of where the reel forces it to be.
- Who it’s for: Plumbers, drain cleaning pros, and service techs already using Milwaukee inspection cameras who want a better viewing and reporting setup.
- Why it stands out: The 5.5 inch HD touchscreen, wireless compatibility with Milwaukee inspection systems, and built-in reporting tools are what make this more than just another display.
- Worth knowing: This is a bare tool on the M12 platform, so battery and charger are not included, and some inspection accessories like borescope cables are sold separately.
Common Questions
- What battery platform does this monitor use? It uses the Milwaukee M12 battery system.
- Is this monitor compatible with Milwaukee pipeline inspection equipment? Yes. Milwaukee states it is wirelessly compatible with M12 Compact Drain Line Inspection Cameras and the M18 Modular Pipeline Inspection System.
- Can this monitor save and share inspection media? Yes. It supports photos, video, audio notes, labels, video trimming, Wi-Fi sharing, and USB export.
- Are borescope cables included? No. Milwaukee lists 4 foot and 10 foot borescope cables as sold separately.
