Key Features
One-Hand ControlHandle-mounted buttons put the main functions right where your thumb lands, so you can measure and manage readings without stopping or bending down to the wheel. Jobsite-Ready DisplayThe backlit IP54 screen is built for dusty, rough conditions and stays easier to read when you’re working early, late, or under overcast site light. Digital Measuring Wheel MemorySave and store up to four measurements, switch between imperial, metric, and engineer scale, and keep moving without writing every number down right away.
Overview

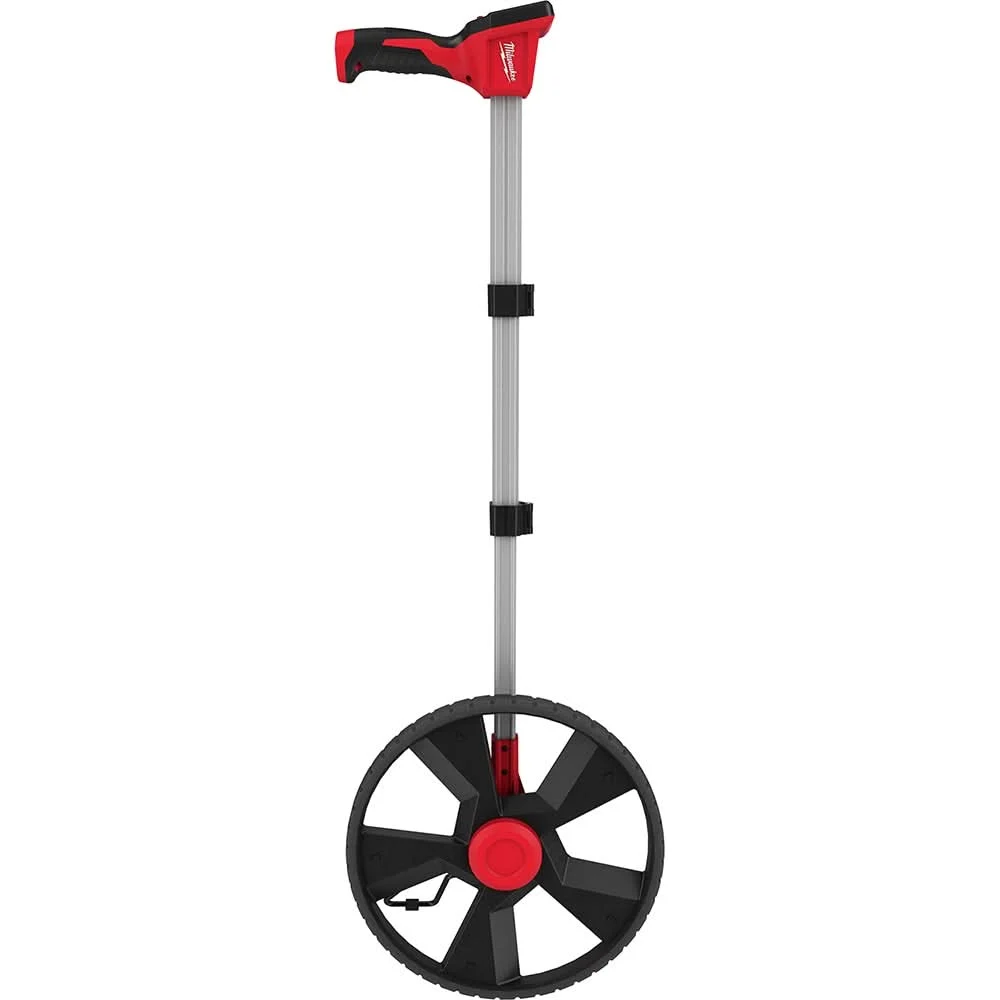

The Milwaukee 48-22-5112 12-Inch Digital Measuring Wheel is built for fast distance measuring on jobsites, site walks, and layout work where a tape measure is too short and a guess is not good enough. This is a digital measuring wheel designed for measuring long distances on construction and outdoor work sites. Model Number: 48-22-5112. If you need to check runs, mark setbacks, verify material lengths, or measure open ground without dragging a long tape, this is the kind of tool that saves time every day.
What makes this one different is how much of the control happens at the handle instead of down at the wheel or through a clumsy add-on display. Milwaukee built the controls into the handle and paired them with a backlit LCD screen, so you can start, hold, save, clear, and manage measurements with one hand. On the job, that means less stopping, less crouching, and less fumbling when you’re walking uneven gravel, dirt, or pavement.
The digital interface is not there just to look modern. It gives you useful function that a basic analog measuring wheel cannot. You can save and store up to four measurements, which is handy when you’re comparing multiple runs, checking lot dimensions, or working through several layout points before writing them down. The wheel also measures and converts in imperial, metric, and engineer scale, so it fits different workflows without making you do math in your head.
Milwaukee also paid attention to jobsite durability and portability. The LCD screen carries an IP54 rating, which matters when you’re using the tool around dust and general site mess. The telescoping frame lets you adjust height for comfortable use and collapse it down for storage in the truck, trailer, or gang box. At 3.1 lb, it stays light enough to carry around large sites without becoming annoying halfway through the day.
The 12-inch wheel size is a practical middle ground for outdoor and rough-surface measuring. It rolls smoothly over common site conditions while still keeping the tool compact enough to transport easily. The hold button can be used to brake or stop measuring, which is useful when you need to lock in a number at a precise stopping point instead of overshooting and backing up.
This Milwaukee measuring wheel runs on (2) AAA batteries, and those batteries are included, so it is ready to work out of the box. For contractors, estimators, site supers, concrete crews, landscapers, and serious DIY users measuring driveways, property improvements, or long fence runs, the value here is simple: faster long-distance measurement, clearer readout, and better control than a basic mechanical wheel.
At a Glance
12 inWheel Size IP54Display Rating 4Saved Measurements 3Measurement Units
Measure Without Breaking Stride
For open-site measuring, speed matters. This digital measuring wheel is built to let you walk the line, read the screen, and control the tool from the handle instead of stopping every few steps.
- Handle-mounted controls support true one-handed operation
- Good fit for construction layout, estimating, and site verification
See Your Reading Clearly
The display is one of the main reasons to step up to this model. A backlit LCD and simple button layout make it easier to check, hold, save, and clear readings without second-guessing what the tool is doing.
- IP54-rated screen adds durability in dusty jobsite conditions
- Saves and stores up to 4 measurements with memory function
Built for Carry, Storage, and Daily Use
A measuring wheel has to work on site and fit in the truck afterward. The telescoping frame keeps the tool usable for different heights while making it easier to store between jobs.
- Telescoping frame adjusts and collapses for storage
- Light 3.1 lb design is easier to carry around large sites
Better Control at the Stop Point
When you’re measuring to a stake, form edge, or marked corner, being able to stop cleanly matters. Milwaukee added a hold button that also brakes or stops measuring so you can lock in the number where you need it.
- Hold button helps stop the measurement at a precise point
- Measure and convert in imperial, metric, and engineer scale
What’s in the Box
- (1) Milwaukee 48-22-5112 12-Inch Digital Measuring Wheel
- (2) AAA Batteries
Key Specifications
| Wheel Diameter | 12 in |
|---|---|
| Display Rating | IP54 |
| Measurement Units | Imperial, Metric, Engineer Scale |
| Memory Capacity | Up to 4 Measurements |
| Power Source | (2) AAA Batteries |
| Weight (lbs) | 3.1 lb |
| Height | 38.2 in |
| Material | Plastic |
Built For
Construction General Contracting Landscaping Site Layout Estimating Outdoor Distance Measuring Concrete Prep DIY / Hobbyist
Pro Tip
If you’re checking several runs on the same site, use the memory function to store each leg before you move on. It is a lot faster than stopping to write every number down, and switching units on the tool helps when one plan is in feet and another is in engineer scale.
Warranty & Support
Limited Lifetime Warranty.
Tool Nut’s Take
Tool Nut’s Take
Milwaukee 48-22-5112 12-Inch Digital Measuring Wheel Gets the Small Stuff Right
This is a smart step up from a basic measuring wheel if you actually use one often enough to care about speed, visibility, and cleaner workflow.
- Who it’s for: Contractors, estimators, landscapers, site supers, and homeowners who need to measure long outdoor runs faster than a tape can handle.
- Why it stands out: The handle-mounted controls, backlit IP54 display, unit conversion, and 4-reading memory make it more useful on a real jobsite than a plain mechanical wheel.
- Worth knowing: This is built around convenience and digital control, so if you only measure once in a while a basic wheel may do the job, but for regular site work this one earns its keep quickly.
Common Questions
- What kind of tool is this? This is a digital measuring wheel designed for measuring long distances on jobsites, outdoor work areas, and layout runs.
- Can it display different measurement formats? Yes. It can measure and convert in imperial, metric, and engineer scale.
- Does it store measurements? Yes. The digital interface can save and store up to four measurements.
- What powers the wheel? It uses two AAA batteries, and the batteries are included.
- Is the display built for jobsite conditions? Yes. The backlit LCD screen is rated IP54 for durability.
