Key Features
165 ft DetectionExtends the working range of compatible Milwaukee line and plane lasers up to 165 feet, which helps when the beam is harder to see in bright indoor spaces or outdoors. Clear Feedback FastFront and rear LED feedback, plus an LCD on the front, make alignment easier from more angles so setup goes quicker when you are working alone. Jobsite Ready BuildThe Milwaukee laser line detector is IP54 rated for water and dust resistance and built for 1 meter impact resistance, which matters when layout tools ride in a truck or get knocked around on site.
Overview

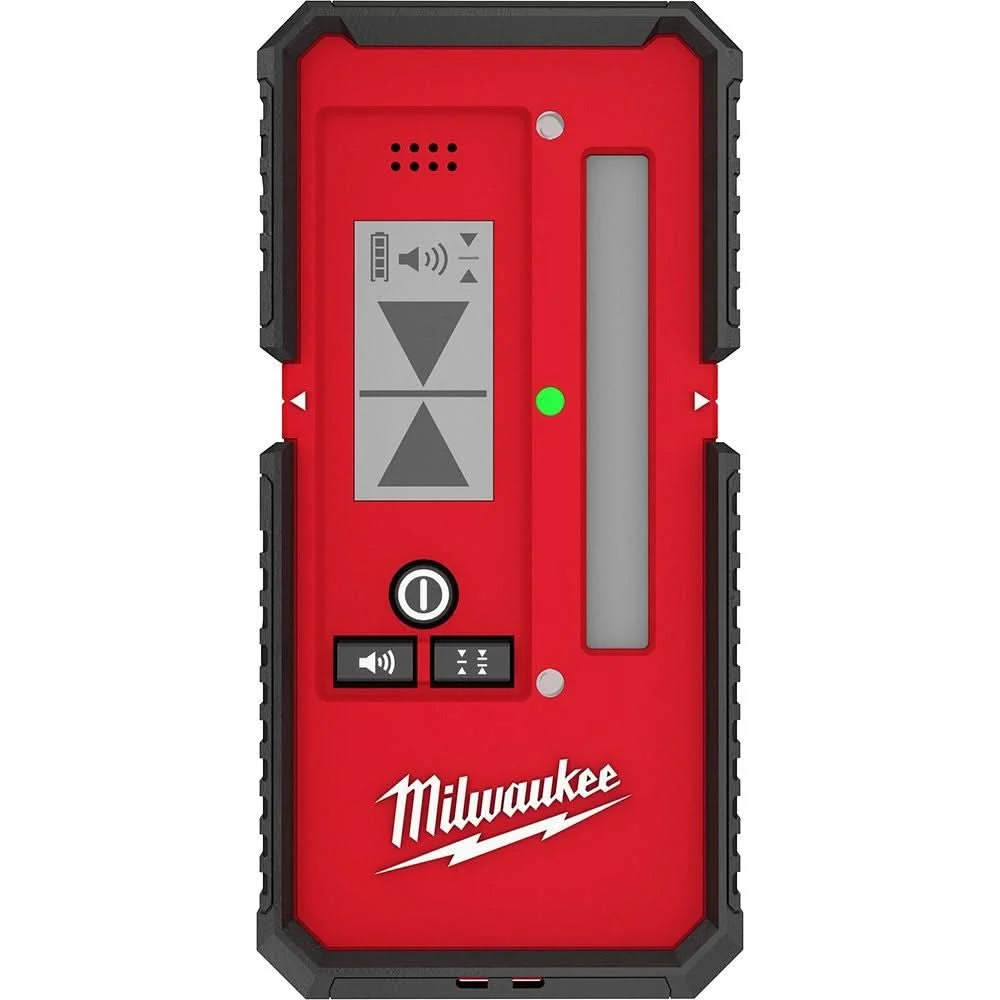

The Milwaukee 48-35-1211 165′ Laser Line Detector is a laser detector built to extend the usable range of compatible Milwaukee line and plane lasers for faster alignment and layout work. This is a laser line detector designed for point-to-point alignment, elevation setting, and laser beam detection in brighter conditions indoors or outdoors. Model Number: 48-35-1211.
The big reason to buy a detector like this is simple: when a laser line gets hard to see, work slows down. This unit pushes detection range up to 165 feet, depending on the laser source, and gives you visible feedback from both the front and back. That matters when you are setting lines across larger rooms, laying out ceiling grid, or transferring elevations where chasing a faint beam wastes time.
Milwaukee built this detector to be easy to place and easy to read. It uses LED feedback on both sides and an LCD display on the front, so you can catch alignment cues from different positions instead of constantly walking around to check the screen. Adjustable audio with high, low, and off settings gives another way to track the beam when your eyes are on the work instead of the detector.
On the hardware side, the two magnetic sides are a practical feature, not fluff. Rare earth magnets let the detector attach to metal surfaces, which is especially useful for ceiling grid installation and other layout work where you want hands-free positioning. Milwaukee also includes a material clamp for setting elevation, giving you another way to mount the detector when magnets are not the right fit.
For jobsite conditions, this unit is set up to hold its own. The molded plastic body is IP54 rated for water and dust resistance, and it is rated for 1 meter impact resistance. In plain terms, it is built for actual site use, not just clean interior punch-list work. Runtime is over 40 hours on two AA batteries, and the detector also has auto shutoff after 15 minutes to help stretch battery life.
Compatibility is one of the strongest points here. The Milwaukee 48-35-1211 165′ Laser Line Detector is made for use with Milwaukee Cross Line and Plane Lasers, with wavelength compatibility listed at 510 to 530 nanometers. If you are already on Milwaukee’s laser platform, this is the add-on that makes that system more useful on longer runs and in conditions where the beam alone is not enough.
This tool makes the most sense for contractors and tradespeople doing layout and alignment work on a regular basis. It is a smart fit for general contractors, remodelers, and crews handling suspended ceiling work or interior layout where quick beam pickup and repeatable elevation marks matter. If you already own compatible Milwaukee lasers and need more reach, better visibility, and more reliable setup in real jobsite lighting, this is the right accessory.
See the Beam When the Jobsite Won’t Help
When the laser line starts disappearing in bright conditions or at longer distances, a detector keeps the layout moving. This is the piece that lets your laser system stay useful beyond easy, close-range setups.
- Working range is listed from 15 feet up to 165 feet depending on the laser source
- Fine and coarse accuracy settings let you choose the feedback sensitivity that matches the task
Mount It Where You Need It
The detector is built for practical placement, not just handheld use. Between the dual magnetic sides and the included material clamp, you get more options for elevation setting and hands-free alignment.
- Two magnetic sides help it stick to metal surfaces for quicker setup
- Included material clamp is useful when you need controlled placement for elevation transfer
What’s in the Box
- (1) Milwaukee 48-35-1211 165′ Laser Line Detector
- (1) Material Clamp
- (2) AA Batteries
Key Specifications
| Working Range | 15 ft to 165 ft |
|---|---|
| Accuracy Settings | Fine and Coarse |
| Fine Accuracy | +/- 0.03 in at 33 ft |
| Coarse Accuracy | +/- 0.04 in at 33 ft |
| Ingress Protection | IP54 |
| Runtime | Over 40 hours |
| Power Source | (2) AA Batteries |
| Weight (lbs) | 0.58 lb |
Compatibility
Laser PlatformCompatible with all Milwaukee Cross Line and Plane Lasers. Wavelength CompatibilityDesigned for lasers in the 510 to 530 nm range. Mounting OptionsWorks with the included material clamp and can attach to metal surfaces using its two magnetic sides.
Built For
General Contracting Ceiling Grid Installation Interior Layout Elevation Transfer Remodeling Laser Alignment Work
Pro Tip
Use the coarse setting to pick up the beam faster when you are first finding the line at distance, then switch to fine when you are locking in final elevation or alignment marks. It saves time and cuts down on back-and-forth adjustments.
Warranty & Support
3 Year Limited Warranty.
Tool Nut’s Take
Tool Nut’s Take
Milwaukee 48-35-1211 165′ Laser Line Detector Makes Your Laser More Useful
If you already run compatible Milwaukee lasers, this detector is the add-on that turns a good layout setup into a more dependable one at longer range and in tougher lighting.
- Who it’s for: Contractors and layout crews who use Milwaukee cross line or plane lasers for ceiling grid, interior layout, and elevation work.
- Why it stands out: Dual-side LED feedback, magnetic mounting, included clamp, and 165-foot range are the features that save the most setup time on real jobs.
- Worth knowing: This is a detector, not a standalone laser. It earns its keep when you already have compatible Milwaukee laser tools and need better beam pickup at distance.
Common Questions
- What lasers does this detector work with? It is designed for use with Milwaukee Cross Line and Plane Lasers, with wavelength compatibility listed at 510 to 530 nm.
- How far can it detect a laser line? The listed working range is 15 feet up to 165 feet, depending on the laser source.
- Is it built for jobsite conditions? Yes. It is IP54 rated for water and dust resistance and rated for 1 meter impact resistance.
- What kind of batteries does it use? It runs on two AA batteries, and the package includes them.
