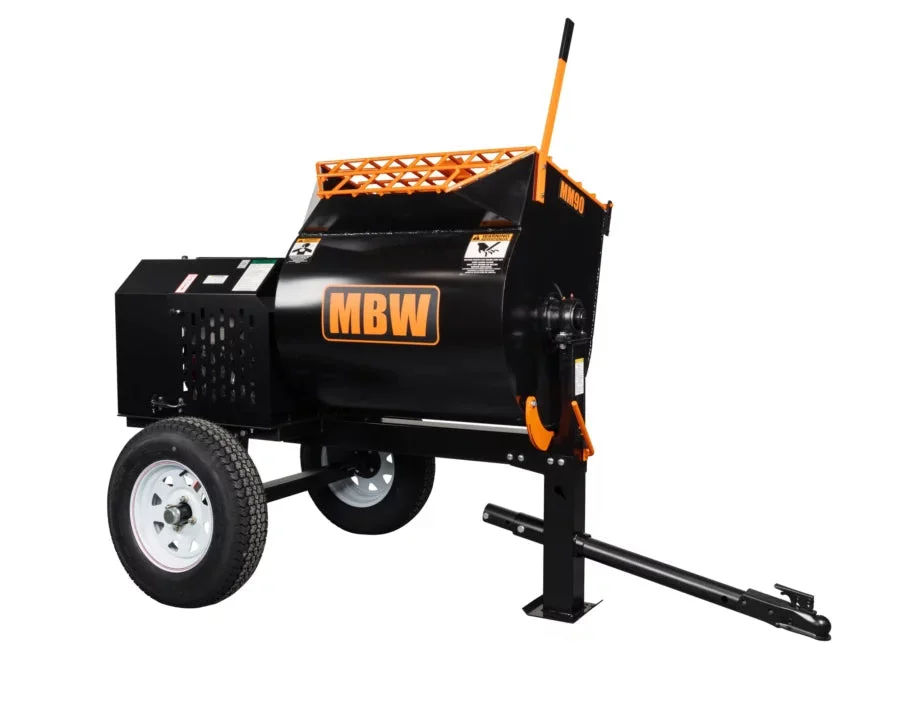

The MM90 Mortar Mixer delivers professional-grade mixing performance with a 9 cubic foot capacity and heavy-duty construction designed for demanding jobsite conditions.
Key Specifications
| Specification | Value |
|---|---|
| Batch Capacity | 9 cu. ft (0.26 cu. m) |
| Batch Size | 3 – 3.5 bags |
| Dimensions (W x L x H) | 46 x 71 x 57 in (117 x 180 x 145 cm) |
| Weight | 700 lbs. (317.5 kg) |
| Engine Option | Honda GX240 |
| Engine/Shaft Speed | 3300/39 rpm |
| Drive System | V-belts to Gear |
| Standard Axle | 46 in solid axle |
| Wheels | ST175/80D13, High-Speed |
| Drum Wrap End Plates | 10 gauge / 7 gauge |
Features
- Heavy-duty cast bull gear construction ensures extended equipment life and reliable performance
- Spring tension idler system eliminates the need for frequent belt adjustments
- Self-opening and closing grate cover improves operational efficiency and safety
- Steel paddle shaft clamps provide secure mixing paddle attachment
- Thick gauge steel construction delivers superior durability compared to lightweight alternatives
- Precision-engineered drive gears and robust frame design minimize maintenance requirements
Frequently Asked Questions
Q: What is the recommended batch size for the MM90?
A: The MM90 can handle 3 to 3.5 bags of material per batch, with a total capacity of 9 cubic feet.
Q: Does the spring tension idler system require regular adjustment?
A: No, the spring tension idler system automatically maintains proper belt tension, eliminating the need for manual belt adjustments.
Q: What type of engine powers the MM90?
A: The MM90 comes equipped with a Honda GX240 engine operating at 3300 rpm with a shaft speed of 39 rpm.
Download the Product Datasheet (PDF)
