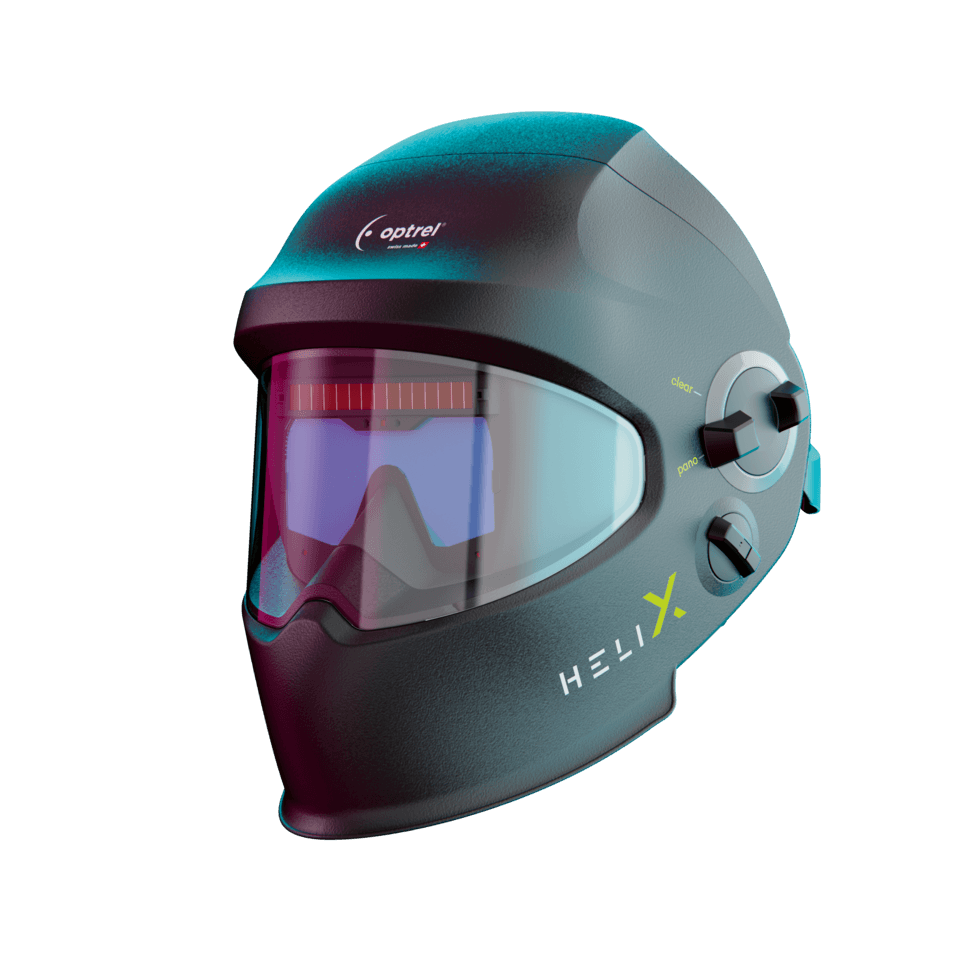

The Optrel Helix Pure Air CLT with Hard Hat is a premium slide-up welding and grinding helmet system designed for professional welders working in demanding industrial and construction environments.
Combining Crystal Lens Technology 2.0, panoramic field of view, integrated respiratory compatibility, and ANSI-rated hard hat protection, the Helix Pure Air CLT is built for high-performance welding applications requiring maximum visibility, safety, and comfort.
The helmet is compatible with the Optrel e3000X NIOSH-approved PAPR respiratory system, helping provide filtered airflow and respiratory protection during welding, grinding, and cutting operations.
Key Features
- Slide-up welding and grinding helmet system
- Crystal Lens Technology (CLT) 2.0 for true-color clarity
- Panoramic XXL field of vision
- ANSI Z89.1 Type 1 Class C removable hard hat included
- Compatible with Optrel e3000X PAPR respiratory system
- Light state shade level 2.0
- Automatic ShadeTronic® shade adjustment
- FadeTronic® fade control reduces eye fatigue
- Five-sensor arc detection system
- Rechargeable lithium-polymer battery system
- Solar-assisted charging capability
- USB rechargeable battery
- True-color viewing technology
- Lightweight ergonomic helmet design
- IsoFit® adjustable headgear system
- Suitable for welding, grinding, plasma cutting, and fabrication environments
- Designed for overhead welding applications
- Compatible with hard hat adapter systems
Crystal Lens Technology 2.0
The Helix Pure Air CLT uses Optrel’s Crystal Lens Technology 2.0, which provides an exceptionally bright light state and true-color visibility before, during, and after welding. The CLT system minimizes the green tint common in traditional welding lenses and helps improve weld puddle visibility and overall operator precision.
Panoramic Field of View
The helmet offers a panoramic XXL viewing area that provides up to 6 times the field of vision of traditional welding helmets using standard 100 x 50 mm auto-darkening filters. The patented nose cutout design positions the lens closer to the operator’s eyes for improved peripheral visibility and reduced distortion.
Slide-Up Welding & Grinding System
The integrated slide-up mechanism allows operators to switch between welding and grinding without removing the helmet. This system helps improve workflow efficiency in fabrication shops, field welding, industrial maintenance, and construction applications where frequent task switching is required.
Respiratory Protection Compatibility
The Helix Pure Air CLT is designed for use with the Optrel e3000X PAPR system, delivering filtered airflow directly into the helmet. When connected to the PAPR unit, the system helps reduce exposure to:
- Welding fumes
- Grinding dust
- Aerosols
- Smoke particles
- Airborne contaminants
The e3000X system is NIOSH-approved and supports TH3-level particle filtration.
Technical Specifications
| Specification | Details |
|---|---|
| Light State | Shade 2.0 |
| Active Shade Range | Shade 7–12 |
| Automatic Shade Range | 4<12M |
| Sensors | 5 |
| Switching Speed | 0.090 ms at room temperature |
| Delay Adjustment | 0.1–2.0 seconds |
| Power Supply | Solar cells + Li-polymer battery |
| Charging Method | Micro USB + solar assist |
| Battery Cycle Life | 300–500 cycles |
| Operating Temperature | 14°F to 131°F |
| Storage Temperature | -4°F to 158°F |
| Standards | ANSI, CE, UKCA, CSA Z94.3 |
| Weight with Hard Hat | Approx. 1180 g |
| Weight without Hard Hat | Approx. 850 g |
